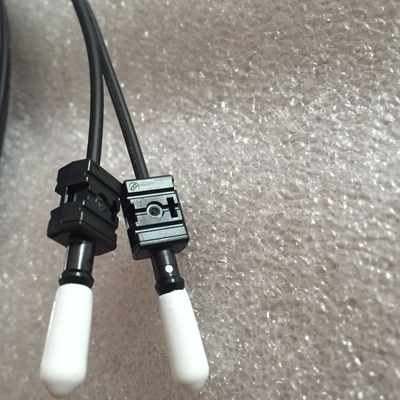

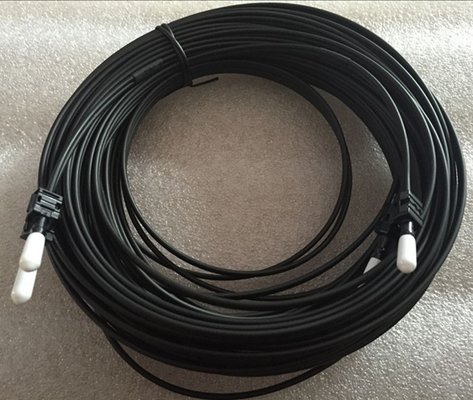

Fiber Optic Patch Cord Leads HFBR-HFBR Duplex Pof Plastic Optical Fiber Jumpers

Plastic Optic Patchcord HFBR-HFBR(4531)duplex short as POF

Four connector styles are available for termination of plastic optical fiber:

simplex, simplex latching, duplex and duplex latching. All connectors provide a

snap-in action when mated to versatile link components. Simplex connectors are

color coded to facilitate identification of transmitter and receiver connections.

Duplex connectors are keyed so that proper orientation is ensured during insertion.

If the POF cable / connector will be used at extreme operating temperatures or

experience frequent and wide temperature cycling effects, the cable/connector

attachment can be strengthened with an RTV adhesive (see plastic connectoring

instructions for more detail).

Features

• Compatible with Agilent Versatile Link Family of Connectors and Fiber Optic
• 1mm Diameter Plastic Optical Fiber
• (POF) in Two Grades: Low Cost
• Standard POF with 0.22dB/m Typical
• Attenuation, or High Performance
• Extra Low Loss POF with 0.19dB/m
• Typical attenuation

Applications

Industrial data links for factory

automation and plant control

Computer-to-peripheral data links,

PC bus extension

Intra-system links, Board-to-board,

Rack-to-rack

Proprietary LANs

Telecommunications switching systems

Digitized Video

Medical instruments

Reduction of lightning and voltage

transient susceptibility

High voltage isolation
