Product Details:
Payment & Shipping Terms:
|
Number Of Conductor: | 8 | Conductor Material: | Solid Bare Copper |
---|---|---|---|
Jacket Color: | Medium Grey/Blue/Customized | Shield: | Unshielded Twisted Pair |
Fluke Test: | As Customer Request | Marking On Jacket: | As Customer Request |
High Light: | copper fiber cable,fiber optic data cable |
Indoor 23AWG UTP CAT6 Network Lan Cable with Bare
Copper PVC/LSZH Jacket
Specification
Model | CAT6 UTP Lan Cable | |
ITEM | Construction | Parameters |
Conductor | Material | Solid Bare Copper |
Diameter(mm) | 0.57 | |
Insulation | Material | HDPE |
Diameter(mm) | 1.02~1.04 | |
Core color | 1 white-blue/blue | 2 white-orange/orange |
3 white-green/green | 4 white-brown/brown | |
Seperator | 4.2mm*0.45mm | |
Rip cord | Tex111 | |
Drain wire | 0.5mmTC | |
Sheath | Material | PVC/LSZH |
Thickness | 0.6±0.1mm | |
Diameter | 6.3±0.2mm | |
Color | Medium Grey/Black /According to the requires | |
Surface printing | Letter high | 3.0 ± 0.5mm |
Color | Black & White | |
Print error & Space | ≤± 0.5% , 1m | |
Package | Paper box | |
Box Dimensions(mm) | 430*430*235 | |
Package Length | 305m |
Construcation Draw

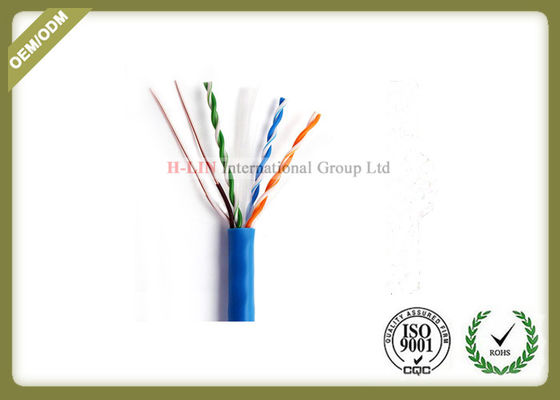

Product Show
-Application
Ethernet;100 Base-TX;ATM; Trunk Cabling;
Widely apply to network wiring structure and transmission media,such as audio,video,digital
communication,message and so on.
