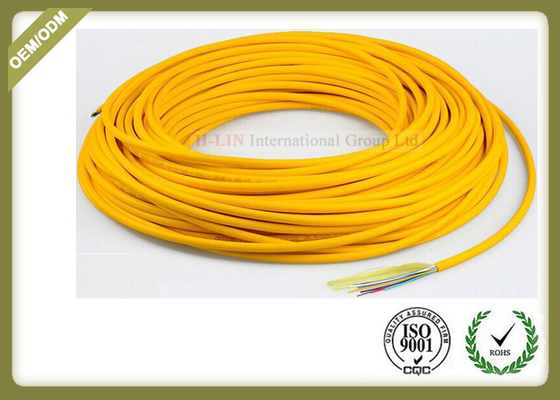

GJFJV 12C 24C 48C Indoor SM Fiber Optic Cable With Tight Buffer PVC Jacket
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Indoor Cable | Application: | Telecommunications |
|---|---|---|---|
| Core Number: | 12/24/48C | Temperatuer: | -20 Degree~+70 Degree |
| Jacket: | PVC Or LSZH | Diameter: | 6.0mm |
| High Light: | fiber optic indoor cable,armored fiber optic patch cable |
||
GJFJV 12C 24C 48C indoor SM fiber optic cable with tight buffer PVC jacket
Product Description

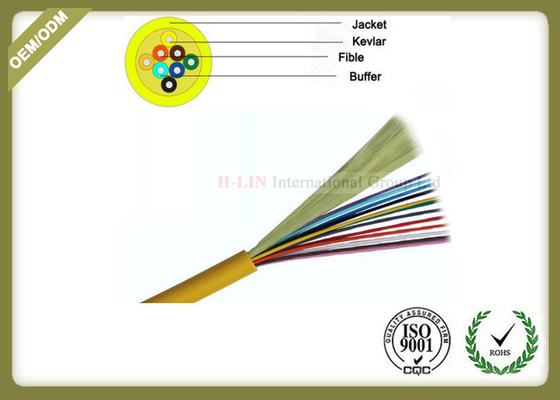

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass
yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Characteristics
Good mechanical and environmental characteristics;
· Flame retardant characteristics meets the requirements of relevant standards;
· The mechanical characteristics meet the requirements of relevant standards;
· Soft, flexible, easy to splice, and with big capacity data transmission;
· Meet various requirements of market and clients.
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Mechanical Characteristics
| Tensile Strength | Long Term | 80N | 60 | 50 |
| Short Term | 150N | 120 | 100 | |
| Crush Resistance | Long Term | 100N/100mm | 100N/100mm | 100N/100mm |
| Short Term | 500N/100mm | 500N/100mm | 500N/100mm | |
| Bending Radius | Dynamic | 20XD | 20XD | 20XD |
| Static | 10XD | 10XD | 10XD |
Applications
· Used in pigtails and patch cords;
· Used in optical connections in optical communication equipment rooms and optical distribution frames;
· Used in optical connections in optical apparatus and equipments.
Temperature range
-20℃~+70℃
Main Features
