40G Fiber Transceiver Module , Fiber Optic SFP Module 3.3V Power Supply


Description:

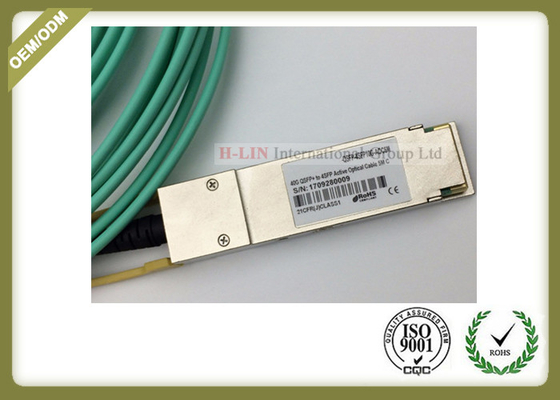

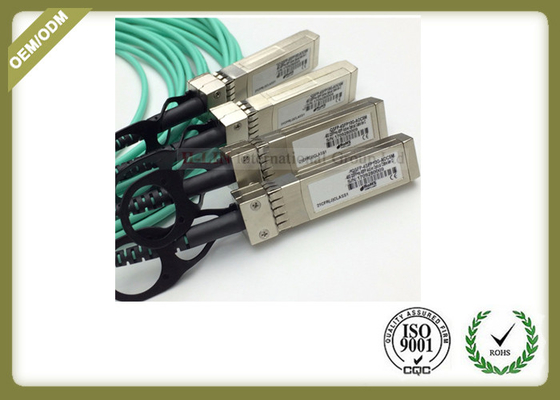

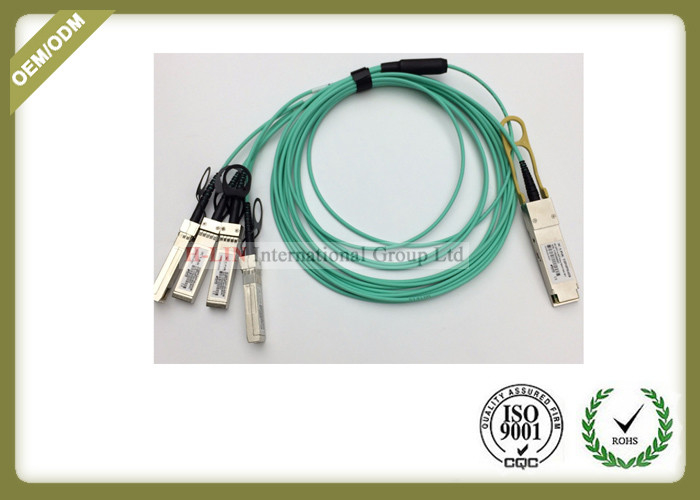

40G QSFP to 4x10G SFP+ Fiber Cable

QSFP to 4x SFP+ Splitter Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.

For typical applications, users can install this splitter cable between an available QSFP port on their 40 Gigabit/s rated switch and feed up to four upstream 10GbE-SFP+ enabled switches.Each QSFP-SFP+ splitter cable features a single QSFP connector (SFF-8436) rated for 40-Gb/s on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.

Specification

4 independent full-duplex channels
Up to 12.5Gbps data rate per channel
QSFP MSA compliant
Up to 100m transmission
Operating case temperature: 0~70C
Single 3.3V power supply
Typical 0.8W operation power each terminal
RoHS compliant
Infiniband SDR/DDR/QDR
2/4/8 G Fiber Channel

H-LIN's revolutionary 1m QSFP to 4x SFP+ Splitter Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.For typical applications, users can install this splitter cable between an available QSFP port on their 40-Gigabit/s rated switch and feed up to four upstream 10GbE-SFP+ enabled switches. Each QSFP-SFP+ splitter cable features a single QSFP connector (SFF-8436) rated for 40-Gb/s on one end and 4x SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.

H-LIN is the manufacturer of QSFP to 4 SFP+ Splitter Cables that designs and sources every subassembly in-house guaranteeing complete control over product performance, quality and consistency. Examples include our widely respected board-as-connector platform which is direct-welded to the wire and encased in a robust Zinc-Nickel backshell for superior crosstalk and EMI performance. Cable available in 1m (3.3ft), 2m (6.6ft), 3m (9.8ft) & 5m (16.4ft) lengths to accommodate your installation requirements.

Product Features

*QSFP to 4x SFP+ Splitter Cable - 5m (LSWM1QSTK5)
*Connector A: QSFP 40.0 Gb/s Rated Connector (SFF-8436 Compliant)
*Connector B: 4x SFP+ 10.0 Gb/s Rated Connectors (SFF-8431 Compliant)
*Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch
*Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fibre Channel
*Up to 10.3125 Gb/s transfer rate per SFP+ channel (40 Gb/s aggregate)
*Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching

*Bridge the gap between your 10G and 40G capable switches/host adapters
*Low cross-talk and pair-to-pair skew maintains signal integrity
*Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
*Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
*Designated form factor and electrical compliance for QDR InfiniBand
*The perfect direct attached storage splitter cable for Fibre Channel & SAS
*Enjoy a reduced power budget and lower port cost compared to optical
*Fully RoHS compliant for environmental protection

QSFP+ AOC Specifications
