Product Details:
Payment & Shipping Terms:
|
Conductor: | Solid Bare Copper | Channel Bandwidth: | 600/500/250/100MHz |
---|---|---|---|
Connector: | RJ45 Plug | Transmission Speed: | 10G/1000BASE-T |
Color: | Red,blue Or Yellow As Customerized | Shield: | UTP/FTP/SFTP |
Highlight: | internet patch cable,data patch cord |
CONSTRUCTION
1. Conductor:24/26 AWG Stranded BC
2. Insulation:Solid polyolefin.
3. Cabling:4 twisted pairs cabled around a cross shaped central filler into the cable core.
4.Shielding:Aluminum Mylar Spirally Wrapped(FTP)
5.Braiding:TC/Aluminum Magnesium alloy Solid(SFTP)
6.Jacket:PVC/FR-PVC/LSOH
COMPLIANCE WITH
1. ISO/IEC 11801
2. TIA/EIA-568-B.2
3. IEC-60332-1
4. UL 444 (CM/CMR/CMP grade)
5. RoHS

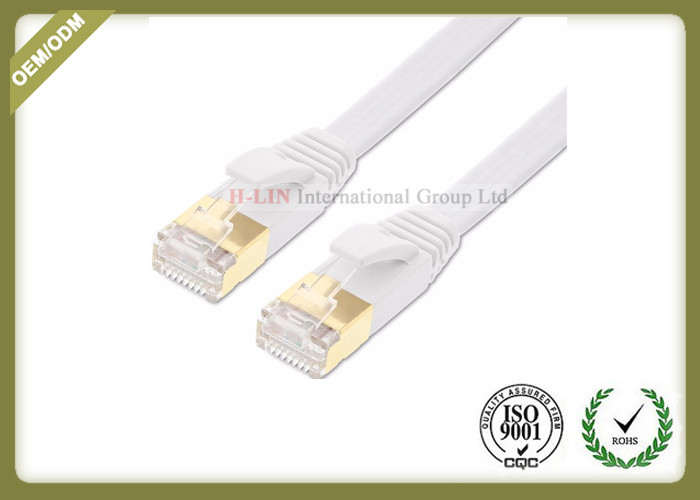

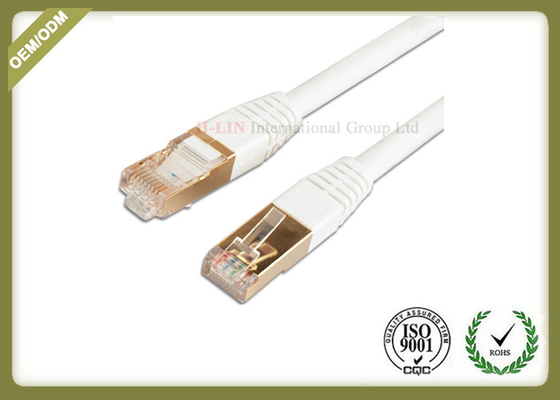

Item | CAT5E/CAT6/CAT6A/CAT7 ethernet patch lead cable |
Conductor | BC/CCA (optional) |
Version | CAT5E/CAT6/CAT6A/CAT7 |
Shielding | UTP/FTP/SFTP(SSTP) |
Insulation | HDPE |
Jacket | PVC/PE |
Number Of Conductor | 4Pairs |
AWG | 24/26/28 |
Data transfer rate | 10G/1000Base-T |
Rated temperature | 75 ° C |
Certificates | CE, RoHS, Fluke test passed |
Application | Computer and other Internet devices |
Packaging | PE bag/Blister bag/Carton box etc |
Customizing | Color of PVC jacket, words on cable & packaging customized on customers' request |
Application:
Quality Gurantee:
Operator self check, inspector full check, IPQ process sampling, QA shipment test.
100% appearance test, both ends of each line of injection molding are visually fully checked, and burrs, defects, impurities and indentation are all reworked, and will not flow into the next process.
100% electrical test, after wearing crystal head and injection molding, two electrical tests are conducted to ensure all electrical conductivity.
Crystal head gold depth tester, crystal head rivet after the depth of gold detection, the accuracy of 0.01 to make the quality more assured.
Us authoritative FLUKE test, FLUKE testing for finished products, the most authoritative testing, strong guarantee of quality.
