Payment & Shipping Terms:
|Fiber Type:||8ore /12core OM3||Cable Color:||Aqua|
|Jacket:||PVC Or LSZH||Length:||1m,2m,3m,5m ,10m Or As Requested|
fiber optic pigtail,
fiber optic patch cables

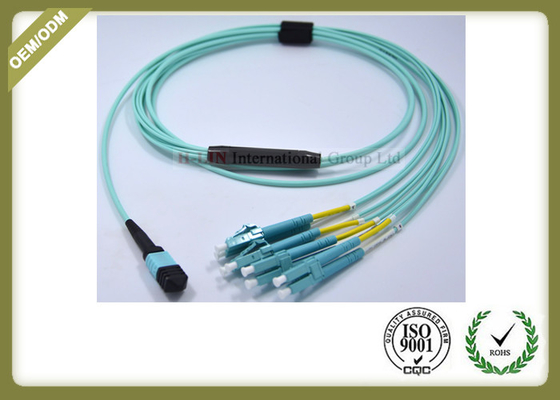

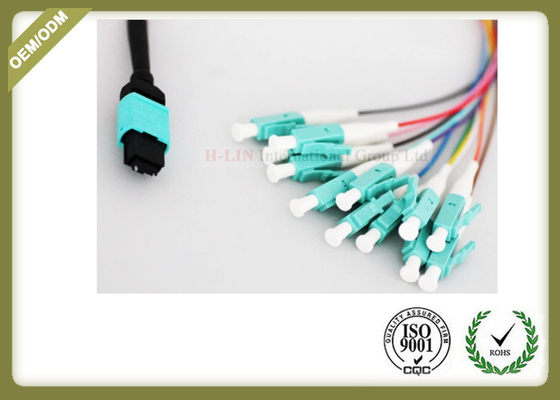

OM3 8core 12core MPO multi core fiber optic patch cord to LC termination
MPO optical fiber jumper refers to all kinds of optical fiber jumpers that can be produced after MPO connectors and fiber optic cables are processed. The MPO jumper can be designed with a 2~12 core, which can be up to 24 cores, and the 12 core MPO connector is the most widely used. The compact design of the MPO connector makes the MPO jumper core numerous and small. MPO fiber jumper is widely used in the wiring process, which requires high density integrated optical fiber line environment, FTTX and 40/100GSFP, SFP+ and other transceiver modules or devices inside and outside connection applications.
Models of MPO fiber jumper
MPO optical fiber jumper is divided into MPO trunk optical fiber jumper and MPO branch optical fiber jumper according to application. MPO backbone optical fiber jumpers are permanent connections to MTP/MPO modules, which can flexibly change the connection form in fiber optic panels. The MPO branch optical fiber jumper provides a transition between multi fiber jumpers and single optical fiber jumpers or duplex connectors. These optical fiber jumpers provide various applications for all networks and devices that require 100G modules, including CFP, CFP2 and CFP4 series. The MPO fiber jumper is divided into connection type and non connection type according to the connection type, and there are various kinds of MPO fiber jumper lines. There are banded MPO fiber jumper line and bundle like MPO fiber jumper. Through the MPO fiber jump line of the branch (round or square) fan out, the branch of the 2~24 core 0.9 or 2 fiber cable can be transferred. The connection head type is specified by the customer. Optional FC, LC, SC and ST types, and all kinds of MPO optical fiber jumpers are in line with Telcordia-GR-326, IEC standards and Rohs requirements.
MPO Dustless workshop
We use the dust-free workshop. Every worker needs to go through the dust-free process before going to work to ensure the quality of the products.
MTP / MPO Termination:
|Fiber count||4,8,12, 24 etc.||4,8,12, 24 etc.||4,8,12, 24 etc.|
|Fiber type||G652D,G657A1 etc.||G652D,G657A1 etc.||OM1,OM2,OM3 etc.|
|Maximum Insertion Loss||
|≤0.35 dB||≤0.70 dB||≤0.35 dB||≤0.70 dB||≤0.35dB||≤0.50dB|
|Return Loss||≥55 dB||≥45 dB||≥20 dB|
|Durability||≥200 times||≥200 times||≥200 times|
|Operating Temperature||-40°C ~ +80°C||-40°C~ +80°C||-40°C ~ +80°C|
Application of MPO fiber jumper
1. LAN wiring between different buildings in Enterprises
2. Optical link interconnection in optical active devices
3. The wiring in the communication base station and the wiring in the wiring box
4, residential area, industrial park room, commercial building room light signal connection
5. Building dense wiring system
6, optical fiber communication system, CATV network, telecommunication network 5, building intensive wiring system.
7. Local area network (LANs), wide area network (WANs), FTTx
8. LAN wiring between different buildings in Enterprises
9. Optical link interconnection in optical active devices
10. The wiring in the communication base station and the wiring in the wiring box
11, residential area, industrial park room, commercial building room light signal connection
12. Building dense wiring system
13, optical fiber communication system, cable television network, telecommunication network.
14. Local area network (LANs), wide area network (WANs), FTTx
