Insert Type 2 - 8 Wavelength Division Multiplexer CWDM MUX / DEMUX
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Splitter Packing: | ABS | Size: | 100*130*25mm |
|---|---|---|---|
| Connector: | LC | Operating Temperature (℃): | -40~85 |
| Color: | White | Fiber Type: | SMF-28e |
| High Light: | fiber optic cable splitter,optical plc splitter |
||

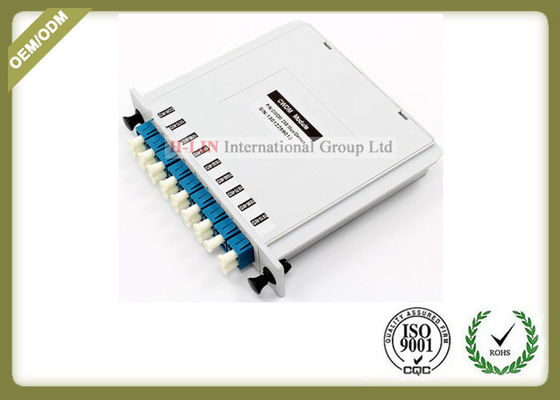

Insert Type Module 2 to 8 wavelength division multiplexer CWDM MUX/DEMUX
Description:
This one Inserte PLC spliter is a LGX box package, which encapsulates 2 1*8 coarse wave division multiplexers in a plug box, the size of which is 100*130*25mm, that is, the 1*8CWDM MUX/DEMUX is installed in the LGX cassette, and the corresponding fiber adapter is installed on the LGX box. The maximum capacity of each channel of the WDM is 2.5G, and the wavelength of all the coarse wavelength division multiplexers can be selected at 18 wavelengths at the wavelength of 1270~1610nm every 20nm. The coarse wavelength division multiplexer is suitable for service access types, such as PDH, ATM, SDH (STM-16/STM-4/STM-1), SOTRT (OC-48/OC-12/OC-32), Ethernet 10/100BaseT, GE, FICON/ESCON/FIBER ChanTRl and other access services. The product conforms to ITU-T G.695 standard, YD/T 1327-2004. We also provide a complete set of coarse wavelength division multiplexer system, including SFP module, optical transceiver and so on.
Parameters
| Technical specifications | |||
| Parameters | Indicators | unit | |
| Public end | Full band (1260~1610) | nm | |
| MUX/DEMUX Transmission center wavelength | 1270,1290,1310……1590,1610(±6.5) | nm | |
| MUX/DEMUX channel Insertion loss | ＜3.0 | dB | |
| Isolation | Non adjacent channel | ≥30 | dB |
| Adjacent channel | ≥40 | dB | |
| RL | ＞50 | dB | |
| Temperature sensitivity | ＜0.005 | dB/℃ | |
| Polarization mode dispersion loss | ＜0.10 | dB | |
| Polarization mode dispersion loss | ＜0.10 | Ps | |
| Directional | ≥50 | dB | |
| Maximum injection power | 300 | mW | |
| working temperature | -20～+70 | °C | |
| Storage temperature | -40～+85 | °C | |
| fiber type | SMF-28e | ||
| Package size | 1x8CWDM Mux and Demux LGX cassette | 100*130*25mm,white | mm |
| LGX cassette panel fiber adapter type | SC OR LC | / | |
Features
Good working bandwidth
Optical fiber communication system.
Low loss
Optical instruments
High channel isolation
Application
Optical amplifier
High stability and high reliability
Transmission and fiber laser
Optical path free process
System monitoring procedures
