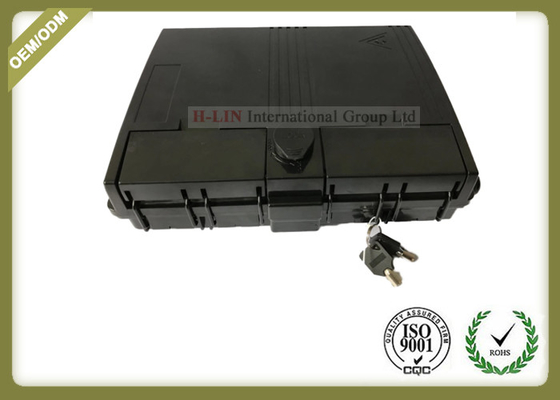

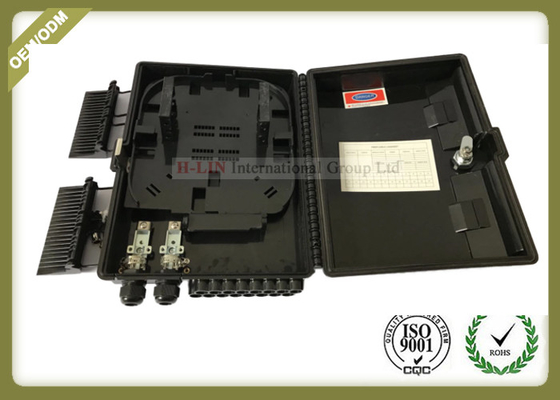

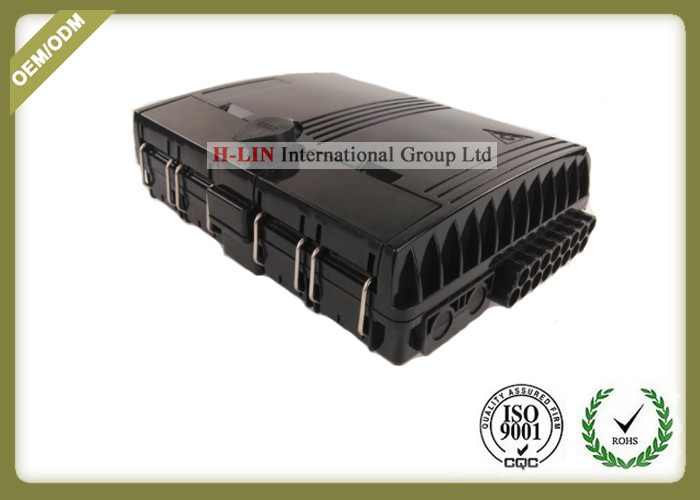

Black ABS Fiber Optic Termination Box Support Both Mechanical And Fusion Splicing
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | FTTH System | Material: | ABS Plastic |
|---|---|---|---|
| Port:: | 16 | IP Grade: | IP65 |
| Color: | Black | Size: | 33X30X12cm |
| High Light: | optical fiber termination box,fiber termination cabinet |
||
16ports outdoor fiber optic junction terminal box waterproof plastic optic distribution box
Description:
16ports outdoor fiber optic junction terminal box waterproof plastic optic distribution box is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber ,the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network
Features
- Rainfall resistant, IP66 outdoor using
- Nonmetallic material,Industry Standard User Interface, be made of high impact plastic
- Compacted wall mount type and pole mounting application
- Simple and clearly arranged incoming and outgoing cable management
- Higher fiber count capacity box is available upon request
- Easy maintenance ,easy access with front door
- Support both mechanical and fusion splicing
- Low cost solution with high protection for the terminated fibers
- Up to 16 FTTH drops,Can accommodate 1x4.1x8,1X16,2x4.2x8 & 2x16 PLC splitter
- inlet ports,16 outlet ports with 16pcs SC,LC,ST,FC adapters
- Customized design product is available upon request
Applications
- FTTX Systems
- Telecommunication Networks
- PON Networks
- Data communications Networks
- Fiber Optic Termination
- Local Area Networks
- CATV
Specification
· Wall Mounted termination box for indoor/outdoor use
· Up to 1 Fiber capacity SC Simplex
· Available for SC Simplex Adaptors
· Available install 1x4.1x8,1X16,2x4.2x8 & 2x16 Mini type PLC Splitters as required
Dimensions
| Description | 16core outdoor terminal box |
| Dimensions (WxDxH) | 33x30x12cm |
| Splice Capacity | 16Cores |
| Cable Port | 16ports |
| Color | Black |
| Main Body Material | Plastic: ABS+PC |
| Weight | 2kg |
| No of Products (pcs/carton) | 10pcs |
| Dimension of outer carton (cm) | 55*36*62 |
| G.W of outer Carton (kg/carton) | 18kg |
| Installation Type |
Wall /Pole Type Outdoor |
