Low Power Consumption 10G Media Converter XFP - XFP Interface Type

China Low Power Consumption 10G Media Converter XFP - XFP Interface Type supplier

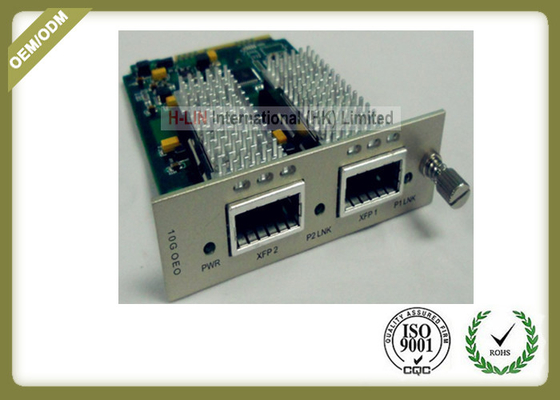

Large Image :  Low Power Consumption 10G Media Converter XFP - XFP Interface Type

Product Details:

Place of Origin: China
Brand Name: H-Lin
Certification: CE,Rohs,FC
Model Number: 10G XFP TO XFP

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiable
Packaging Details: 1pc a carbon box
Delivery Time: 3~4working days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000 Piece/Pieces per Week
Detailed Product Description
Transmission Rate: 10G Interface Type:: XFP TO XFP
Dimension: 115mm ( W ) × 78mm ( D ) Type: Card Type
Operating Wavelength: 8: 850nm,1310nm,1490nm,1550nm Key Words: Optoelectronic Oscillator,OEO Converter
High Light:

optical media converter


sm to mm fiber media converter

Media converter Managed Card type 10GE with two XFP ports. Conversion of 10G-BASE-FX / 10G-BASE-FX

Standalone 10G OEO Converter (3R Repeater) with SFP+ to SFP+ Slot, XFP to XFP Slot, SFP+ to XFP Slot optional , which uses optical -electricity – optical conversion principle to realize optical signal regeneration , enabling of the optical signal amplification and regeneration , re-timing, and wavelength conversion , with coarse / dense wavelength division multiplexing together to realized WDM transmission . It is now possible to quickly improve communication capacity , expand the bandwidth on present network , while using low-cost, high cost-effective solutions to manage and run the system , easy operation .

10G OEO Converter is a high performance,low power consumption optical transmission system. It is based on the principal of optical - electrical - optical conversion to regenerate the optical signal, which can realize the optical signal regeneration and amplification, and wavelength conversion. It can realize the WDM transmission when used together with CWDM/DWDM Mux/Demux. It can improve the communication capacity and bandwidth, and use low cost high performance solutions to manage and operate the system, which is easy to manage and maintenance.


IEEE802.3 Ethernet standard
IEEE802.3u Fast Ethernet standard
IEEE802.3d Spanning Tree
Key Features


  • Support 2U Rack(16 Slots) and independent use
  • Support network management (Web SNMP, Console)
  • Support in-band management
  • Support ITUT prescribed DWDM/CWDM wavelength
  • 3R function
  • Support Jumbo Frame
  • Transparent Transpor and very low delay
  • Support DMI function for SFP+/XFP fiber module
  • Support Loopback test function
  • Support PRBS Generator and checker
  • Support hot plugging
  • Full State Led display
  • Easy installation

Technical Specifications:



Performance Data Technical Indexes
Equipment function 3R Repeater
Transmission Speed 10Gb/s ( 9.95Gb/s-11.35Gb/s )
Protocols IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM)
Access Type 10G LAN/ 10G WAN
Interface Type

Type A: SFP+ To/From SFP+

Type B: SFP+ To/From XFP

Type C: XFP To/From XFP

Transmission Distance

SFP+ module: Up to 80Km

XFP module: Up to 80Km

Maximum Packet

Forwarding Rate


Network management


• Card type information

• SFP+ or XFP fiber module detection

• SFP+ or XFP fiber module DMI function ( Temperature , Voltage , Optical power )

• Link status detector

• Enable/Disabled Loopback test function

• Enable/Disable PRBS Generator and checker function

• Rate select ( 10Gbase-Lan or Wan )

• Remote card's status monitor ( only in pairs )

power requirement

Rack-mountable : AC 85 220V OR DC -48V

Standalone: AC 220V OR DC -48V

Power consumption: 6W

Work Environment

Operating Temp: 0~ 50

Storage Temp: -10~ 70

Humidity: 5%~90% ( non-condensing )


Card : 115mm ( W ) × 78mm ( D )

Standalone : 156mm ( W ) × 128mm ( D ) × 32mm ( H )


Description Remark
10G OEO Converter (3R Repeater) SFP+ TO SFP+
10G OEO Converter (3R Repeater) SFP+ TO XFP
10G OEO Converter (3R Repeater) XFP TO XFP
