10 / 100 / 1000M Fiber Optic Media Converter External Power With 1 SFP Slot RJ45 Port

China 10 / 100 / 1000M Fiber Optic Media Converter External Power With 1 SFP Slot RJ45 Port supplier
10 / 100 / 1000M Fiber Optic Media Converter External Power With 1 SFP Slot RJ45 Port supplier 10 / 100 / 1000M Fiber Optic Media Converter External Power With 1 SFP Slot RJ45 Port supplier 10 / 100 / 1000M Fiber Optic Media Converter External Power With 1 SFP Slot RJ45 Port supplier

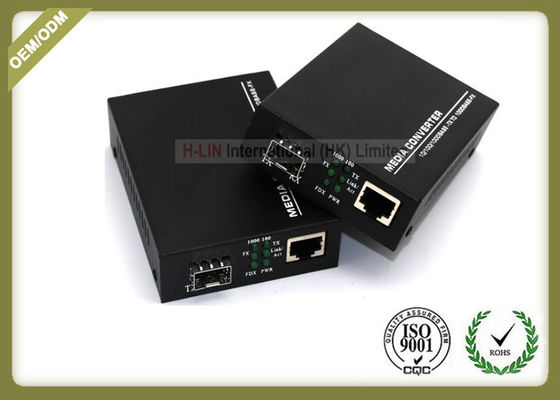

Large Image :  10 / 100 / 1000M Fiber Optic Media Converter External Power With 1 SFP Slot RJ45 Port

Product Details:

Place of Origin: China
Brand Name: H-Lin
Certification: CE,Rohs,FC
Model Number: HL-MD-SFP

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiable
Packaging Details: 20pcs,30pcs,40pcs,50pcs or 60pcs one carton for option
Delivery Time: 3~4working days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000 Piece/Pieces per Week
Detailed Product Description
Type: SFP Fiber Media Converter Data Rate: 10/100/1000M
Fiber Type: SM Power Supply: External Power Supply
Certification: CE,Rohs,FC Fiber Port: SFP Port
Network Port: RJ45 Port Connector Type: LC
High Light:

optical media converter

,

sm to mm fiber media converter

10/100/1000M Fiber Optic SFP Media Converter with 1SFP Slot RJ45 Port with External Power







Description:



The series of Ethernet optical transceivers can convert the twisted pair signal and optical fiber signal of Ethernet to each other through SFP optical fiber module. The transmission distance of the network can be extended from 100 meters to 120 kilometers. The interconnection between HUB, SWITCH, servers, terminals and remote terminals can be easily realized. SFP Ethernet fiber transceiver is plug-and-play, which can be used by a single computer or integrated with multiple computers in the same chassis. At the same time, SFP module can be hot-plugged to facilitate users to adjust and replace at any time according to the actual situation.


Fiber-optic transceivers have six LED indicators that display the working state of the transceiver. According to the LED, it is possible to determine whether the transceiver is working properly and what problems it may have, thus helping to identify the faults. Their functions are as follows:
PWR: the light indicates that the DC5V adapter works normally.
FX100: light indicates that the optical fiber transmission rate is 100Mbps.
FXLink / Act: The light often indicates that the optical fiber link is connected correctly; the light flashing indicates that there is data transmission in the optical fiber;
Fdx: the light indicates that the optical fiber transmits data in full duplex mode.
TX100: the light indicates that the twisted pair transmission rate is 100Mbps.
The light does not indicate that the transmission speed of twisted pair is 10Mbps.
TX Link / Act: A light often indicates that the optical fiber link is connected correctly; a light flash indicates that data is being transmitted in the optical fiber.



The Gigabit Adaptive Transceiver with a Gigabit SFP port and a RJ45 port can meet the needs of users.
Choose different Gigabit SFP modules (1000Base-T, 1000Base-SX, 1000Base-LX, etc.). Modules include Gigabit single mode single fiber / Gigabit single mode dual fiber / Gigabit multimode dual fiber.





Technical Specifications :



Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical Media Converter

Number of Network Ports 1 channel
Number of Optical Ports 1 channel
NIC Transmission Rate 10/100/1000Mbit/s
NIC Transmission Mode 10/100/1000M adaptive with support for automatic inversion of MDI/MDIX
Optical Port Transmission Rate 1000Mbit/s
Operating Voltage AC 220V or DC +5V
Overall Power <3W
Network Ports RJ45 port
Optical Specifications

Optical Port: SC, LC (Optional)

Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um

Wavelength: Single-Mode: 1310/1550nm

Data Channel

IEEE802.3x and collision base backpressure supported

Working Mode: Full/half duplex supported Transmission Rate: 1000Mbit/s

with error rate of zero




Key Features



Fiber-optic transceivers can be used anywhere in the network to integrate updated technologies with existing devices, and fiber-optic transceivers can extend existing cables.

Simple design, high reliability and low power consumption.
The modular structure design can be concentrated on the power supply rack.
A SFP socket is provided, and SFP module can be selected freely to realize single / multi mode and different transmission distance.
Support hot swap, plug and play;
Ultra low delay data transmission, network protocol transparent transmission;
It supports store and forward mode, and supports ultra long packets, up to 9720 bytes, with built-in 128K buffer.
Support IEEE802.1Q, support cross switch VLAN, TRUNK;
Port supports Auto-MDI/MDIX auto flip.
Support IEEE802.x, port traffic and back pressure control and secure user authentication;
Support port VLAN, port mirroring. IPV6 port mirroring traffic 4K, Trunking based on MAC;
Automatic link effective transfer, dual Tagging/QinQ;
Support generation number and loop detection, IGMP, MLD;
It has the function of link alarm (LFP) to automatically detect the link interruption when any port in the link is disconnected.
The built-in lightning protection circuit can greatly reduce the damage caused by lightning induction.
The average no fault working time is more than 50 thousand hours.





Application



FTTH System

Apartment to building

Monitoring and spy system





Detailes:



High quality chip, photoelectric integrated module transmission faster and more stable





10 / 100 / 1000M Fiber Optic Media Converter External Power With 1 SFP Slot RJ45 Port





Double ventilation design ensures good chip operation.





10 / 100 / 1000M Fiber Optic Media Converter External Power With 1 SFP Slot RJ45 Port
