2M Multimode Fiber Optic Patch Cord Dual Core 50 / 125 With Orange Color

China 2M Multimode Fiber Optic Patch Cord Dual Core 50 / 125 With Orange Color supplier
2M Multimode Fiber Optic Patch Cord Dual Core 50 / 125 With Orange Color supplier 2M Multimode Fiber Optic Patch Cord Dual Core 50 / 125 With Orange Color supplier

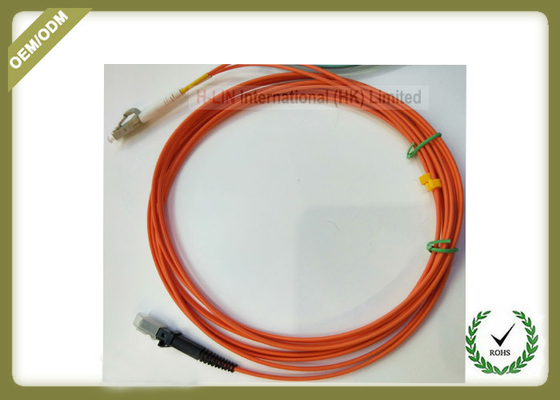

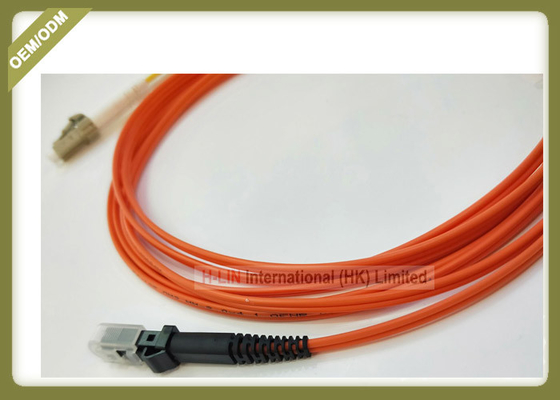

Large Image :  2M Multimode Fiber Optic Patch Cord Dual Core 50 / 125 With Orange Color

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: MTRJ patchcord

Payment & Shipping Terms:

Minimum Order Quantity: 20 Piece/Pieces
Price: negotiable
Packaging Details: 1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Delivery Time: 5days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Day
Contact Now
Detailed Product Description
Fiber Type: MM Cable Color: ORANGE
Jacket: PVC Or LSZH Length: 1m,2m,3m,5m ,10m Or As Requested
Fiber Mode: 50/125 Connector: MTRJ-LC
High Light:

fiber optic pigtail

,

fiber optic patch cables

LC-MTRJ multimode dual core optical fiber jumper 2 M optical fiber jumper 50/125 orange color

MTRJ to LC Fiber Optic Patch Cord with LSZH





Product Description:





Optical fiber jumper / pigtail is the largest and most basic component in optical fiber communication system. There are many kinds of hopping wires composed of different connector types and different types of optical cables. They are widely used in optical communication networks such as FTTx, MAN, WAN, CATV network, and active equipment debugging and testing. H-LIN has set up a jumper processing base since 2005. In addition to providing various types of connectors and corresponding adapters, it can also process different types of optical cables into jumpers, single-core, double-core, multi-core, bundle or strip, with strict curing time and temperature control and strict testing standards. On the basis of accurate and rigorous quality inspection methods, nearly 12 years of professional experience, more than 300 enterprises at home and abroad to provide high-quality and low-cost jumper products, products meet Telcordia-GR-326, IEC standards and RoHS requirements. Transfer jumper can be FC-LC, FC-SC, FC-ST, FC-MU, FC-DIN, single-core jumper or double-core jumper, single-mode jumper or multi-mode jumper, etc., at the customer's option.




Features:



High quality core inserts
Low insertion loss and high return loss.
Optical link interconnection in optical active devices
Good interchangeability and durability
There are many kinds of jumpers for choice.






Applications:





LAN wiring between different buildings of an enterprise

Light signal connection in residential area, industrial area room and commercial building
Production and testing of optical devices

Wiring in communication base, wiring in distribution box.
Optical fiber communication system, cable television network, telecommunication network.
Metropolitan area network, Wan, FTTx




Mark:


1: All our patchcord use Sanhuan ceramic ferrule,with brand new Changfei or Corning fiber as customer requested.
2: The connector of patchcord can be with different color boot.
3: Jacket of cable can be marking description as requested.
4: For special marking cable,MOQ is 1km

5: The label of patchcord also can be made as customer's requirement.





Specifiaction:





Item specification
Connector type mtrj /LC
Fiber type MM
Operating wavelength 850nm,1300nm
Test wavelength 850nm, 1300nm
IL Typical≤0.20dB,Max≤0.30dB
RL UPC≥50.0dB,APC≥60.0dB
Repeatablity ≤0.10dB
Exchangeability ≤0.20dB
Endurance Insert pull 1000 times the typical change value is less than 0.20dB
Working temperature -20℃to +70℃
Storage temperature -40℃to +85℃











Fiber type Cable type Connector color Boot diameter Boot color Polising Length
SM: 9/125μm SX Beige 0.9mm Beige UPC as request
MM: 50/125μm DX blue 2.0mm blue APC
MM: 62.5/125μm 4C Green 3.0mm Green
MM: OM3/150 6C             aqua
MM: OM3/300 8C             white
MM: OM3/550 12C              black
  24C               red
