Port: | 4GE+WIFI | LAN Interface:: | 4*10/100/1000Mbps |
---|---|---|---|
Optical Interface: | 1 EPON Interface, SC Single Mode/single Fiber | Wavelength: | Tx 1310nm,Rx1490nm |
Dimension: | 130*107*31mm(length*width*highth) | Net Weight: | 0.2kg |
Highlight: | optical media converter,network media converter |
Introduction

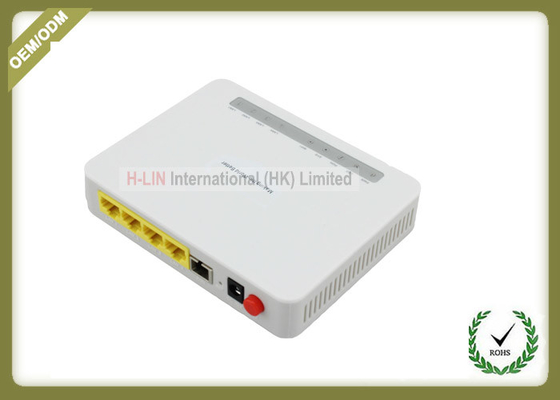

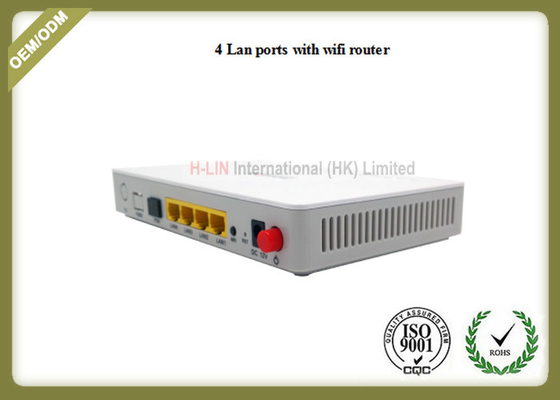

GPON ONT/HGU is designed for FTTH and networking service providers. HL-4GE+WIFI is developed by H-LIN based on the Gigabit GPON technology, has a high cost performance, it supports the 802.11n wireless networking technology(T/R). It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom, China Unicom.
Characteristics
Main service: 4GE+WIFI
★ Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
★ Integrate OMCI and TR-069 remote configuration and maintenance
★ Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
★ Support diagnostic monitoring and remote disabling of fiber optical
★ Compatible with Huawei,ZTE and Fiberhome OLT
★ Support 802.11n WiFi(T/R)function
★ Support NAT and firewall function
★ WAN support networking bridge, router and bridge/router mixed mode
Specification
Technical items | Descriptions |
Fiber port | 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Fiber interface | SC/PC |
RX sensitivity | <-28dBm (1490nm) |
WLAN | IEEE802.11b/g/n,300Mbps, a built-in antenna |
LAN | 4*10/100/1000Mbps adaptive ethernet ports, full/half duplex, RJ45 interface |
DC power | 12V 1A, external AC-DC power adapter |
Button | Reset, power, WIFI |
Power | ≤10W |
Operation | Working temperature: -5〜+55℃ working humidity:10〜90%(non-condensation) |
Storage | Storage temperature: -30℃〜+60℃ storage humidity: 10〜90%(non-condensation) |
Dimension | 130*107*31mm(length*width*highth) |
Net weight | ≤0.2Kg |
Data Service Functions
★ Full speed 1G non-blocking switching
★ 2048 MAC address table
★ Support VLAN QinQ, transparent, tag, translation, trunk, etc.
★ Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
★ Support auto polarity detection of Ethernet ports (AUTO MDIX)
★ Integrated IEEE802.1p QoS with four level priority queues
★ Support IPv4 IGMP snooping and IPv6 MLD snooping
★ Support bridging, router and bridging/router mixed mode
Wi-Fi service
★ Support Integrated 802.11b/g/n, 300Mbps, 2T2R.
★ Support 64 connections
★ Support WEP and WPA/WPA2 security protocols.
Application chart
