RJ-45 Copper Fiber Optic SFP Module GLC-T New Original Cisco 1000 Base -T Standard
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Data Rate: | 1000Base-T | Distance: | 100M |
|---|---|---|---|
| Connector Type: | RJ45 Port | Cabling Type: | Cat5 |
| Temperature: | 0 ～ 70°C (32 ～ 158°F) | DDM/DOM）: | Optional |
| Device Type:: | SFP (mini-GBIC) Transceiver Module - LC Multi-mode | Weight: | 0.03kg |
| High Light: | sfp transceiver module,fiber optic sfp module |
||

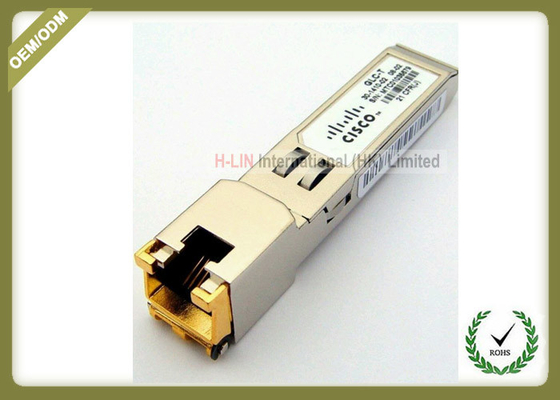

GLC-T New Cisco 1000Base-T SFP RJ-45 Copper GLC-T= Transceiver module
Description:
Optical module also be called optical fiber module, the translation should be transceiver module. The function of the optical module is the photoelectric conversion, and the transmitter converts the electrical signal into the optical signal. After the transmission through the optical fiber, the receiving end converts the optical signal into the electrical signal. SFP is a kind of optical module.
SFP-1000BASE-Tx Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10base-T / 100base-Tx/1000Base-T standards as specified in IEEE Std 802.3 . SFP-100BASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, SWITCH IC be reset.
Feature:
Support 1000base-T / 1000base-Tx
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10/100base-Tx Fast Ethernet over Cat 5 cable
Ambient Operating temperature: -40°C to +85°C
Specification:
| PRODUCT DETAILS | |
| Device Type | SFP (mini-GBIC) transceiver module - RJ-45 |
| Enclosure Type | Plug-in module |
| Dimensions (WxDxH) | 1.4 cm x 7.1 cm x 1.4 cm |
| Cabling Type | 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Max Transfer Distance | 100 m |
| Compliant Standards | IEEE 802.3 |
| Manufacturer Warranty | 2 years warranty |
| Designed For | Cisco 5508; Catalyst 2970G-24, 3560-12, 3560-24, 3560-48, 3560E-12, 3560E-24, 3560E-48, 3560G-24, 3560G-48, 3560X-24, 3560X-48, 3750-24 |
| GENERAL | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Enclosure Type | Plug-in module |
| Width | 1.4 cm |
| Depth | 7.1 cm |
| Height | 1.4 cm |
| NETWORKING | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 100 m |
| Features | Hot swap module replacement, auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3 |
| EXPANSION / CONNECTIVITY | |
| Interfaces | 1 x network - Ethernet 1000Base-T - RJ-45 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| ENVIRONMENTAL PARAMETERS | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| COMPATIBILITY INFORMATION | |
| Designed For | Cisco 5508 Wireless Controller |
| Cisco Catalyst 2970G-24TS, 3560-12PC, 3560-12PC-S, 3560-24PS EMI, 3560-24PS SMI, 3560-24TS, 3560-24TS EMI, 3560-24TS SMI, 3560-48PS, 3560-48PS EMI, 3560-48PS SMI, 3560-48TS, 3560-48TS EMI, 3560-48TS SMI, 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD, 3560G-24PS, 3560G-24PS EMI, 3560G-24PS SMI, 3560G-24TS, 3560G-24TS EMI, 3560G-24TS SMI, 3560G-48, 3560G-48PS, 3560G-48PS EMI, 3560G-48PS SMI, 3560G-48TS, 3560G-48TS EMI, 3560G-48TS SMI, 3560X-24P-L, 3560X-24P-S, 3560X-24T-L, 3560X-24T-S, 3560X-48PF-L, 3560X-48PF-S, 3560X-48P-L, 3560X-48P-S, 3560X-48T-L, 3560X-48T-S, 3 | |

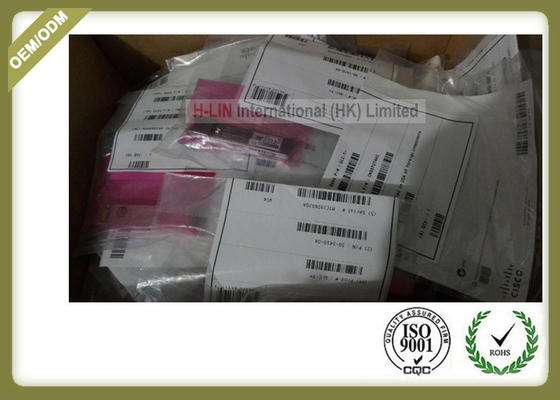

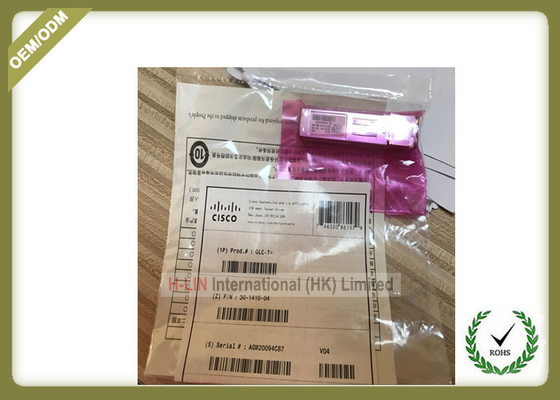

Package:
