Product Details:
Payment & Shipping Terms:
|
Model: | 8802-TLC/3 | Insertion Loss: | IL<0.2dB |
---|---|---|---|
Usage: | Voice/CATV/Ethernet/NGN | Return Loss: | ≥60db |
Dimension: | 9.3*9.3*57.4 Mm | Connector Type: | Connector Type: |
High Light: | optical cable accessories,fiber optic parts and accessories |

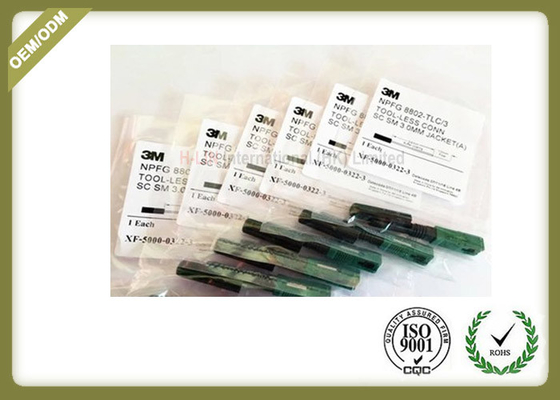

3M 8802-TLC/3 TOOL-LESS CONN SC UPC SM 3.0MM Fiber Optic Fast Connector for fiberhome

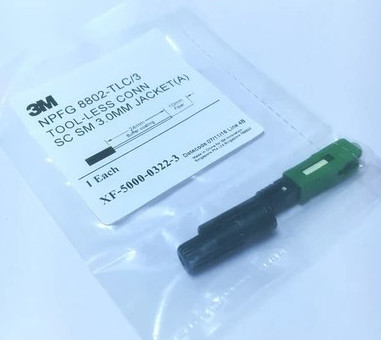

Original FTTH 3M 8802 TLC/3 SC APC Fast Connector
model:SC/APC (black+green)
3M™ NPFG 8802-TLC/3 TOOL-LESS SC/APC Connector enables fast, on-site termination of round 2.0 mm to 3.0 mm jacketed cable and 1.6 x2 mm and 2 x 3 mm drop cables.
The SC/UPC compatible connector consists of a factory-polished fiber/ ferrule assembly and a mechanical
splice that can be terminated without an assembly tool. A twist on, hard shell boot clamps onto the
cable jacket and aramid fiber to provide excellent strain relief.
fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design.
Features:
1.Easy to operate can save time
2.100% qualified, reduce the maintenance cost.
3.Easy to assembling with mechanical splice and no polishing
4.High stablity ,low insertion loss ,high return loss.
Application
1.Telecome network
2.CATV network
3.Ethernet network
4.Optic communication Equipment
Specification:
Item | Unit | Condition | Parameter |
Operating Wavelength | Nm | 1310/1550 | |
Attenuation Range | dB | 1dB-10dB | <0.5 |
dB | 11dB-20dB | <1 | |
Return Loss | dB | PC | ≥50 |
dB | APC | ≥60 | |
Attenuation Tolerance | dB | ||
Working Temperature | °C | -40~+80 | |
Storage Temperature | °C | -40~+80 | |
Noted: LC, FC, SC, ST, is available as per customers' drawings. |
Model # | 8802-TLC/3 |
Cable diameter | 2.0, 3.0 mm cable and 1.6x2 mm, 2x3 mm drop cable |
Coating diameter | 250μm/900μm |
Fiber type | Single mode |
Dimensions | 9.3*9.3*57.4 mm (0.37'' *0.37'' * 2.26'') |
Insertion Loss (dB) typical | 0.3 |
Reflectance (dB) typical at room temperature |
<-40 |
Reflectance (dB) over operating temperature range |
<-35 |
Operating temperature range (°C) |
-40°C to 75°C |
Storage temperature (°C) | -40°C to 85°C |
Connector identification | blue/white |
