Product Details:
Payment & Shipping Terms:
|
Type: | 10/100/1000Mbps Fiber Media Converter | Standard: | IEEE802.3u 100Base-TX |
---|---|---|---|
Fiber Type: | Singlemode Single Fiber | Wavelength: | 1310nm/1550nm |
Power Supply: | External Power Supply | Certification: | CE,Rohs,FC |
Fiber Port: | SC Port,FC Port For Option | Network Port: | RJ45 Port |
High Light: | optical media converter,network media converter |

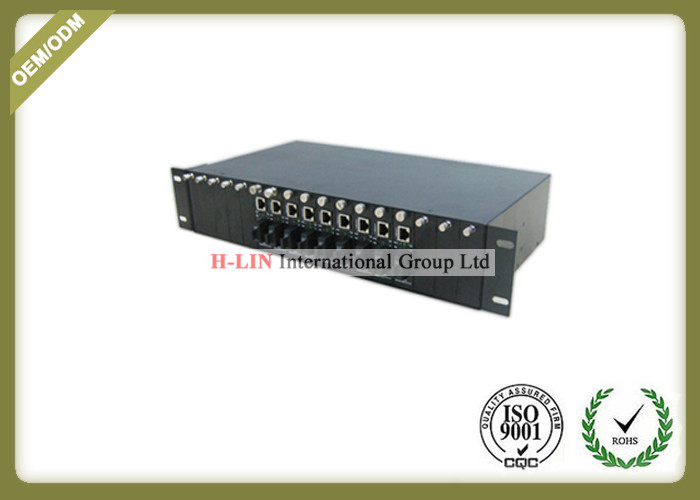

10/100/1000M 1310nm /1550nm transmission distance 20km fiber optic media converter rj45 sc connector
Optical Fiber Media Converter, it is a kind of ethernet transmission medium unit which change twisted elecctrical signal of short distance with optical signal of long distance.At the many places,it is also called fiber Converter.. The products are generally used in Ethernet cable can not cover, must use fiber to extend the transmission distance of the actual network environment, the application and the access layer is usually located in the broadband metropolitan area network; such as HD video transmission monitoring and safety engineering; at the same time to help the last mile fiber line connected to metropolitan area network and outer network also played a huge role.
Description:
1. Identification of Media Converter
TX - transmitting terminal; RX - receiving terminal;
2. PWR
Power Indicator Light – “ON” means normal operation of DC 5V power supply adaptor.
3. 1000M Indicator Light
“ON” means the rate of the electric port is 1000 Mbps, while “OFF” means the rate is 100 Mbps.
4. LINK/ACT (FP)
“ON” means connectivity of the optical channel; “FLASH” means data transfer in the channel; “OFF” means non-connectivity of the optical channel.
5. LINK/ACT (TP)
“ON” means connectivity of the electric circuit; “FLASH” means data transfer in the circuit; “OFF” means non-connectivity of the electric circuit.
6. SD Indicator Light
“ON” means input of optical signal; “OFF” means non input.
7. FDX/COL:
“ON” means full duplex electric port; “OFF” means half-duplex electric port.
8. UTP
Non-shielded twisted pair port;
Instructions on Rear Panel
Technical Specifications :
Parameters | Specifications |
Number of Network Ports
|
1 channel
|
Number of Optical Ports
|
1 channel
|
NIC Transmission Rate
|
10/100/1000Mbit/s
|
NIC Transmission Mode
|
10/100/1000M adaptive with support for automatic inversion of MDI/MDIX
|
Optical Port Transmission Rate
|
1000Mbit/s
|
Operating Voltage
|
AC 220V or DC +5V
|
Overall Power
|
<3W
|
Network Ports
|
RJ45 port
|
Optical Port: SC, ST or FC (Optional)
|
|
|
Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um |
Wavelength: Single-Mode: 1310nm | |
Operating Temperature: 0℃ to +50℃
|
|
|
Storage Temperature: -20℃ to +70℃ |
Humidity: 5% to 90% | |
IEEE802.3x and collision base backpressure supported
|
|
|
Working Mode: Full/half duplex supported Transmission Rate: 100Mbit/s |
with error rate of zero |
Quality Assurance
MTBF > 100,000 hours;
Replacement within one year and non-charge repair within three years guaranteed
Note:
All of our media converters can be made logo as customer's request.
Power supply can be EU,UK,American type for option.
