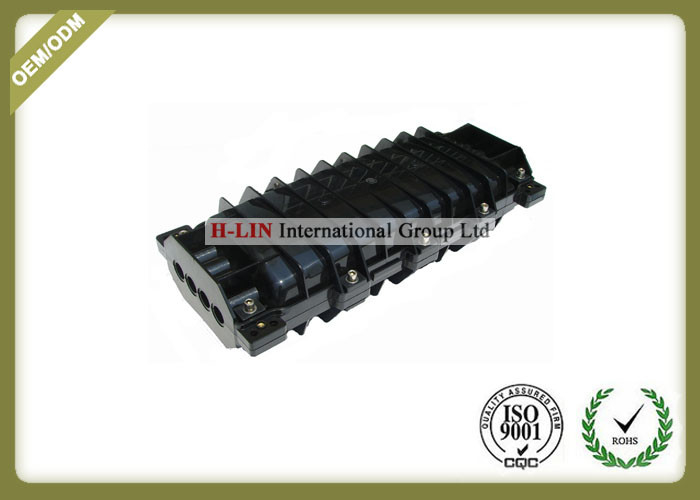

FTTH Horizontal Fiber Optic Splice Closure , Fiber Optic Joint Enclosure High Strength

Certification
Good quality Network Fiber Cable for sales
Good quality Network Fiber Cable for sales
We are very satisfied with H-LIN,they can provide fiber materials which all meets our requirements.They are doing a good job.

—— Steve Toner

H-LIN is professional,responsible,efficient in our business cooperation.We are very glad to work with those excellent ladies, looking forward to the long partnership with them.

—— Sarah Grant

10years nice cooperation by reasonable price,stable quality and patient attitude to deal with all related work,we are not only partners but also friends with H-LIN Team.

—— Arabnia

I'm Online Chat Now

FTTH Horizontal Fiber Optic Splice Closure , Fiber Optic Joint Enclosure High Strength

China FTTH Horizontal Fiber Optic Splice Closure , Fiber Optic Joint Enclosure High Strength supplier

Large Image :  FTTH Horizontal Fiber Optic Splice Closure , Fiber Optic Joint Enclosure High Strength

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: ISO
Model Number: HL-FOSC-H404

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: negotiable
Packaging Details: 1pc for a separate box 4pcs for a carton,size:58.5*52*31cm
Delivery Time: 1week after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Piece/Pieces per Week
Detailed Product Description
Cable Port: 4 In 4out Capacity: Max 288core
Material: PC Dimension (cm): 55.5*24*12.3
Cable Diameter: 8-23MM Weight/pc: 5kg
Sealing Way: Silica Gel The Application Of Temperature: -40℃~65℃
High Light:

fiber optic enclosure

,

fiber optic cable joint closure

FTTH Fbier Optic Horizontal Closure 4 in 4 out up to 288cores Capacity



Description about Fiber Optic Closure:



Fiber Optic Closure, also called the cable connection  box, is the end of the local access cable, and then through the optical fiber jumper access to optical switch, which prevent the nature of hot and cold, light, oxygen and microbial materials caused by aging, and has excellent mechanical strength.The shell of optical closure and its body structure can  bear the worst environmental change, at the same time, flame retardant, waterproof, shock, impact, stretch and twist protected cable.



Features:



The Fiber Optic Closure has the function for protecting and splicing,The body adopts the reinforced plastic material, which has the advantages of high strength, corrosion resistance, mature structure, reliable sealing and convenient construction.



Detailed Description:





This model Fiber Optical Closure, with innovative design, manufacturing and material selection, excellent sealing technology, to ensure the reliability and stability of the product. It can provide reliable, solid and flexible protection for the direct, terminal or divergent splicing of optical fiber.

Performance:
Aging resistance: good stability for heat, heat radiation, air, ozone and so on.
Corrosion resistance: strong resistance to dilute acids, salts, oxidants, aliphatic hydrocarbons and so on.
Sealing technology: The use of reusable components to open seal  to ensure good airtightness and waterproof performance.
Mechanical properties: The use of high-strength engineering plastic shell that able to withstand harsh conditions such as vibration, impact, cable stretch distortion and strong temperature changes.
Locking device: Does not require special tools, easy to install and open the duplicate.
Connection function: using stacked flip type structure, it does not need to disassemble other splice tray.
Capacity:
Splice Tray capacity: single core bundle, 12 cores per splice tray,
double core bundles, 24 cores per splice tray OR 48core tray.
Maximum capacity fiber optic cable access: the largest diameter of the port optical cable is 23cm
The maximum holds 6 splice trays.





Application:
aerial, direct-buried, wall-mounting, duct-mounting





Specifiaction:





FTTH Horizontal Fiber Optic Splice Closure , Fiber Optic Joint Enclosure High Strength



Components:





FTTH Horizontal Fiber Optic Splice Closure , Fiber Optic Joint Enclosure High Strength
