1 * 8 Splitter Fiber Optic Enclosure 144cores 7 Pcs Ports For Aerial - Hanger
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Fiber Port: | 4 In 4out | Capacity: | Max 144core |
|---|---|---|---|
| Cable Ports: | 7 Pcs Ports | Dimension (Mm): | 230*320 |
| Splice Tray: | 9pcs | Diameter: | 7~22mm |
| Highlight: | fiber optic enclosure,fiber enclosure box |
||

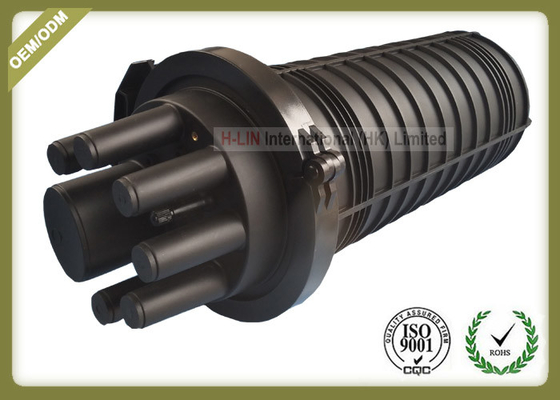

4 In 4Out Outdoor Dome Type Splice Closure 144cores can load 1*4 or 1* 8 splitter
Description
This model optical cable connector box is a cap-type series used in optical fiber transmission process, the product has through connection function and provides connection protection, with six small round inlet cable holes and one large inlet cable hole; uses heat shrinkable sleeve to heat and seal; can be used for overhead, holding rod, hanging wall and buried installation; good sealing performance, safety Simple installation and wide application range are the best choice for optical fiber connection.
Product characteristics:
The performance specifications of the product meet the requirements of the national YD 814.1-2004 junction box standard.
To meet the connection of optical fiber cable four in four out, there are 7 optical cable inlet and outlet, of which 6 small circular holes and
The 1 large circular entrances and exits can access the optical cable of 7~ 22.
The outer box is made of high strength engineering plastics and high pressure injection molding with anti-aging agent. It has the characteristics of light weight, high mechanical strength, strong corrosion resistance, lightning resistance and long service life.
96

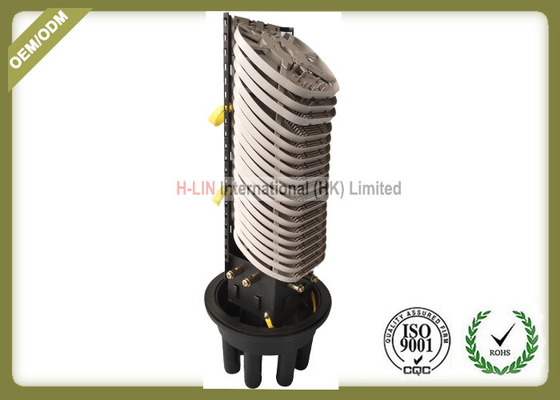

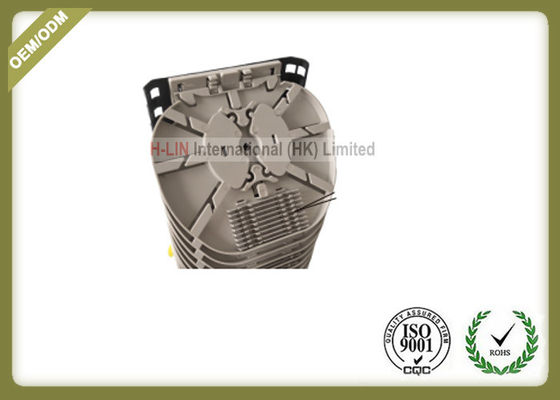

The fused fibre disc is equipped with a fused slot and a special PLC card, which can be configured at any time according to the requirements to meet the requirements of direct fusion and divergence.
Specification:
| Model | HL-FOSC-RS7-144 |
| Dimension(mm) | 230*320 |
| Splice tray splitter: | 1:4(1pcs) and 1:8(1pcs) |
| Suitable diameter of cable(mm) | F7~F22 |
| Max core of Splice tray: | 16(single) |
| Max qty of Splice tray: | 9 |
| Max cores: | 144(single) |
| Sealing method: | Heat shrinkable silicone rubber |
Technical indicators:
Optical fiber curvature radius: 40mm
Additional loss of fiber optic disc: less than 0.01dB
lateral pressure resistance: greater than 2000N / 10 cm
Shock resistance: greater than or equal to 20N.m
Protection level: IP65
Application:
Aerial -hanger
Wall-mounting
Directly buried
Package list:
| Body | 1set | Instruction | 1pc |
| Holding pole connector | 2pcs | Ground wire:L=120mm | 1pc |
| Inlet/Outlet Optical cable shrink tube (small cylinder) | 6pc | Bifurcation card | 1pc |
| Inlet/Outlet Optical cable shrink tube (Oval) | 1pc | Silver paper | 2pcs |
| Stainless steel hoop | 4pcs | Ø13 ~Ø19 Laryngeal buckle | 8pcs |
| shrinkable protection tube 12pcs/pack L≤45mm | according to qty of cores |
Installation of optical cable
1. openings: sawing with saws should be inserted into the ends of the optical cable to allow fiber optic cable to enter.
2. remove any dust or other dirt on the outer surface of the optical cable (about 1.8 meters) with clean cloth.
3. slide the optical cable into the opening.
