288 Cores Outdoor Fiber Distribution Cabinet SMC Material Anti - Erosion High Intensity

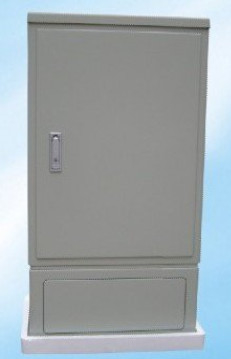

Large Image : 288 Cores Outdoor Fiber Distribution Cabinet SMC Material Anti - Erosion High Intensity

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	H-Lin
Model Number:	HL-MODF-OC288

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	negotiable
Packaging Details:	1pc/carton, 1carton/pallet
Delivery Time:	1week after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 pieces/week

Contact Now

Detailed Product Description

Material:	Cold-roll Steel Or SMC	Color Painting:	Black,White,Grey Or Customized
Capacity Of Fiber:	288core	Dimension:	1437530
Weight:	50kg
High Light:	fiber optic distribution cabinet , optical fiber distribution frame

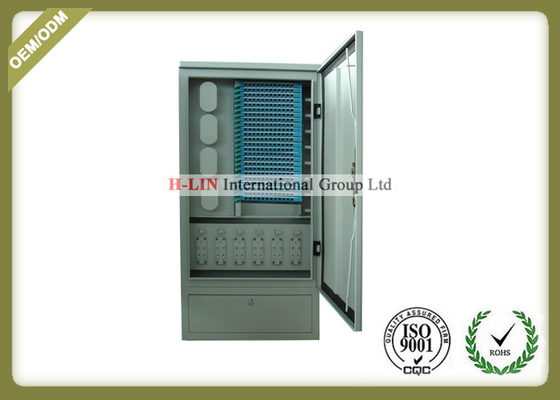

288 cores outdoor fiber optic distribution cabinet with SMC material

Fiber optic cross connect cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network.Standard case body,Suitable for various bad weather,with reliable sealing,water-proof and dampproof.It provides splice,storage,termination etc

Features:
High intensity and anti-erosion performance
Able to counter abrupt climate change and extreme environment
Capacity can be flexibly customized as required
Installation is quick and convenient
Built-in direct splice unit is capable for providing direct connection function.
Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
With secure and reliable fastening and grounding protection devices for the optic fiber
Applicable to strap-shaped and non-strap shaped fibers

Material:
SMC, Cold-rolled steel or stainless steel

Technical Parameters:
Nominal work wave-length: 850nm, 1310nm, 1550nm
Operating temperature: -5℃-+40℃
Storage temperature: -40℃ +70℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure: 70~106 KPa
Insertion loss: ≤0.2dB
Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
Isolation resistance:≥1000MΩ/500V(DC)
Durability:＞1000 times
Anti-voltage strength: ≥3000V(DC)/1min
