Product Details:
Payment & Shipping Terms:
|
Material: | Cold-roll Steel | Color Painting: | Grey |
---|---|---|---|
Capacity Of Fiber: | 576core | Dimension: | 220x90x30cm |
Weight: | 230kg | ||
Highlight: | fiber distribution unit,optical fiber distribution frame |

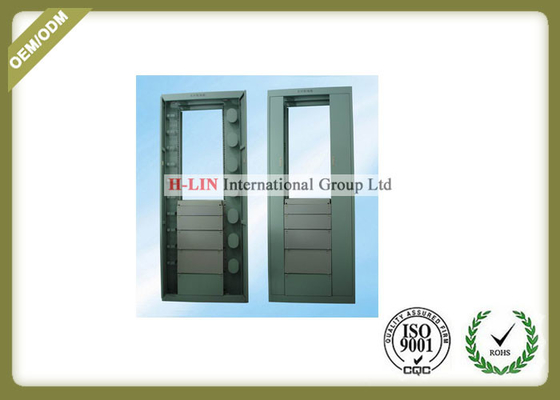

cold-rolled steel 576 cores telecomunication cabinet for indoor use
Fiber optic cabinet is a high-capacity,high-density fiber distribution frame, suitable for the composition and distribution of fibers in optical access network to achieve the fiber optic lines connection, distribution and scheduling.
Features:
With high intensity and anti-erosion performance
Electrolysis sheet/Cold-rolled steel frame, electrostatic spraying in the whole surface, nice appearance.
Capacity can be flexibly customized as required
Built-in direct melt unit capable of providing direct connection functionality
With secure and reliable fastening and grounding protection devices for the optic fiber
Applicable to strap-shaped and non-strap shaped fibers, and inserting installation of SC, FC, ST (additional flange) adapters
The angle between the adaptor and the connecting unit face is 30°, ensuring the curvature radius of fiber and preventing the eyes from being hurted
The holes on top and bottom can meet the upper and lower wiring
Glass front door for your choice, visibility good
Can design according to customers’ request
Material:
Cold-rolled steel
Technical Parameters:
Nominal work wave-length: 850nm, 1310nm, 1550nm
Operating temperature: -5℃-+40℃
Storage temperature: -40℃ +70℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure: 70~106 KPa
Insertion loss: ≤0.2dB
Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
Isolation resistance:≥1000MΩ/500V(DC)
Durability:>1000 times
Anti-voltage strength: ≥3000V(DC)/1min
Application:
Communications
Networks
Industrial control
Building automation
