Product Details:
Payment & Shipping Terms:
|
Package Type: | Micro Steel Tube | Module Dimension (mm): | 60x7x4mm |
---|---|---|---|
Operating Wavelength (nm): | 1260-1650nm | Connector: | SC, FC, ST, LC, Etc |
Operating Temperature (℃): | -40~85 | Length: | 1~2meter |
Fiber Type: | 250um/900um/2.0mm/3.0mm | Application: | FTTH,FTTX,PON,GOPN |
High Light: | fiber optic cable splitter,optical plc splitter |

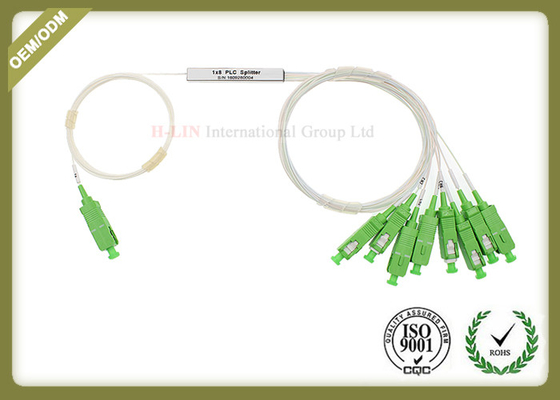

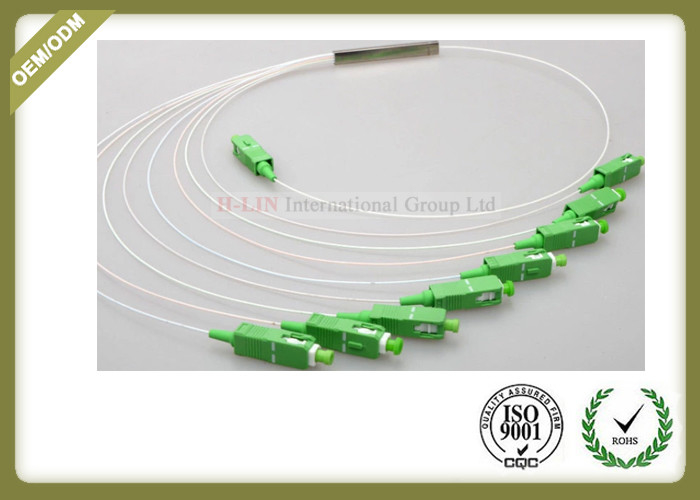

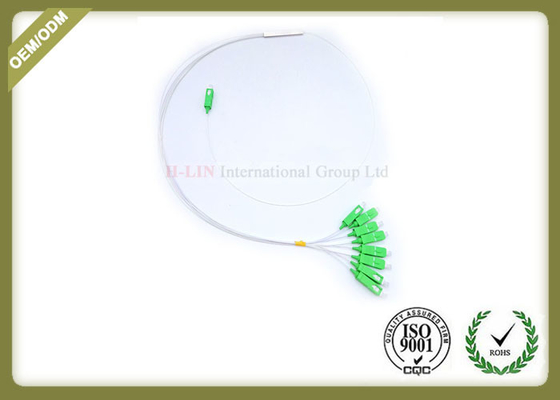

1:8 mini steel tube optical splitter sc/apc micro tube 1x8 fiber optical plc splitter
Description:
Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
Optical fiber splitter is the same as coaxial cable transmission system. Optical network system also needs to coupling, branching and distributing optical signals. Optical splitter, also known as optical splitter, is one of the most important passive devices in the fiber link. It is an optical fiber connection device with multiple inputs and multiple outputs. M*N is used to indicate that a divider has M input and N output terminals. Optical splitters used in optical fiber CATV systems are usually 1*2,1*3 and 1*N optical splitters.All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Parameters
Product Model | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
Wavelength | 1260-1650nm | ||||||||||
Insertion loss(db) | 3.6 | 7.2 | 10.2 | 13.5 | 16.2 | 20.5 | 3.8 | 7.5 | 10.7 | 14 | 17 |
Uniformity(db) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.8 | 0.6 | 1 | 1.2 | 1.5 | 1.8 |
PDL(db) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
Directivity(db) | 55 | ||||||||||
Reflection loss(db) | 55 | ||||||||||
Operating temperature | -40~85℃ |
Features
Typical Usage
1. FTTX Systems
2. FTTH Systems
3. PON Networks
4. CATV Links
5. Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS
The light splitting is uniform, the transmission is stable, and the light splitting uniformity is good. The optical fiber signal can be evenly distributed to the users needed.
High quality imported optical chips, imported transmission chips, ensure uniform and stable light splitting, low polarization dependent loss, low ejection reflection, and can meet different wavelength requirements.
Environmentally friendly PVC skin, anti pull and drag performance is strong, low carbon and environmental protection, safe use, solid heart
