ABS Cassette Type 1x32 Optic Fiber PLC Splitter Module With SC / UPC Connector

China ABS Cassette Type 1x32 Optic Fiber PLC Splitter Module With SC / UPC Connector supplier
ABS Cassette Type 1x32 Optic Fiber PLC Splitter Module With SC / UPC Connector supplier ABS Cassette Type 1x32 Optic Fiber PLC Splitter Module With SC / UPC Connector supplier

Large Image :  ABS Cassette Type 1x32 Optic Fiber PLC Splitter Module With SC / UPC Connector

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: 1*32

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1pcs per plastic bag,1pcs per paper bag
Delivery Time: 3~5 working days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Piece/Pieces per Month
Detailed Product Description
Fiber Type: Corning SMF-28e Module Dimension (mm): 140*115*18
Operating Wavelength (nm): 1260~1650 Connector: SC, FC, ST, LC, Etc
Operating Temperature (℃): -40~85 Length: 1~2meter
Fiber Size: 0.9mm,2.0mm Or 3.0mm Package Type: Bare, Module, Rack Mount, LGX, Tray, Insert, Wall Mount
Application: GPON
High Light:

fiber optic cable splitter

,

optical plc splitter

ABS Cassette Type 1x32 Optic Fiber PLC Splitter Module With SC / UPC Connector




Features


Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliability and Stability
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution




Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. H-LIN provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.



Typical Usage



1. FTTX Systems

2. FTTH Systems

3. PON Networks

4. CATV Links

5. Optical Signal Distribution



Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS



1* N PLC Splitter

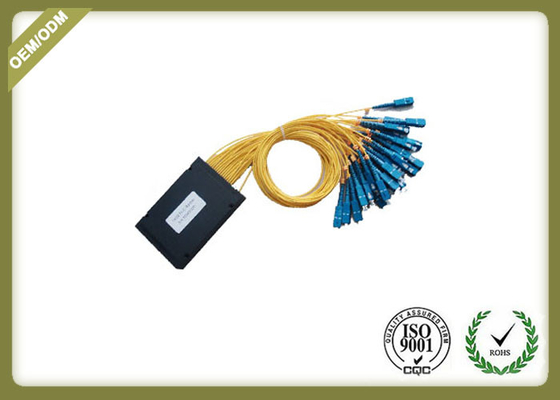

ABS Cassette Type 1x32 Optic Fiber PLC Splitter Module With SC / UPC Connector

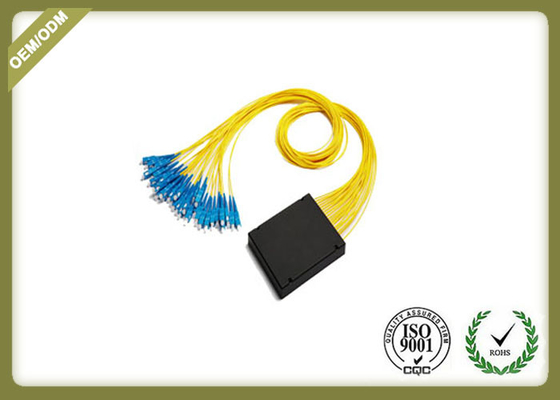

ABS Cassette Type 1x32 Optic Fiber PLC Splitter Module With SC / UPC Connector
