|Cable Port:||2 In 2out||Capacity:||Max 144core|
|Sealing Way:||Rubber Seal||The Application Of Temperature:||-40℃～65℃|
fiber optic enclosure,
fiber optic cable joint closure

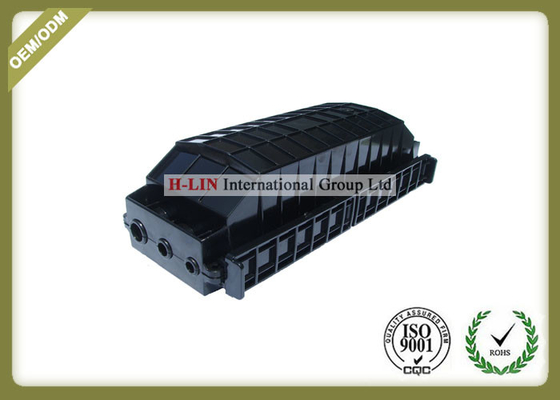

Rubber sealing Type 2 in 2 out 144cores Horizontal Fiber Optic Splice Closure with PC material
This model Fiber Optical Closure, with innovative design, manufacturing and material selection, excellent sealing technology, to ensure the reliability and stability of the product. It can provide reliable, solid and flexible protection for the direct, terminal or divergent splicing of optical fiber.
Aging resistance: good stability for heat, heat radiation, air, ozone and so on.
Corrosion resistance: strong resistance to dilute acids, salts, oxidants, aliphatic hydrocarbons and so on.
Sealing technology: The use of reusable components to open seal to ensure good airtightness and waterproof performance.
Mechanical properties: The use of high-strength engineering plastic shell that able to withstand harsh conditions such as vibration, impact, cable stretch distortion and strong temperature changes.
Locking device: Does not require special tools, easy to install and open the duplicate.

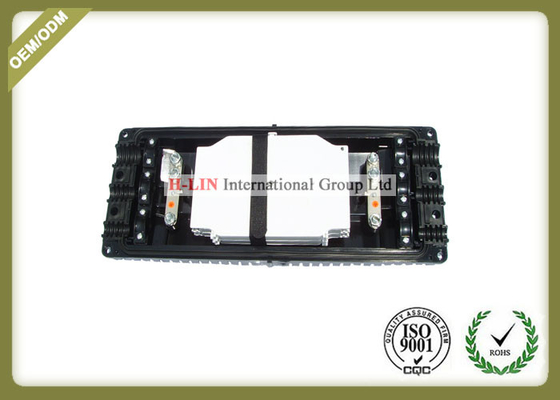

Connection function: using stacked flip type structure, it does not need to disassemble other splice tray.
Splice Tray capacity: single core bundle, 12 cores per splice tray,double core bundles, 24 cores per splice tray.
Maximum capacity fiber optic cable access: the largest diameter of the port optical cable is 23cm
The maximum holds 6 splice trays.
Description about Fiber Optic Closure:
Fiber Optic Closure, also called the cable connection box, is the end of the local access cable, and then through the optical fiber jumper access to optical switch, which prevent the nature of hot and cold, light, oxygen and microbial materials caused by aging, and has excellent mechanical strength.The shell of optical closure and its body structure can bear the worst environmental change, at the same time, flame retardant, waterproof, shock, impact, stretch and twist protected cable.
The Fiber Optic Closure has the function for protecting and splicing,The body adopts the reinforced plastic material, which has the advantages of high strength, corrosion resistance, mature structure, reliable sealing and convenient construction.
aerial, direct-buried, wall-mounting, duct-mounting
