Payment & Shipping Terms:
|Number Of Conductors:||8||Conductor:||Solid Copper,Bare Copper,Pure Copper|
|Transmission Rate:||1000（Kpbs）||Jacket Material:||PVC Or LSZH|
|Diameter:||4*2*0.58MM||Color:||Blue,Grey , Black Or As Request|
|Length:||305m(1000ft) / Roll Or 500m/Roll||Shield:||UTP|
copper fiber cable,
fiber optic data cable

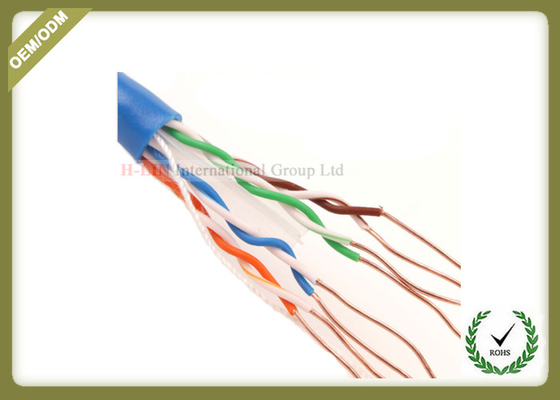

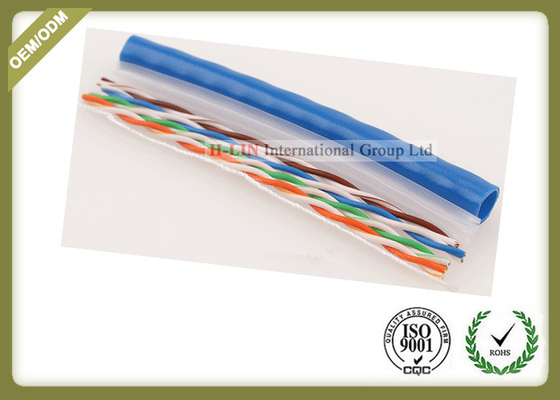

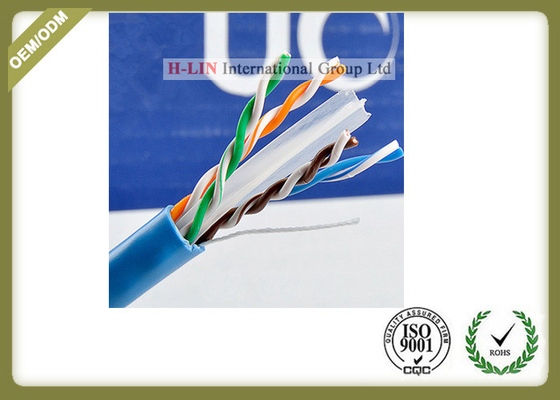

Cat6 utp network cable Pass Fluke Test 4 pair utp cat6 network cable 305m
Our Cat6 UTP Cable,the core is made of OFC,And protective environmental PVC sheath.
Horizontal twisted pair cables for digital communication are used in the wiring between the wiring rack between the workspace communication leads and the handover in the building integrated wiring system, and the user communication leads in the residential integrated wiring system.
The wiring between the end-to-end wiring rack meets the requirement of 155MHz data communication. Double shielding protection is adopted to enhance the anti-jamming ability of the whole channel and ensure the data information under high-intensity electromagnetic interference.
The correct transmission. It is suitable for military, hospital, banking and financial systems with special high performance requirements. The standard wiring is 90 meters in length and is terminated by T568A or T 568B connection mode.
Use shielded components and ground to ensure the transmission of channel links under shielding protection. Color is coded according to ANSI/TIA/EIA-568-B color. 1000 BASE-T Ethernet (1000 Mbps) 155 Mbps ATM, 100 Mbps TP-PMD, 100 Mbps Ethernet (100BASE-T) and other systems with 622 Mbps transmission rates apply 10Mbps Ethernet 4Mbps and 16Mbps Token Ring Networks
|Product Name||4 pair utp cat6 network cables 305m|
|Construction Material||24AWG×4pairs, 100% Bare Copper|
|Insulation Dia.-Outer Dia.||1.0mm±0.12mm|
|Twisted Pair||4 Pair with PE Cross|
|Outer Jacket||PVC, LSZH|
|Shield||With(AL foil + Braiding) / With no|
|Jacket Material||Flame Retardant PVC - Conforms to UL94V-2|
|Brand||Medium or print company name as required|
|Normal service life||15 years|
|Maximum transmission frequency||500M|
|Package||305 meters / box|
|Working temperature||-30 ~ 60 C|
Environmental material is not easy to ignite high temperature,
pure copper contrast, high purity copper core,
outer skin contrast, use high quality PVC material, environmental health, safety and durability, smooth and glossy, quality inside and outside as one,
bending contrast, outer skin intact, easy cracking of the outer skin
Ordinary plastic, easy to burn, short life and pungent odor. Pure copper contrast, low quality impurities, large resistance, outer skin contrast, used recycled material, rough skin and easy aging, and dark color, easy breakage, extrusion easy to deform. Bend contrast, the outer skin is easy to crack
Attention: Please select different specifications of wire according to your own project needs, high standard project wiring, POE security monitoring, please choose national standard oxygen-free copper wire(OFC wire).
