Gigabit 10/100/1000M Fiber Optic Media Converter with SC or SFP Port with 20~80km

China Gigabit 10/100/1000M Fiber Optic Media Converter with SC or SFP Port with 20~80km supplier
Gigabit 10/100/1000M Fiber Optic Media Converter with SC or SFP Port with 20~80km supplier Gigabit 10/100/1000M Fiber Optic Media Converter with SC or SFP Port with 20~80km supplier Gigabit 10/100/1000M Fiber Optic Media Converter with SC or SFP Port with 20~80km supplier

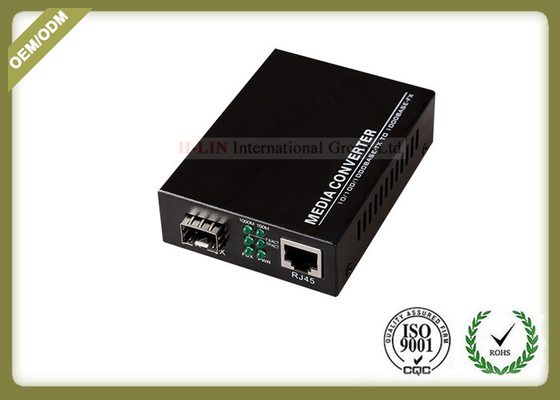

Large Image :  Gigabit 10/100/1000M Fiber Optic Media Converter with SC or SFP Port with 20~80km

Product Details:

Place of Origin: China
Brand Name: H-Lin
Certification: CE,Rohs,FC
Model Number: HL-MD-SFP

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: negotiable
Packaging Details: 20pcs,30pcs,40pcs,50pcs or 60pcs one carton for option
Delivery Time: 3~4working days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: SFP Fiber Media Converter Standard: IEEE802.3u 100Base-TX
Fiber Type: SM Power Supply: External Power Supply
Certification: CE,Rohs,FC Fiber Port: SFP Port
Network Port: RJ45 Port Connector Type: LC

Gigabit SFP Fiber Optic Media Converter with SC or SFP Port







Description:



H-LIN 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers’requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.





The Gigabit Adaptive Transceiver with a Gigabit SFP port and a RJ45 port can meet the needs of users.
Choose different Gigabit SFP modules (1000Base-T, 1000Base-SX, 1000Base-LX, etc.). Modules include Gigabit single mode single fiber / Gigabit single mode dual fiber / Gigabit multimode dual fiber.





Technical Specifications :





Parameters Specifications
Standards IEEE802.3z 1000Base-SX/LX , IEEE802.3ab 1000Base-T Gigabit Ethernet IEEE802.3u,100Base-TX, IEEE 802.3 10Base-T
Wavelength Multi-mode: 850 nm
Single-mode: 1310 nm, 1550 nm
Transmission Distance

Fiber:
Multi-mode: 550 m (fiber size: 50/125 μm)
Single-mode: 10/20/50/80 km (fiber size: 8.3/125, 8.7/125, 9/125 or 10/125 μm)
UTP:

Cat. 5e or Cat. 6: 100 m

Port One RJ45 port, One SFP
MDI/MDI-X Auto selection
LED Indicator PWR: Illuminated for normal operation
ALM: Illuminated when failure occurs on fiber or copper link
LNK/ACT: Fiber link – Illuminated when receiving link pulses from compliant devices, Flashing when data packets are being transmitted/ received
Power Supply Outside: 5 V DC 2 A
Built-in: 100 V to 240 V AC 50Hz to 60 Hz
Operating Temperature 0 °C to +70 °C
Storage Temperature -20 °C to +80 °C
Storage Humidity 5% to 90% (non-condensing)





Key Features



Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.

The UTP port supports the connection of MDI/MDI-X auto crossover.

Support all 1250M SFP Standard transceiver

Supporting the max 1536 byte Ethernet packet

The maximum length of multimode fiber is 224/550 M. the maximum length of a single-mode fiber is 10~100 km.

Supporting flow control

Adopting external power supply





Application



FTTH System

Apartment to building

Monitoring and spy system









We use high quality metal material for the body of media converter.it can have a good protection,and long life-usage for various indoor and outdoor enviroment.

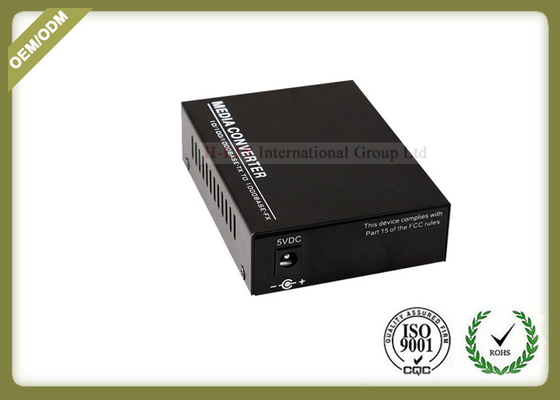

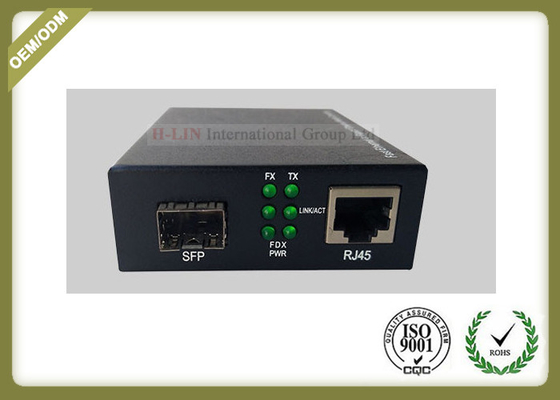

Gigabit 10/100/1000M Fiber Optic Media Converter with SC or SFP Port with 20~80km



Gigabit 10/100/1000M Fiber Optic Media Converter with SC or SFP Port with 20~80km
