10/100M Fiber Optic Media Converter Single Mode With External Power Supply

China 10/100M Fiber Optic Media Converter Single Mode With External Power Supply supplier
10/100M Fiber Optic Media Converter Single Mode With External Power Supply supplier 10/100M Fiber Optic Media Converter Single Mode With External Power Supply supplier

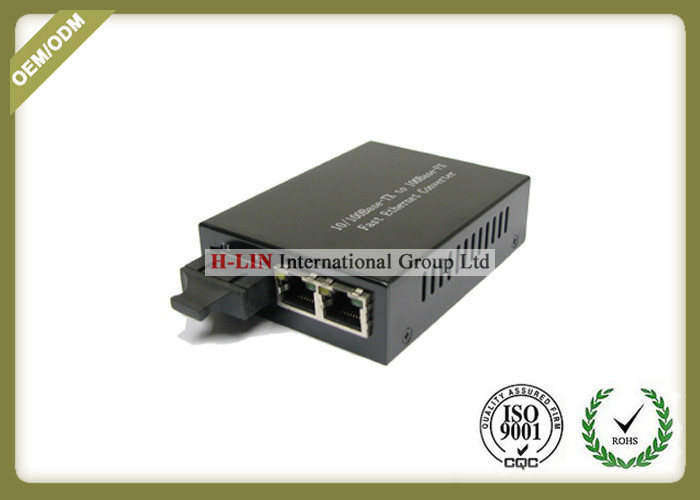

Large Image :  10/100M Fiber Optic Media Converter Single Mode With External Power Supply

Product Details:

Place of Origin: China
Brand Name: H-Lin
Certification: CE,Rohs,FC
Model Number: HL-MD-SS0102

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: negotiable
Packaging Details: 20pcs,30pcs,40pcs,50pcs or 60pcs one carton for option
Delivery Time: 3~4working days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: 100Mbps Fiber Media Converter Standard: IEEE802.3u 100Base-TX
Fiber Type: Singlemode Single Fiber Wavelength: 1310nm/1550nm
Power Supply: External Power Supply Certification: CE,Rohs,FC
Fiber Port: SC Port Network Port: 2 RJ45 Ports
SIZE: 95mm X 70mm X 25mm

10/100M Singlemode Single Fiber 1 Fx Port (155M SFP) + 2 RJ-45 Ports Optical Media Converter





2 ports 10/100M RJ45 port + 1 Fiber Port Switch



This media converter has 2 10/100M UTP ports and 1 fiber port.



The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC  and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.





Features:



1. Two 10/100Base-T RJ45 ports and one SC fiber port .It can convert Optical Electric Ethernet signals between 10/100M UTP ports and 100M optical fiber ports and switch Ethernet singnals between port and port.

2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards

3. Auto-negotiation support on RJ45 port

4. Auto-Negotiation of duplex(HDX/FDX) on RJ45 port

5. Auto MDI/MDI-X support on RJ45 port

6. Distances up to 20~120km, single fiber



Quality Assurance



MTBF > 100,000 hours;

Replacement within one year and non-charge repair within three years guaranteed



Application



Application Fields

  • For intranet prepared for expansion from 10M to 100M
  • For integrated data network for multimedia such as image, voice and etc.
  • For point-to-point computer data transmission
  • For computer data transmission network in a wide range of business application
  • For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
  • In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks

Application Industries



Intelligent transport monitoring system, safety and security monitoring system, campus network, industrial monitoring (electric power, chemical industry, steel, oil, railway and water conservancy etc.); military monitoring (warehouse, guard and confidentiality etc.) TV program transfer system;
