HDPE Insulation Cat5e STP / FTP Network Lan Cable Twisted Pair 24AWG

China HDPE Insulation Cat5e STP / FTP Network Lan Cable Twisted Pair 24AWG supplier
HDPE Insulation Cat5e STP / FTP Network Lan Cable Twisted Pair 24AWG supplier HDPE Insulation Cat5e STP / FTP Network Lan Cable Twisted Pair 24AWG supplier HDPE Insulation Cat5e STP / FTP Network Lan Cable Twisted Pair 24AWG supplier

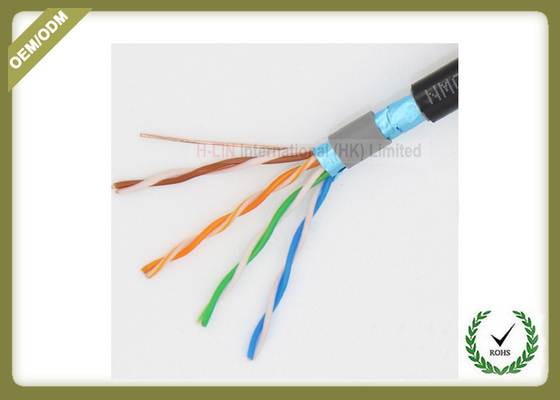

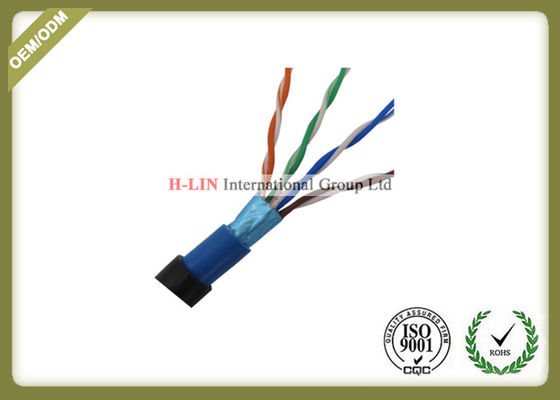

Large Image :  HDPE Insulation Cat5e STP / FTP Network Lan Cable Twisted Pair 24AWG

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: UL,ROHS,CE,QC,CCC.
Model Number: Cat5e STP outdoor lan cable

Payment & Shipping Terms:

Minimum Order Quantity: 1 Box/Boxes
Price: negotiable
Packaging Details: 1. Pull out pox 305m/pull out box, 2boxes/outer carton. 2. Plastic reel 3. Wooden reel 4. As client' s request .
Delivery Time: 8days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60000 Box/Boxes per Month
Contact Now
Detailed Product Description
Number Of Conductors: 8 Conductor Material: CCA/CCU/BC

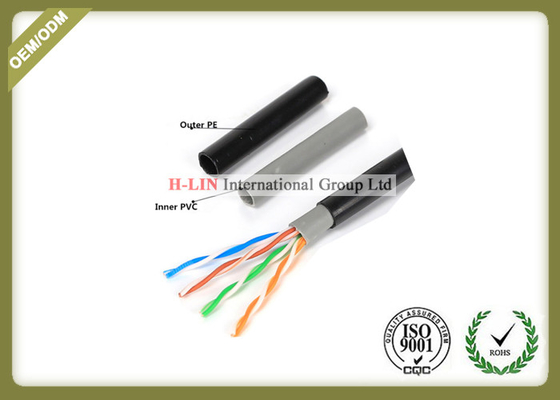

Insulation: HDPE Jacket Material: Inner Jacket:PVC,Outer Jacket:PE
AWG: 24AWG 0.51/0.5/0.48/0.45mm Color: Blue,Grey , Red Or As Request
Transmission Distance: The Minimum Is 100 Meters Length: 305m(1000ft) / Roll Or 500m/Roll

H-Lin Outdoor Cat5e STP/FTP 24AWG network Cable lan cable Twisted Pair





Application:



Outdoor wiring, the product applies to outdoor level work area wiring, outdoor LAN wiring, overhead or wall laying. The utility model can be used in outdoor environment with short water (not soaked in water), and can be used in outdoor sunlight and ultraviolet radiation environment for a long time. A signal with a maximum transmission rate of 100MHz.



Product instructure:



Conductor: solid oxygen free copper, Φ0.51 + 0.01mm.
Insulation: new HDPE, Φ 0.91 + 0.05mm.
Double outer sheath: new PVC or LSZH+PE
Line logarithm: 8 core 4 pairs twisted pair.



It is used of 1rip cord and 4pairs twisted

Pair1: Orange/White Orange

Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown



Description:





Generic cabling products are used for modular and flexible transmission of information between buildings or groups of buildings. It can realize the connection of voice, data, exchange and all kinds of control equipments and communication network system. It includes network, telephone, monitoring, power supply and lighting system, etc.



On the market there are a lot of the cable, module inferior copper or alloy production, plastic parts made by the mould is not accurate and waste plastics into such products, which lead to the construction side can not pass test after laying.







Technical parameter
Resistance: (f=1-100MHZ) 100 + 15%.
Delay bias: (max) 40ns/100m.
rated transmission rate (NVP): 72%.
Tensile resistance: (max) 250N.
Temperature range: -20℃~+75℃





APPLICATIONS & FEATURE

100 Base-T4

100 Base-TX

1000 Base-T (Gigabit Ethernet)

155 Mbps ATM

622 Mbps ATM





SPECIFICATIONS




Model Outdoor Cat5e STP/FTP Cable
Conductor Size 24AWG
4*2*1/0.51mm (0.50mm, 0.48mm, 0.45mm, 0.4mm, 0.38mm)
Conductor Material BC/CCU/CCA/OFC/CCS
Nuber Of Conductor 4P
Shiled FTP/STP etc
Flammability Grade: CMX,CM,MP,CMG,MPG,CMR,MPR
Indoor / Outdoor Single jacket / Double jacket
Insulation Material PE , HDPE
Insulation Thickness 0.515mm
Number of pairs: 4 pairs Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
Jacket Material PVC, ROHS PVC, LSZH PVC
Jacket Thickness 0.92-0.95mm
DC Resistance(Max.) 9.5Ω/100m
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000MΩ.km
Transmission Velocity 65%
Operating Temperation -20 °C - +75 °C
PVC Jacket Color As client’s request.
Print Words On Cable CAT5E 4P 24AWG VERIFIED TO
EIA/TIA 568B.ISO/IEC 11801 EN501
or clients' request.
