|Type:||10/100M SFP Media Converter||Application:||LAN Network|
|Dimension:||95*70*26mm (external Power)||Operating Voltage:||AC 220V/ DC +5V|

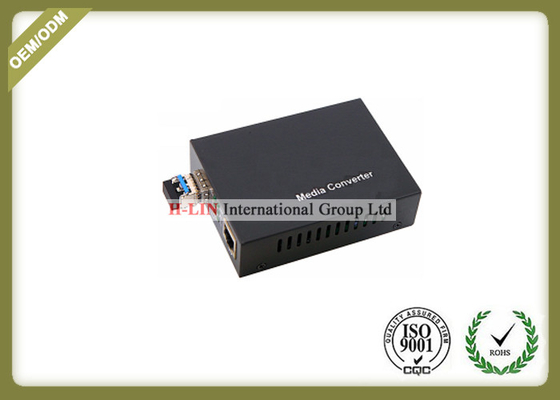

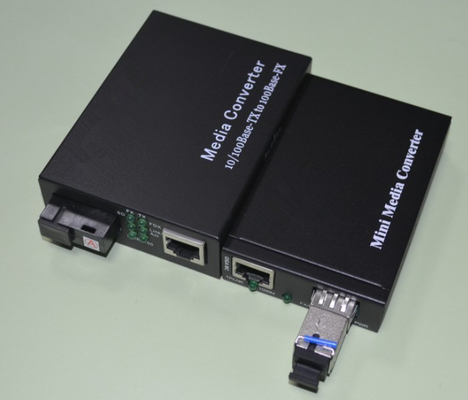

10/100M SFP Fiber Media Converter Adopting External Power 1 SFP slot + 1 10/100M RJ45 port
10/100M adaptive fast Ethernet optical Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 100 Base-Tx and 100Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 120 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
1 SFP slot + 1 10/100M RJ45 port sfp media converter
IEEE802.3, 10/100Base-TX and 10/100Base-FX
2.2 Technical Parameters
|Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter|
|Number of Network Ports||1 channel|
|Number of Optical Ports||1 channel|
|NIC Transmission Rate||100Mbit/s|
|NIC Transmission Mode||100M adaptive with support for automatic inversion of MDI/MDIX|
|Optical Port Transmission Rate||100Mbit/s|
|Operating Voltage||AC 220V or DC +5V|
|Network Ports||RJ45 port|
Optical Port: SC LC (Optional)
Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um
Wavelength: Single-Mode: 1310/1550nm
IEEE802.3x and collision base back pressure supported
Working Mode: Full/half duplex supported Transmission Rate: 100Mbit/s
with error rate of zero
3.1 Operating Voltage
AC 220V/ DC +5V
3.2 Operating Humidity
Operating Temperature: 0℃ to +50℃
Storage Temperature: -20℃ to +70℃
Humidity: 5% to 90%
MTBF > 100,000 hours;
Replacement within one year and non-charge repair within three years guaranteed
1. What does H-LIN supply?
Fiber optical assembling and accessories for FTTH solutions
Fiber optical Transmission products for Telecommunications and Networking.
2. How about your price and lead time?
The price is 50-90% off retail price
Lead time is less than 1 week for general products, in some special case, depending on our workrelationship, can prepare goods in advance once the order confirmed.
The good forwarder channel of us can save delivery time and cost for customers.
3. What mode of transportation I can select?
By Express (DHL,UPS,TNT,Fedex…), calculated by gross weight
Advantage: short time, safe, easy(door to door delivery),goods can be sent to appoint address.
Disadvantage: when the size of packing is heavry compared to the actual weight ,the cost is not very workable.And usually only favorable for above than 21kg weight.
By Air (Any flight), calculated by gross weight
Advantage: short time, safe, the cost is lower than by express in general.
Disadvantage: goods just sent to appoint airport, customers need take goods from airport by themselves.
By Sea, calculated by volume
Advantage: very cheap for big qty, safe
Disadvantage: long time
4. What's your product warranty policy?
All our products carry 2 years warranty after shipment.
5. Do you provide free samples?
Yes, some low-value goods can be offered as samples free of charge, the buyer bear the shipping cost in any case.
6. How do I pay?
We accept T/T, western union and L/C, normally it is T/T 100% in advance, when value is more than 20,000usd, we accept 30% in advance, balance before shipment or against copy of B/L.
7. What's your working hours?
Monday-Saturday, 8:00-18:00(Beijing time, GMT+08:00)
8. Can I become an exclusive distributor of H-LIN products in my area?
Yes, it is possible if we have not representative in your region, the best start is to prove your good intention with regular orders over a period of time.
