19 Inch 2U Rackmount Managed Media Converter Chassis Support SNMP TELNET 5

China 19 Inch 2U Rackmount Managed Media Converter Chassis Support SNMP TELNET 5 supplier
19 Inch 2U Rackmount Managed Media Converter Chassis Support SNMP TELNET 5 supplier 19 Inch 2U Rackmount Managed Media Converter Chassis Support SNMP TELNET 5 supplier

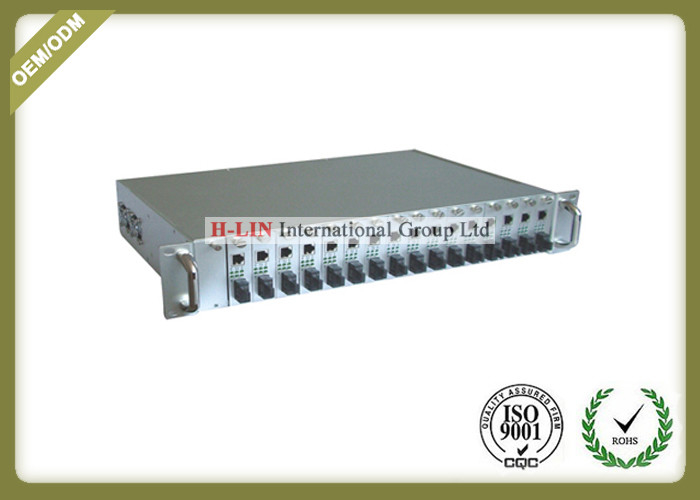

Large Image :  19 Inch 2U Rackmount Managed Media Converter Chassis Support SNMP TELNET 5

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: HL-MDR-17A/B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1pcs a carton
Delivery Time: 1-3days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000
Contact Now
Detailed Product Description
Type: SNMP Managed Media Converter Application: LAN Network
Operating Voltage: DC5V, 12A Weight: 6.5kg
Warranty: 3 Years

19’’ 2U 17slots rack-mount chassis for managed media converters ,dual power supply with NMS function



The difference of Managed Media converter chassis and Unmanaged Media Converter Chassis:



Managed Media converter chassis can be freely set, various parameters, port bandwidth, speed limit what. Unmanaged Media converter chassis is fixed, can not change.



Overview:

1, Support WEB based management

2, Support SNMP management

3, Support Console management when emergency

4, Support TELNET 5,The software can be upgrad...







(1). Contents of system
The main contents of managed system is listed below :
1. Net manageable module
It is the key-unit of the system , used to collect the relational information from the media converters installed in the chassis , and manage the functions of media converters . It has one general 10/100M RJ45 port and one general RS232 console port .
2. Full range of Wintop manageable media converters or other manageable cards.
3. 17 slots rack-mounted chassis
19 inch 1U rack-mount chassis , with 17 slots ,can support 1 pc Net manageable module and 16 pcs manageable media converters . Normally it will be installed in center ,so that the user can manage it easily . It has dual power supply ,support NMS function .The fans can be managed .
4. Manageable stand-alone media converters in remote end .



(2). Manageable functions over view
wView manageable system supports full range of standards such as HTTP,SNMP,TFTP,TELNET …etc .The system has proper interface for each .


1. Support WEB based management
Our manageable system supports the management based on WEB . It is easy to be understood and used ,no need install special software , so that it is easier for the users .
2. Support SNMP management
Fully support SNMP , the users can manage the relational devices via any operating system , such as HP-OpenView .
3. Support Console management when emergency
Support local command-string management via Console port , the users can manage the devices via other networks such as Telephone System , in case the Ethernet networks failed .
4. Support TELNET
5. The software can be upgraded online via TFTP.

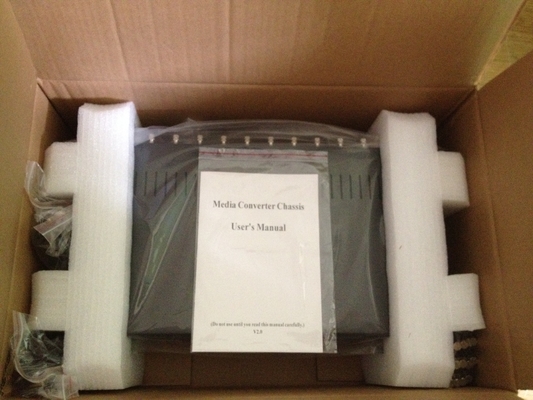

Production&Packge
19 Inch 2U Rackmount Managed Media Converter Chassis Support SNMP TELNET 5

FAQ
1. What does H-LIN supply?
Fiber optical assembling and accessories for FTTH solutions
Fiber optical Transmission products for Telecommunications and Networking.
2. How about your price and lead time?
The price is 50-90% off retail price
Lead time is less than 1 week for general products, in some special case, depending on our workrelationship, can prepare goods in advance once the order confirmed.
The good forwarder channel of us can save delivery time and cost for customers.
3. What mode of transportation I can select?
By Express (DHL,UPS,TNT,Fedex…), calculated by gross weight
Advantage: short time, safe, easy(door to door delivery),goods can be sent to appoint address.
Disadvantage: when the size of packing is heavry compared to the actual weight ,the cost is not very workable.And usually only favorable for above than 21kg weight.
By Air (Any flight), calculated by gross weight
Advantage: short time, safe, the cost is lower than by express in general.
Disadvantage: goods just sent to appoint airport, customers need take goods from airport by themselves.
By Sea, calculated by volume
Advantage: very cheap for big qty, safe
Disadvantage: long time
4. What's your product warranty policy?
All our products carry 2 years warranty after shipment.
5. Do you provide free samples?
Yes, some low-value goods can be offered as samples free of charge, the buyer bear the shipping cost in any case.
6. How do I pay?
We accept T/T, western union and L/C, normally it is T/T 100% in advance, when value is more than 20,000usd, we accept 30% in advance, balance before shipment or against copy of B/L.
7. What's your working hours?
Monday-Saturday, 8:00-18:00(Beijing time, GMT+08:00)
8. Can I become an exclusive distributor of H-LIN products in my area?
Yes, it is possible if we have not representative in your region, the best start is to prove your good intention with regular orders over a period of time.
