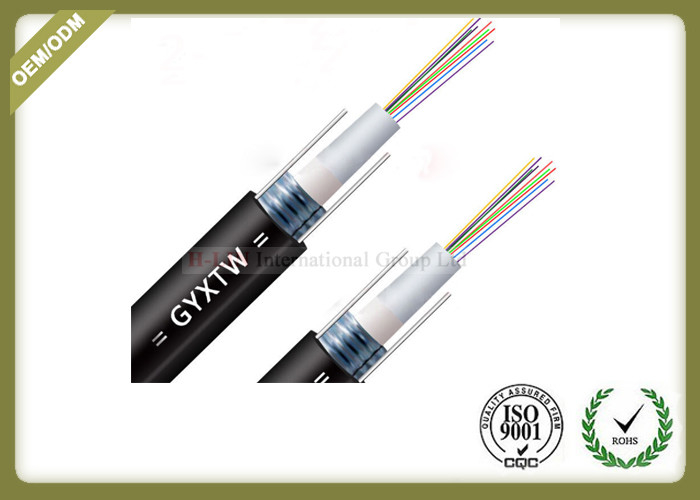

Armored Central Loose Tube Fiber Optic Cable 2 Parallel Steel Wire

China Armored Central Loose Tube Fiber Optic Cable 2 Parallel Steel Wire supplier
Armored Central Loose Tube Fiber Optic Cable 2 Parallel Steel Wire supplier Armored Central Loose Tube Fiber Optic Cable 2 Parallel Steel Wire supplier Armored Central Loose Tube Fiber Optic Cable 2 Parallel Steel Wire supplier

Large Image :  Armored Central Loose Tube Fiber Optic Cable 2 Parallel Steel Wire

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: Rohs,ISO
Model Number: GYXTW 2~24C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Kilometer/Kilometers
Price: negotiable
Packaging Details: wooden packaged with pallet ,rolled packed,or Package as per customer request
Delivery Time: 7-10Days
Payment Terms: Western Union, T/T
Supply Ability: 1000 Kilometer/Kilometers per Month
Contact Now
Detailed Product Description
Armoured:: Steel Tape Armoured Number Of Conductors: 2-24
Jacket: PE Laying Method: Aerial,Conduit,direct Buried
Strength Member: 2 Parallel Steel Wire Fiber Type: G652D
OD: 8.0+0.3mm Tube: Special Tube Filling Compound
High Light:

waterproof fiber optic cable

,

outdoor armored fiber optic cable

Outdoor Armored Central Loose Tube Fiber Optical Cable GYXTW 2-24 core







Description:



The structure of optical cable is to insert single-mode or multimode optical fiber into loose tube made of high modulus polyester material, and waterproof compound is filled in the bushing. The loose tube is coated with a double-sided chrome coated steel strip, and the steel belt and the loose tube are added with water resistance material to ensure the compact and longitudinal water resistance of the cable, and two parallel steel wires on both sides are placed in the polyethylene (PE) sheath.





Features:





Excellent water blocking tape has good anti seepage ability.



The steel belt is bonded to the outer sheath and metal strength to enhance the anti pressure and tensile properties of the optical cable, and is suitable for harsh environments such as high pressure resistance, rat proofing, etc.



Adopting high-quality national standards optical fiber core, the transmission speed is fast, stable, the transmission distance is far, and the optical fiber loss is low.







Characteristics:

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Crush resistance and flexibility

5. PSP enhancing moisture-proof

6. Two parallel steel wires ensure tensile strength

7. Small diameter, light weight and friendly installation









Application



Usable in Duct / Aerial







Fiber Parameter



No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.36
1550nm dB/km ≤0.24



Technical Parameter

Fiber Count Cable Diameter (mm) Cable Weight (kg/km)

Tensile Strength

Long/Short

Term (N)

Crush Resistance

Long/Short

Term (N/100mm)

Bending

Radius Static/Dynamic

(mm)

2~12 8 62 1000/3000 1000/3000 10D/20D

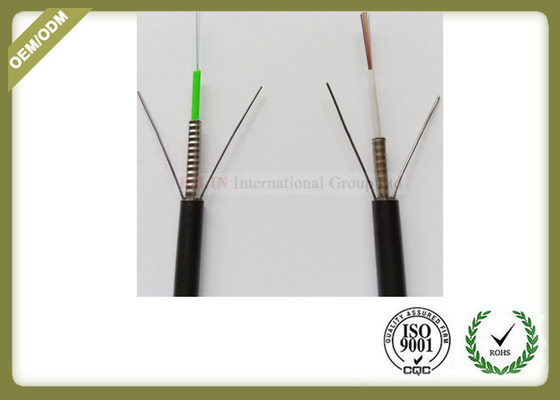

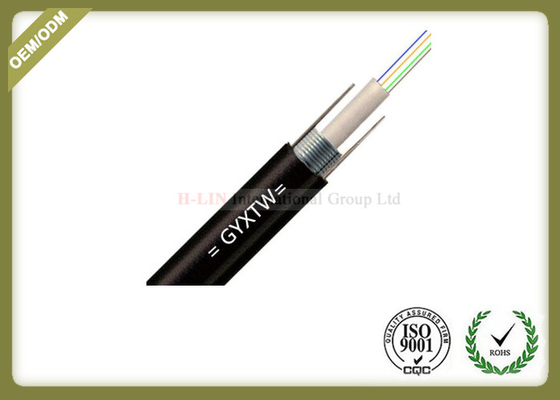

Cross Section:









Armored Central Loose Tube Fiber Optic Cable 2 Parallel Steel Wire





Armored Central Loose Tube Fiber Optic Cable 2 Parallel Steel Wire
