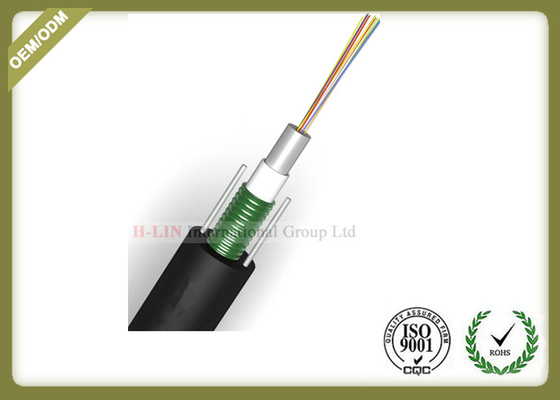

GYXTW Outdoor Fiber Optic Cable 8 Cores PE Jacket For Duct / Aerial

China GYXTW Outdoor Fiber Optic Cable 8 Cores PE Jacket For Duct / Aerial supplier
GYXTW Outdoor Fiber Optic Cable 8 Cores PE Jacket For Duct / Aerial supplier GYXTW Outdoor Fiber Optic Cable 8 Cores PE Jacket For Duct / Aerial supplier GYXTW Outdoor Fiber Optic Cable 8 Cores PE Jacket For Duct / Aerial supplier

Large Image :  GYXTW Outdoor Fiber Optic Cable 8 Cores PE Jacket For Duct / Aerial

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: Rohs,ISO
Model Number: GYXTW 4~24C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Kilometer/Kilometers
Price: negotiable
Packaging Details: wooden packaged with pallet ,rolled packed,or Package as per customer request
Delivery Time: 7-10Days
Payment Terms: Western Union, T/T
Supply Ability: 1000 Kilometer/Kilometers per Month
Contact Now
Detailed Product Description
Armoured:: Steel Tape Armoured Number Of Conductors: 4-24
Jacket: PE Laying Method: Aerial,Conduit,direct Buried
Strength Member: 2 Parallel Steel Wire Fiber Type: G652D
High Light:

waterproof fiber optic cable

,

outdoor armored fiber optic cable

Outdoor Armored Central Loose Tube Fiber Optical Cable GYXTW 2-24 core







Description:

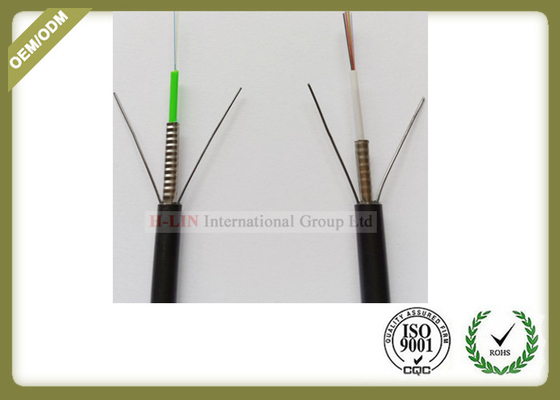

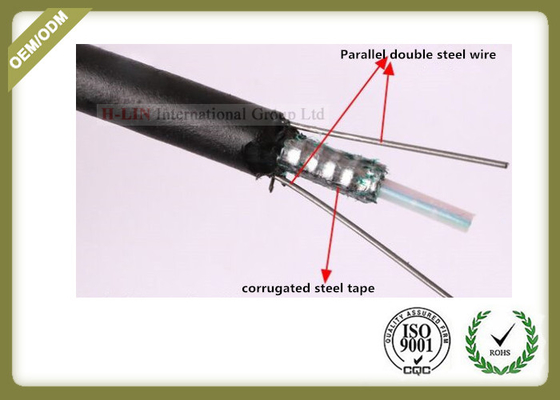

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.





Features:





Excellent water blocking tape has good anti seepage ability.



The steel belt is bonded to the outer sheath and metal strength to enhance the anti pressure and tensile properties of the optical cable, and is suitable for harsh environments such as high pressure resistance, rat proofing, etc.











Characteristics:

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Crush resistance and flexibility

5. PSP enhancing moisture-proof

6. Two parallel steel wires ensure tensile strength

7. Small diameter, light weight and friendly installation









Application



Usable in Duct / Aerial







Fiber Parameter



No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.36
1550nm dB/km ≤0.24



Technical Parameter

Fiber Count Cable Diameter (mm) Cable Weight (kg/km)

Tensile Strength

Long/Short

Term (N)

Crush Resistance

Long/Short

Term (N/100mm)

Bending

Radius Static/Dynamic

(mm)

2~12 8 62 1000/3000 1000/3000 10D/20D



Our advantage of materials:



Thick tensile steel wire, strong and durable, resistance to tensile



There are laser printed models, dates and meters on the optical cable jacket, which facilitate the laying of wires.





Adopting high quality national standard optical fiber core, the transmission speed is fast, stable, the transmission distance is far, and the signal loss is low.



GYXTW Outdoor Fiber Optic Cable 8 Cores PE Jacket For Duct / Aerial







GYXTW Outdoor Fiber Optic Cable 8 Cores PE Jacket For Duct / Aerial
