100G BASE - SR4 SFP Fiber Module , SFP Optical Transceiver MMF MPO Connector

China 100G BASE - SR4 SFP Fiber Module , SFP Optical Transceiver MMF MPO Connector supplier
100G BASE - SR4 SFP Fiber Module , SFP Optical Transceiver MMF MPO Connector supplier 100G BASE - SR4 SFP Fiber Module , SFP Optical Transceiver MMF MPO Connector supplier

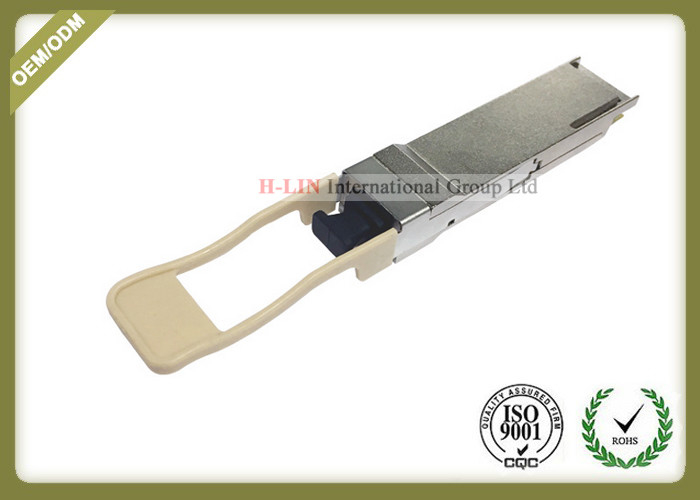

Large Image :  100G BASE - SR4 SFP Fiber Module , SFP Optical Transceiver MMF MPO Connector

Product Details:

Place of Origin: Shenzhen
Brand Name: H-Lin
Certification: ISO 9001、 CE
Model Number: HL-QSFP28-SR4

Payment & Shipping Terms:

Minimum Order Quantity: 5 PCS
Price: negotiable
Packaging Details: normal packing
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Data Rate: 100G Wavelength: 850nm
Source: VCSEL+PIN Distance: 100m
Connector: MTP/MPO-12 DDM: With

QSFP28 QSFP-100G-SR4 100GBASE-SR4 850nm 100m Optical Transceiver MMF MPO connector

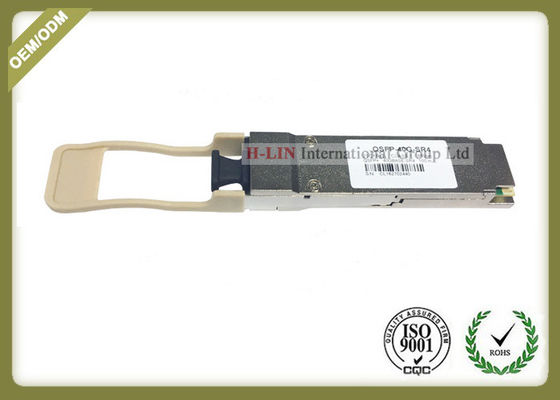

QSFP-100G-SR4 Optical Transceiver



Description:

The 100G QSFP28 SR4 optical transceiver integrates the transmit and receive path onto one module. It converts parallel electrical input signals into parallel optical signals, by a driven Vertical Cavity Surface Emitting Laser (VCSEL) array. The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels. All input data signals are differential and internally terminated. The receiver module converts parallel optical input signals via a photo detector array into parallel electrical output signals. The reCML) levels. All data signals are differential and support a data rates up to 27.9525Gb/s per channel.ceiver module outputs electrical signals are also voltage compatible with Common Mode LogicOn
This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.





Product Details:

Model QSFP-100G-SR4 TX Power -8~+2dBm
Form Type QSFP RX Sens -9.5dBm
Data Rate 100Gbps Media Type MMF
Wavelength 850nm DDM With
Reach 100m Connector MTP/MPO-12
Source VCSEL+PIN Temperature 0℃~+70 ℃





Specification:

MTP/MP0 optical connector
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
Up to 100m OM4 MMF Distance
4x28G Electrical Serial Interface (CEI-28G-VSR)
AC coupling of CML signals
Low power dissipation(Max:3.5W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-SR4
I2C Communication Interface





Application:

100GBASE-SR4
Infiniband QDR/DDR/SDR
100G Datacom connections



100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.





100G BASE - SR4 SFP Fiber Module , SFP Optical Transceiver MMF MPO Connector
