Outdoor Cat6 UTP Cable Double Jacket , 305 Meters / Roll Optical Ethernet Cable

China Outdoor Cat6 UTP Cable Double Jacket , 305 Meters / Roll Optical Ethernet Cable supplier
Outdoor Cat6 UTP Cable Double Jacket , 305 Meters / Roll Optical Ethernet Cable supplier Outdoor Cat6 UTP Cable Double Jacket , 305 Meters / Roll Optical Ethernet Cable supplier Outdoor Cat6 UTP Cable Double Jacket , 305 Meters / Roll Optical Ethernet Cable supplier Outdoor Cat6 UTP Cable Double Jacket , 305 Meters / Roll Optical Ethernet Cable supplier

Large Image :  Outdoor Cat6 UTP Cable Double Jacket , 305 Meters / Roll Optical Ethernet Cable

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: UL,ROHS,CE,QC,CCC.
Model Number: Cat6 UTP cable

Payment & Shipping Terms:

Minimum Order Quantity: 50 Box/Boxes
Price: negotiable
Packaging Details: 1. Pull out pox 305m/pull out box, 2boxes/outer carton. 2. Plastic reel 3. Wooden reel 4. As client' s request .
Delivery Time: 8days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60000 Box/Boxes per Month
Contact Now
Detailed Product Description
Conductor Material: BC/CCU/CCA/OFC/CCS Nuber Of Conductor: 4pairs
Conductor Size: 23AWG, 24AWG Insulation Material: PE , HDPE
Shiled: UTP Length: 305m(1000ft) / Roll Or 500m/Roll



UTP Cat6  Outdoor Network Cable



Product introduction:

Cat 6, is a standardized twisted pair cable for ethernet and other network physical layers that is backward compatible with the category 5/5e and category3 cable standards.

Compared with Cat 5 and Cat 5e, Cat 6 features more stringent specifications for crosstalk and system noise. The cable standard also specifies performance of up to 250 MHz compared to 100 MHz for Cat 5 and Cat 5e.

Whereas Category 6 cable has a reduced maximum length of 55 meters when used for 10GBASE-T, Category 6A cable (or Augmented Category 6) is characterized to 500 MHz and has improved alien crosstalk  characteristics, allowing 10GBASE-T to be run for the same 100 meter maximum distance as previous ethernet variants.



1. 23AWG OFC
2. Eco-friendly,pollution-free and new materials selected.Promise new material only.
3. Insulation: Solid HDPE.
4. Eco-friendly PE Jacket , high-temperature resistance,long working life.



Physical Electrical Characteristics



Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.



DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.





Specification
Model Cat 6 UTP Outdoor Cable
Conductor Size 23AWG, 24AWG
Stranded 7x0.12mm/7x0.16mm/7x0.20mm
Conductor Material BC/CCU/CCA/OFC/CCS
Nuber Of Conductor 4pairs
Shiled UTP/FTP/STP/SFTP /SSTP
Flammability Grade: CMX,CM,MP,CMG,MPG,CMR,MPR
Indoor / Outdoor PVC jacket / PEjacket
Insulation Material PE , HDPE
Insulation Thickness 0.55mm

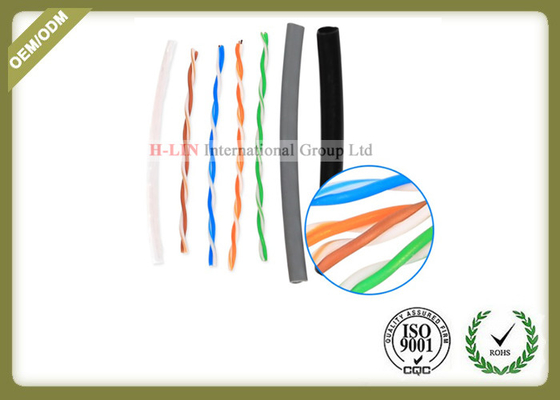

Number of pairs: 4 pairs Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
Jacket Material PVC, ROHS PVC, LSZH PVC
Jacket Thickness 0.92-0.95mm
DC Resistance(Max.) 9.5Ω/100m
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000MΩ.km
Transmission Velocity 65%
Operating Temperation -20 °C - +75 °C
PVC Jacket Color Black or As client’s request
Print Words On Cable CAT6 4P 23AWG or clients' request





Applications
10Base-T4
100Base-TX
100Base-VG-ANYLAN
155Mbps ATM
622 Mbps ATM
1000Base-T
1000Base-TX
10Gbase-T
Office/Internet cafes place/Engineering wiring/Computer room wiring

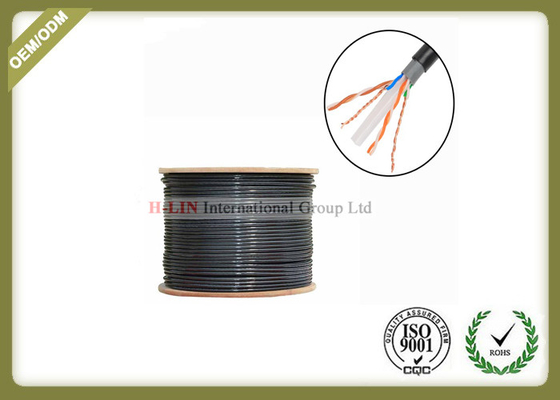

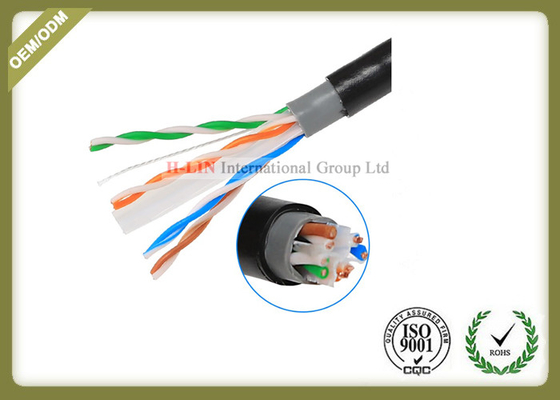

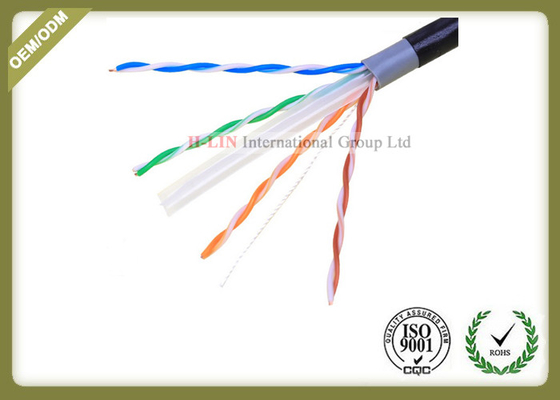

Outdoor Cat6 UTP Cable Double Jacket , 305 Meters / Roll Optical Ethernet Cable
