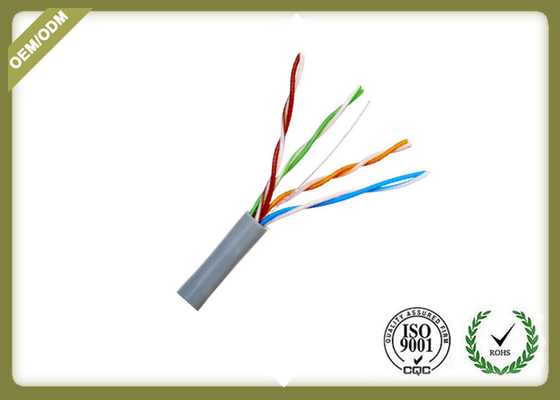

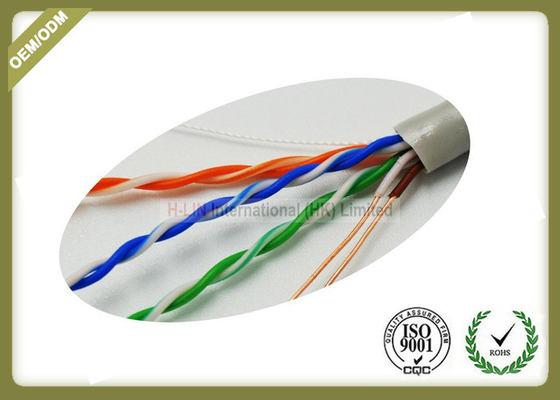

305m / Roll Cat5e UTP Network Cable 4 * 2 * 0.45mm Pass Fluke Test With Real OD

China 305m / Roll Cat5e UTP Network Cable 4 * 2 * 0.45mm Pass Fluke Test With Real OD supplier
305m / Roll Cat5e UTP Network Cable 4 * 2 * 0.45mm Pass Fluke Test With Real OD supplier 305m / Roll Cat5e UTP Network Cable 4 * 2 * 0.45mm Pass Fluke Test With Real OD supplier

Large Image :  305m / Roll Cat5e UTP Network Cable 4 * 2 * 0.45mm Pass Fluke Test With Real OD

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: UL,ROHS,CE,QC,CCC.
Model Number: Cat5e UTP cable

Payment & Shipping Terms:

Minimum Order Quantity: 50 Box/Boxes
Price: negotiable
Packaging Details: 1. Pull out pox 305m/pull out box, 2boxes/outer carton. 2. Plastic reel 3. Wooden reel 4. As client' s request .
Delivery Time: 8days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60000 Box/Boxes per Month
Contact Now
Detailed Product Description
Number Of Conductors: 8 Conductor: Solid Copper,Bare Copper,Pure Copper
Jacket Material: PVC Or LSZH Diameter: 4*2*0.48MM
Color: Blue,Grey , Black Or As Request Length: 305m(1000ft) / Roll Or 500m/Roll

Cat5e UTP Network cable 4*2*0.48mm 100% Solid pass fluke test with real OD 0.48mm





The conductor material of the wire is copper clad steel, copper clad aluminum, copper clad copper and oxygen free copper and so on. Because the cost of the material is different, it is different to the user group, the copper bar with the purity of copper finger copper is more than 99.9%, and the professional production process is added to the cable test data to the national standard, commonly known as the test.






Switzerland imported equipment, the United States ANSI/TIA/EIA-568B standard, superior performance, can replace similar imported products.
Internal conductor pure copper single core 24AWG 0.51mm for engineering wiring, multi ply processing jumper
Features 1: internal conductor SFS (skin foam skin) process or solid PE insulation, insulation materials, Dow Chemical Corporation PE.
Feature 2: Frequency bandwidth 350 Mb, provide the Swiss Aisha test report (2 million universal testing system, better than FLUKE test equipment) as acceptance criteria.
OEM service is provided. The price can be adjusted according to the change of raw material.
Products pursue quality, positioning high-end, high quality and high price. Through UL, CSA, RoHS authentication requirements.
UL ISO9001 management system.
Samples are provided free of charge. Accept small orders.
Advantage products: SFTP CAT 5E, FTP CAT6, SFTP CAT6,
Non shielding adopts easy pull box PULL BOX, shielded cable is packed with wooden axle. 305 M / axis or 500 m / axis





Advantage;



Long permissible operating temperature: ~40~+65 degree, laying temperature not less than -15 degree, 40 degrees at 98%, near end crosstalk, attenuation crosstalk ratio, echo loss and so on, usually only used in 100MB/S Fast Ethernet to realize the connection of desktop switch to computer



Product Structure


UTP CAT5e Cable
Conductor
24AWG (0.50mm)CCA/Bare Copper
Insulation
0.90mm HDPE
Ripcord
Yes
Sheath
5.0mm PVC / PE / LSZH
Mechanical Properties
Elongation
Min.300%
Tensile Strength
Min.1.68kg/mm²
Temperature Range
-25 up to +75℃


Electrical Properities
Conductor Resistance
Max.9.38Ω/100m
Capacitance Unbalance
Max.330pF/100m
Resistance Unbalance
Max.2%
Impedence
100±15Ω
Insulation Resistance
Max.150Ω/km
Spark Test
2000V
Mutual Capacitance
Max.5600pF/100m
Velocity of Propagation
67%




Cat5e UTP 4*2*0.45mm copper,305m/box,(the finised OD is 0.44~0.45)
Cat5e UTP 4*2*0.48mm copper,Fluke test,305m/box,(the finised OD is 0.47~0.48)
Cat5e UTP 4*2*0.5mm copper,Fluke test,305m/box,(the finised OD is 0.49~0.5)



20GP can load 1050reels, weight 20T,lead time 25days
