Large Spacing Fiber Optic Cable Self Sustaining Trace Resistant ADSS4 12 48 144 Core

China Large Spacing Fiber Optic Cable Self Sustaining Trace Resistant ADSS4 12 48 144 Core supplier
Large Spacing Fiber Optic Cable Self Sustaining Trace Resistant ADSS4 12 48 144 Core supplier Large Spacing Fiber Optic Cable Self Sustaining Trace Resistant ADSS4 12 48 144 Core supplier Large Spacing Fiber Optic Cable Self Sustaining Trace Resistant ADSS4 12 48 144 Core supplier

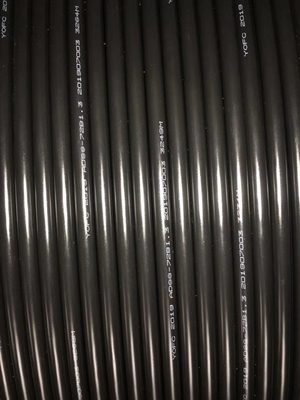

Large Image :  Large Spacing Fiber Optic Cable Self Sustaining Trace Resistant ADSS4 12 48 144 Core

Product Details:

Place of Origin: China
Brand Name: H-Lin
Certification: CE,Rohs
Model Number: HLIN-ADSS

Payment & Shipping Terms:

Minimum Order Quantity: 1km
Price: negotiable
Packaging Details: 1km~4km/drum,as client's request
Delivery Time: 7days after get payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50000 Meter/Meters per Day
Contact Now
Detailed Product Description
Type: ADSS Central Strength Member: FRP
Jacket: PE Or Beeter AT Outer Diameter: 12.5-14.9mm
Fiber Count: 2~144core Temperature Range: -40degree +70 Degeree

ADSS4-Core 12-Core 48-Core 144-Core Large Spacing Self-sustaining Trace-Resistant Power Optical Cable


Description:



All Dielectric Self-Supporting Optical Fiber Cable (ADSS) is a kind of non-metallic optical cable, which is composed of all dielectric materials and contains necessary supporting system. It can be directly suspended on power poles and towers. It is mainly used for communication routes of overhead high voltage transmission system and can also be used for other purposes. Communication lines under the aerial laying environment such as lightning multiple zones and large span.

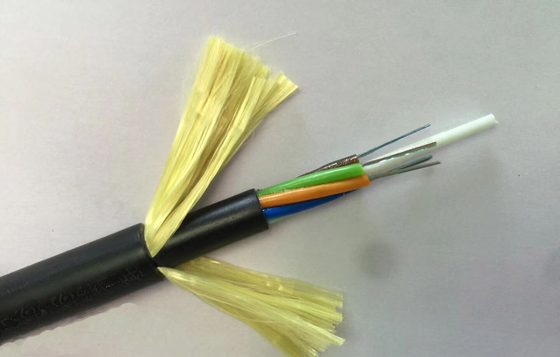

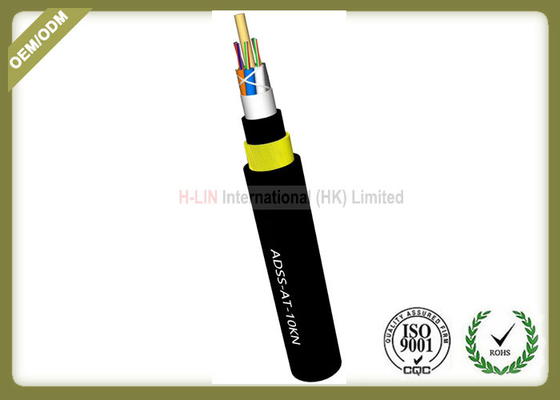

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.


ADSS optical cable product characteristics:
Optical fiber cable adopts PE or AT sheath, suitable for different grades of voltage.
Light weight and small cable diameter, reduce ice load, wind effect and load on tower and support.
Large span and maximum span of 1000 meters.
The imported aramid armoring technology has greatly improved the tensile capacity of optical cables.
Precise control of fiber length and cable stranding pitch ensures that the cable has excellent tensile properties and temperature characteristics.

Specification:

Model Number ADSS
Type Coaxial
Number of Conductors ≥ 10
Application Aerial fiber cable
Function Delivery signal light
Certification ADSS pass ISO9001,UL, TIL, CE
Sheath material PE or AT for adss fiber optic cable
Fiber type OS1/OS2,OM1,OM2,OM3,OM4
Length per roll 2km/3km/4km ADSS fiber
Marking printing
Fiber count 2core to 288 core
Strength member FRP











eature
Large Spacing Fiber Optic Cable Self Sustaining Trace Resistant ADSS4 12 48 144 Core




---Can be installed without shutting off the power
---Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years
---Package : 1~4km/ wooden drum


Applications
---Outdoor aerial applications
---Low voltage transmission system(≤12 kV)
---Railway & Telecommunication pole route
---Subscriber & Local Area Network
---Voice, data, video & imaging system
