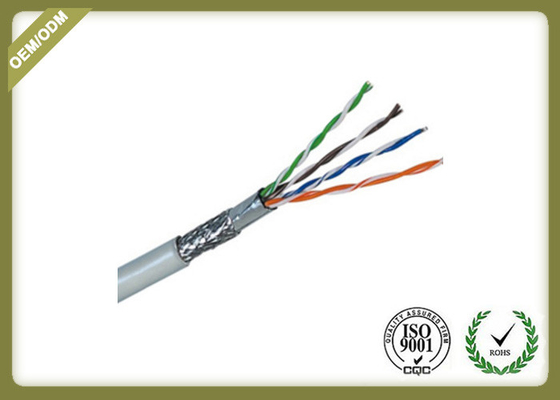

Shielded 24AWG Cat5e SFTP Network Fiber Cable With Pure Copper High Frequency 250MHz

China Shielded 24AWG Cat5e SFTP Network Fiber Cable With Pure Copper High Frequency 250MHz supplier

Large Image :  Shielded 24AWG Cat5e SFTP Network Fiber Cable With Pure Copper High Frequency 250MHz

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE,ROHS,UL,FLUKE TEST
Model Number: Cat5e SFTP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Box/Boxes
Price: negotiable
Packaging Details: 305mtr( 1000ft) / pull box. 2boxes packed in a outer carton. 100m per roll with PE 500m per wooden durm. Others packing Available
Delivery Time: 8days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Box/Boxes per Month
Contact Now
Detailed Product Description
Number Of Conductors: 8 Conductor Material: Bare Copper/CCAG/CCA/CCS
Insulation: HDPE Jacket Material: PVC,Available(PE,ROHS,LSZH,CMP)
AWG: 24AWG 0.51/0.5/0.48/0.45mm Color: Blue,Grey , Red Or As Request
Shield Type: SFTP,Available(UTP,STP,FTP,SSTP). Fire Rating: CMR,Available(CM,CMX,CMG,CMP)

Shielded 24AWG Cat5e SFTP Network Fiber Cable With Pure Copper High Frequency 250MHz



Description:





It is used of 1rip cord and 4pairs twisted

Pair1: Orange/White Orange

Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown



for pure copper conductor,it is 0.51mm(24AWG),It is generally applicated in 100Mb/s Fast ethernet,to achieve the connection for desk switch with computer.



PRODUCT DESCRIPTION

Rated Temperature:60℃,75℃

Reference Standard:TIA/EIA-568B

Bare Solid or Stranded Copper Conductor

Colour-coded PE Insulation

Shield: Al/Mylar and braid

PVC or LSZH jacket

Flammability grade :CMX/CM/CM Optional

UTP/FTP/STP/SFTP Optional



APPLICATIONS & FEATURE

100 Base-T4

100 Base-TX

1000 Base-T (Gigabit Ethernet)

155 Mbps ATM

622 Mbps ATM





ELECTRICAL SPECIFICATIONS



Shielded 24AWG Cat5e SFTP Network Fiber Cable With Pure Copper High Frequency 250MHz



Packing



Shielded 24AWG Cat5e SFTP Network Fiber Cable With Pure Copper High Frequency 250MHz









Shielded 24AWG Cat5e SFTP Network Fiber Cable With Pure Copper High Frequency 250MHz
