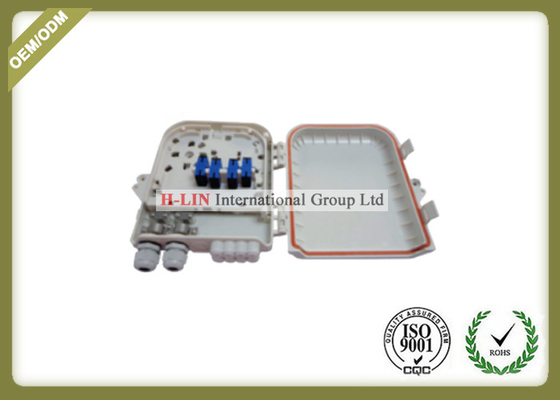

Mini Waterproof Fiber Optic Termination Box Patch Panel 8 Port Wall Mount / Pole Mount

China Mini Waterproof Fiber Optic Termination Box Patch Panel 8 Port Wall Mount / Pole Mount supplier

Large Image :  Mini Waterproof Fiber Optic Termination Box Patch Panel 8 Port Wall Mount / Pole Mount

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE ISO9001
Model Number: HL-POTB-008D

Payment & Shipping Terms:

Minimum Order Quantity: 50Pieces
Price: negotiable
Packaging Details: 1pc/box 20pcs/Carton
Delivery Time: 1week after get payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000Pieces per Day
Contact Now
Detailed Product Description
Application: FTTH System Dimension(mm): 206.8x215.8x52.7mm
Material: ABS Plastic Capacity: 8cores
IP Grade: IP65 Installtion: Wall Mounted
Cable Port: 1 Oval Port + 8 Drop Cable Port Splitter: PLC 1x2, 1x4, 1x8

Waterproof Fiber Optic Terminal Box 8cores ABS material (OTB) for wall mount or pole mount





1. provide a protective connection for cable and wiring pigtail.
2. make the metal component of optical cable insulated from the end shell of optical cable, and can easily lead out the grounding
3. provide the location of optical cable terminal and the space of optical fiber storage at the remaining end, so as to facilitate the installation operation.
4. the box body with enough impact strength is fixed, which is convenient for installation in different occasions.
5. may choose the hanging wall installation or directly placed in the groove and other installation methods.





Description:



Fiber optic terminal box is a FTTH mini optic terminal box,It is used in the end termination of residential buildings andvillas, to fix and splice with Pigtails or connected fast connectors can be installed on the outside wall.



Optical fiber terminal box is a cable terminal,one side is cable, the other side is pigtail, it equals to split cable into a single fiber cable equipment, installed on the wall at the user cable terminal box.Its function is to provide the welding between optical fibers, between fibers and pigtails, and the transfer of optical connectors. And provide mechanical protection and environmental protection for optical fiber and its components, and allow appropriate inspection to maintain the highest standard optical fiber management






Features:
Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x4,1x8, 2x4,2x8 PLC splitter.
Indoor or outdoor using, waterproof.
Wall mounting and pole mounting application.
1 oval inlet port, 8 outlet ports.


Installtion:
Mini Waterproof Fiber Optic Termination Box Patch Panel 8 Port Wall Mount / Pole Mount

Mini Waterproof Fiber Optic Termination Box Patch Panel 8 Port Wall Mount / Pole Mount




Production & Packing:





Mini Waterproof Fiber Optic Termination Box Patch Panel 8 Port Wall Mount / Pole Mount
