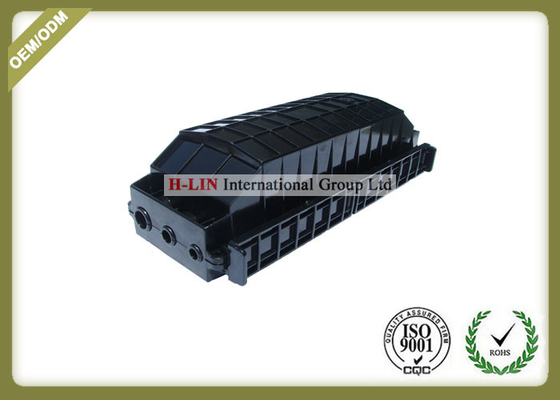

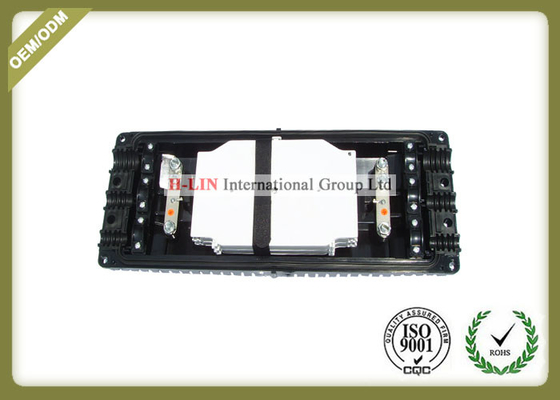

Rubber Sealing 3 In 3 Out Fosc Fiber Optic Closure , Outdoor Fiber Enclosure

China Rubber Sealing 3 In 3 Out Fosc Fiber Optic Closure , Outdoor Fiber Enclosure  supplier
Rubber Sealing 3 In 3 Out Fosc Fiber Optic Closure , Outdoor Fiber Enclosure  supplier Rubber Sealing 3 In 3 Out Fosc Fiber Optic Closure , Outdoor Fiber Enclosure  supplier

Large Image :  Rubber Sealing 3 In 3 Out Fosc Fiber Optic Closure , Outdoor Fiber Enclosure

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: ISO
Model Number: HL-FOSC-H309

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: negotiable
Packaging Details: 1pc for a separate box 8pcs for a carton,size:51*47*52cm
Delivery Time: 1week after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Cable Port: 3 In 3out Capacity: Max 144core
Material: PC Dimension (cm): 45*21.6*16
Cable Diameter: 8-23MM Weight/pc: 3kg
Sealing Way: Rubber Seal The Application Of Temperature: -40℃~65℃

Rubber sealing Type 3 in 3 out 144cores Horizontal Fiber Optic Splice Closure with PC material





Description about Fiber Optic Closure:





Classification

According to the structure, they can be classified into cap and horizontal.
Classified according to shell materials, they can be divided into plastic shell and metal shell.
According to the way of optical cable connection, it is divided into direct connection and split connection.
Classified according to the sealing method, it is divided into thermal shrinkage seal type and mechanical seal type.
According to the laying mode of optical cable, there are types of overhead, pipeline (tunnel) and directly buried.
According to whether the adapter can be assembled or not, it can be divided into two types: assembled adapter and non-assembled adapter.



Fiber Optic Closure, also called the cable connection  box, is the end of the local access cable, and then through the optical fiber jumper access to optical switch, which prevent the nature of hot and cold, light, oxygen and microbial materials caused by aging, and has excellent mechanical strength.The shell of optical closure and its body structure can  bear the worst environmental change, at the same time, flame retardant, waterproof, shock, impact, stretch and twist protected cable.



Features:



The Fiber Optic Closure has the function for protecting and splicing,The body adopts the reinforced plastic material, which has the advantages of high strength, corrosion resistance, mature structure, reliable sealing and convenient construction.



Detailed Description:





This model Fiber Optical Closure, with innovative design, manufacturing and material selection, excellent sealing technology, to ensure the reliability and stability of the product. It can provide reliable, solid and flexible protection for the direct, terminal or divergent splicing of optical fiber.

Performance:
Aging resistance: good stability for heat, heat radiation, air, ozone and so on.
Corrosion resistance: strong resistance to dilute acids, salts, oxidants, aliphatic hydrocarbons and so on.
Sealing technology: The use of reusable components to open seal  to ensure good airtightness and waterproof performance.
Mechanical properties: The use of high-strength engineering plastic shell that able to withstand harsh conditions such as vibration, impact, cable stretch distortion and strong temperature changes.
Locking device: Does not require special tools, easy to install and open the duplicate.
Connection function: using stacked flip type structure, it does not need to disassemble other splice tray.
Capacity:
Splice Tray capacity: single core bundle, 12 cores per splice tray,
double core bundles, 24 cores per splice tray.
Maximum capacity fiber optic cable access: the largest diameter of the port optical cable is 23cm
The maximum holds 6 splice trays.





Application:
aerial, direct-buried, wall-mounting, duct-mounting





Specifiaction:





Product outlook size 450*216*160mm
Product Material quality PC(Polycarbonate)
Product weight Approximately 3kg
Suitable diameter of cable 8~23mm
Fibers/Tray 12 or 24
Max capacity(F) 144 in two layers
Outside box size 51*47*52
Each packing quantity 8pieces



Components:





Rubber Sealing 3 In 3 Out Fosc Fiber Optic Closure , Outdoor Fiber Enclosure



Package:





Factory Price FTTH Indoor 24FO ABS Fiber Terminal Enclosure  with splice tray
