Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour

China Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour supplier
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour supplier Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour supplier Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour supplier Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour supplier Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour supplier

Large Image :  Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-Lin
Certification: CE/ROHS/IOS9001
Model Number: SM-D

Payment & Shipping Terms:

Minimum Order Quantity: 20 Piece/Pieces
Price: negotiable
Packaging Details: 1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Delivery Time: 5days after payment
Payment Terms: T/T, Western Union
Supply Ability: 4000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Mode: Single Mode Fiber Counts: Duplex
Connector Type: SC/LC/ST/FC Ferrule End Face: PC/UPC/APC
Jacket: PVC/LSZH Length: 3/5/10/15/20/30m Or Customized



SC/LC/FC/ST Singlemode Duplex Fiber Patch Cord





Performance Index



Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45

>50

>60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃)

-40~+80



Product Description



Fiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end of fiber optic cable.



Our extensive range of fiber patch cables are terminated with state-of-the-art connectors, which available in any combination of FC,ST, SC and LC with PC, UPC or APC polish types to meet your standard or custom configurations. Our fiber jumpers have been geometrically inspected with interferometers and tested with automated insertion loss and reflection test equipment to ensure exceptional performance.



Parts of patch cord combination



Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour





Features



(1) Ceramic Ferrule;

(2) High return loss;

(3) Low insertion loss;

(4) Good repeatability and and exchangeability;

(5) Excellent Polished and 100% tested;

(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.



Applications



Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment

CATV



Product Show

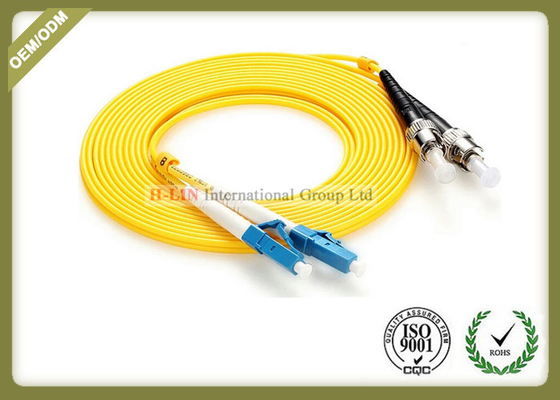

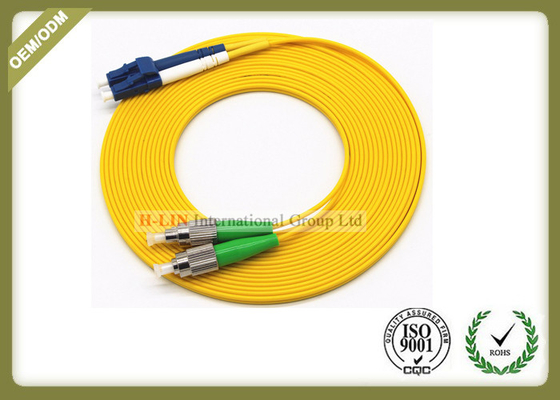

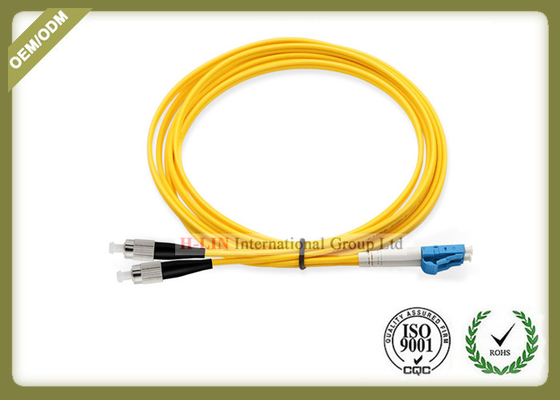

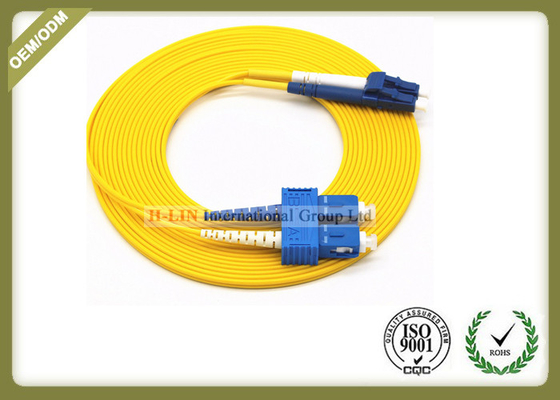

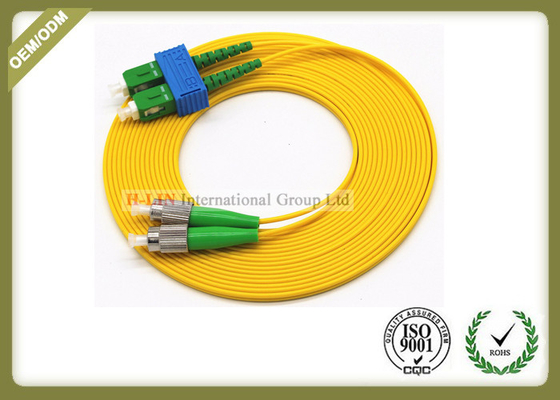

Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
