MTP MPO TO LC Fiber Optic Patch Cord , Multimode Fibre Patch Leads

China MTP MPO TO LC Fiber Optic Patch Cord , Multimode Fibre Patch Leads supplier
MTP MPO TO LC Fiber Optic Patch Cord , Multimode Fibre Patch Leads supplier MTP MPO TO LC Fiber Optic Patch Cord , Multimode Fibre Patch Leads supplier MTP MPO TO LC Fiber Optic Patch Cord , Multimode Fibre Patch Leads supplier

Large Image :  MTP MPO TO LC Fiber Optic Patch Cord , Multimode Fibre Patch Leads

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: MPO-LC 8/12/24core patchcord

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1 piece in a separate plastic bag,
Delivery Time: 5days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Day
Contact Now
Detailed Product Description
Product Type: MPO Fiber Patch Cord Connector: MPO-LC, SC, ST, MPO, FC
Fiber Core: 6core/12core/24core Length: 1m,2m,3m,5m ,10m Or As Requested
Fiber Mode: OM3/OM2/SM Material: LSZH/PVC

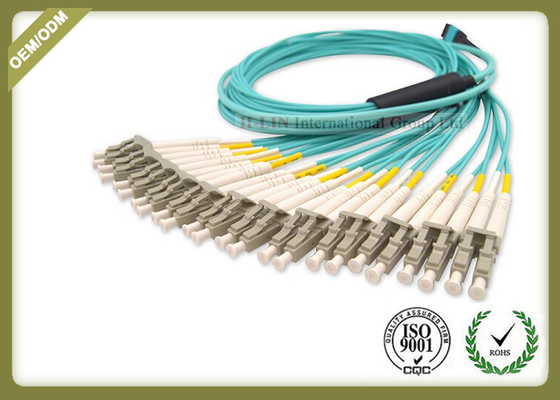

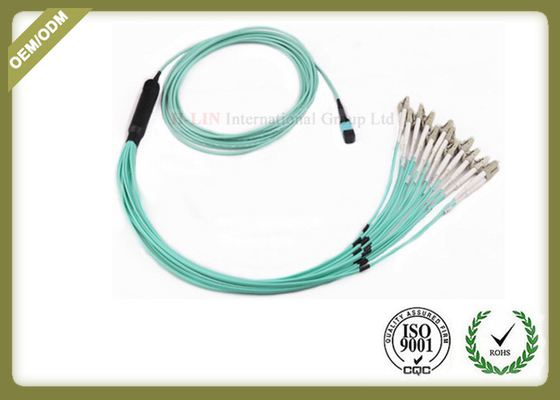

8core 12core 24cores MTP MPO TO LC Om3 Multi-Mode Fiber Optic Patchcord





Product Description:


MPO optical fiber jumper refers to all kinds of optical fiber jumpers that can be produced after MPO connectors and fiber optic cables are processed. The MPO jumper can be designed with a 2~12 core, which can be up to 24 cores, and the 12 core MPO connector is the most widely used. The compact design of the MPO connector makes the MPO jumper core numerous and small. MPO fiber jumper is widely used in the wiring process, which requires high density integrated optical fiber line environment, FTTX and 40/100GSFP, SFP+ and other transceiver modules or devices inside and outside connection applications.





Parameter specifications of MPO fiber jumper



1, suitable connector type MPO terminal: MPO or MTP; branch end connector: FC, LC, SC, ST (customer selection)

2, optical fiber type single mode and multimode (PC)

3, working wavelength range 1250~1650nm 850nm, 1300nm

4. Test wavelength 1310nm, 1550nm 850nm, 1300nm

5. Face grinding type MPO:APC; branch end connector: UPC or APC MPO:PC; branch end connector: UPC or APC

6, insertion loss IL MPO: typical value is less than 0.50dB, the maximum value is less than 0.70dB

7, branch end connector: typical value less than 0.20dB, maximum value less than 0.30dB

8, the typical value of MPO: is less than 0.40dB, and the maximum value is less than 0.50dB

9, branch end connector: typical value less than 0.20dB, maximum value less than 0.30dB

10. Echo loss RL MPO:APC > 50dB

11, branch end connector: UPC equal to 50dB, APC equal to 60dB branch end connector: > 35dB

12, suitable for optical cable type MPO terminal: ribbon optical cable, bundle optical cable; branch end connector: 2 or 0.9mm loose casing fan out.

13, repeatability less than 0.10dB

14. The commutativity is less than 0.20dB

15, durability MPO: insert 500 times, the typical change value is less than 0.20dB

16, branch end connector: insert 1000 times, typical change value is less than 0.20dB

17. Vertical tension is more than 120N (except 0.9mm cable) or customer requirements.

18, working temperature -20 C to+70 C

19, storage temperature -40 C to+85 C





Advantages of MPO fiber jumper(patchcord)

1. Provide 12 to 144 core fiber connections

2, adopt 4, 8, 12, 24 core MPO connector, miniaturization to minimize failure and reduce wiring space.

3, it can smoothly upgrade from 10G to 40G and 100G network transmission, and support the delay index of 100G transmission.

4, according to the different configuration requirements of users, we choose multi-mode OM3, OM4 and single-mode G652D, G657A2 and other optical fiber specifications.

5. A new type of optical cable with circular and small outer diameter special structure is adopted to achieve smaller bending radius of main optical cable, so that storage and installation are convenient and fast.

6. Adopt dustproof, compression resistant and tensile protective sleeve at both ends, which can effectively protect the optical fiber cable and optical fiber connector from damage during transportation and installation.








Applications:


CATV/Access networks
Telecommunications
Data communications
Test equipment
Component termination







MTP / MPO Termination:





Type

Single mode

(APC polish)

Single mode

(PC polish)

Multi mode

(PC polish)

Fiber count 4,8,12, 24 etc. 4,8,12, 24 etc. 4,8,12, 24 etc.
Fiber type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss

Elite

Low Loss

Standard

Elite

Low Loss

Standard

Elite

Low Loss

Standard
0.35 dB 0.70 dB 0.35 dB 0.70 dB 0.35dB 0.50dB
Return Loss 55 dB 45 dB 20 dB
Durability 200 times 200 times 200 times
Operating Temperature -40°C ~ +80°C -40°C~ +80°C -40°C ~ +80°C
Test Wavelength 1310nm 1310nm

850nm







MTP MPO TO LC Fiber Optic Patch Cord , Multimode Fibre Patch Leads





The polarity of MPO fiber jumper

The TIA standard provides three kinds of polarity for the MTP fiber jump line, namely, the straight through (Type A), the cross type (Type B) and the line pair crossover (Type C), and the MTP fiber jumper with different polarity is suitable for different applications.
