LC UPC Fiber Optic Patch Cord  High Return Loss For Jumper Connection

China LC UPC Fiber Optic Patch Cord  High Return Loss For Jumper Connection supplier
LC UPC Fiber Optic Patch Cord  High Return Loss For Jumper Connection supplier LC UPC Fiber Optic Patch Cord  High Return Loss For Jumper Connection supplier LC UPC Fiber Optic Patch Cord  High Return Loss For Jumper Connection supplier LC UPC Fiber Optic Patch Cord  High Return Loss For Jumper Connection supplier

Large Image :  LC UPC Fiber Optic Patch Cord  High Return Loss For Jumper Connection

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-Lin
Certification: CE/ROHS/IOS9001
Model Number: LC-LC SX

Payment & Shipping Terms:

Minimum Order Quantity: 20 Piece/Pieces
Price: negotiable
Packaging Details: 1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Delivery Time: 5days after payment
Payment Terms: T/T, Western Union
Supply Ability: 4000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Jacket Colour: Yellow Or Customized Jacket: PVC/LSZH
Fiber Type: Simplex Mode: Single Mode
Connectors: LC UPC To LC UPC Length: 1m/3m/5m/Customized Length





LC/UPC-LC/UPC-SM-9/125-SX-PVC Jacket PatchCord



Description

The optical fiber pach cord is used to do the jumper connection from the device to the optical fiber wiring link. There is a thick layer of protection, usually used between the optical terminal and the terminal box, and is used in some fields, such as optical fiber communication system, optical fiber access network, fiber data transmission and local area network.







Features

(1) Ceramic Ferrule;

(2) High return loss;

(3) Low insertion loss;

(4) Good repeatability and and exchangeability;

(5) Excellent Polished and 100% tested;

(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.





Applications

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment

CATV





Performance Index



Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2/G657B OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃)

-40~+80

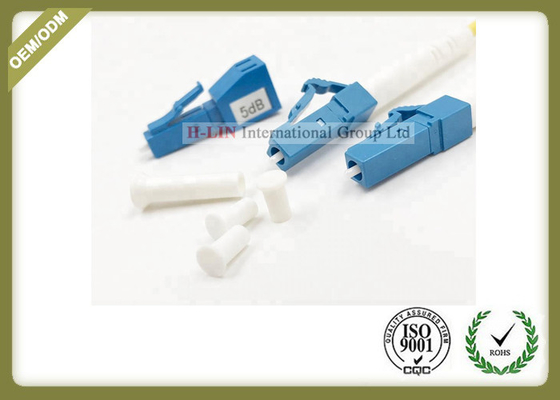

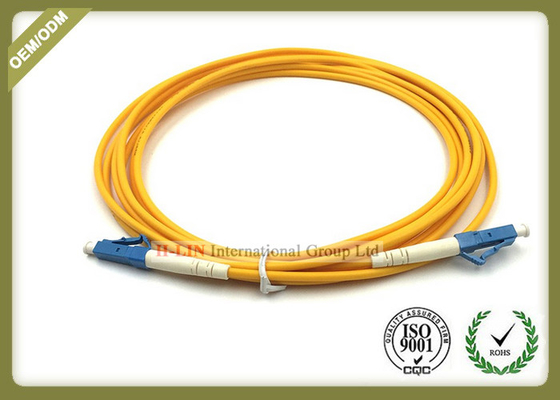

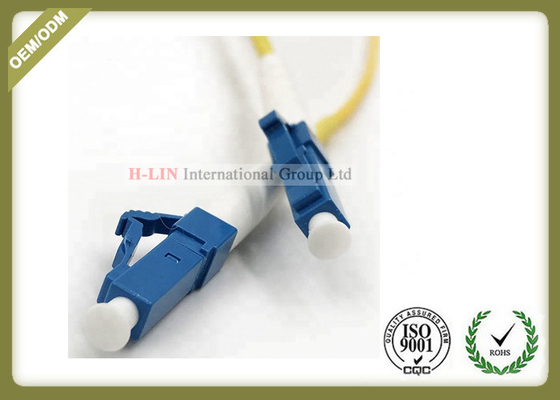

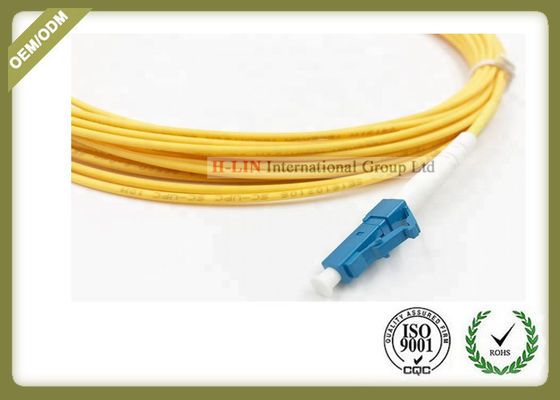

Detailed Images



  • High-performance single-mode optical fiber,fast and stable data transmission.
  • Advanced grinding  technology, Low insertion loss (<0.3db).
  • High-quality orginal parts,bear high temperature, environmental protection, strong.
  • New environmentally PVC or LSZH jacket, low-carbon non-toxic, strong tensile properties.

LC UPC Fiber Optic Patch Cord  High Return Loss For Jumper Connection
