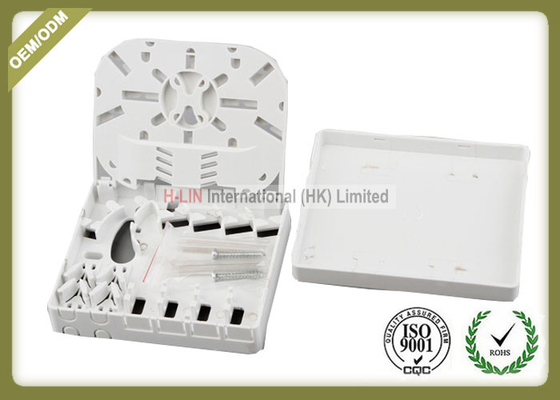

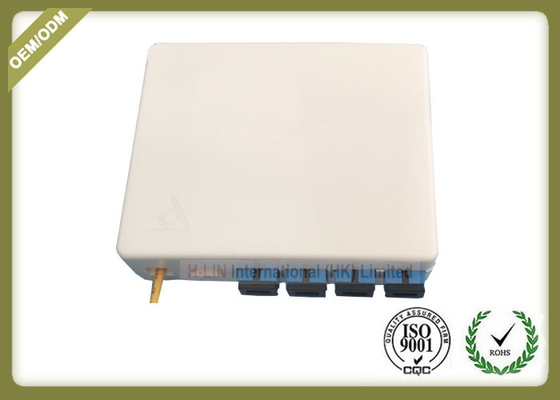

Small Size Fiber Optic Termination Box SC Adapters White Color For FTTH

China Small Size Fiber Optic Termination Box SC Adapters White Color For FTTH supplier
Small Size Fiber Optic Termination Box SC Adapters White Color For FTTH supplier Small Size Fiber Optic Termination Box SC Adapters White Color For FTTH supplier Small Size Fiber Optic Termination Box SC Adapters White Color For FTTH supplier Small Size Fiber Optic Termination Box SC Adapters White Color For FTTH supplier

Large Image :  Small Size Fiber Optic Termination Box SC Adapters White Color For FTTH

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE ISO9001
Model Number: HLIN-OTB04B-S

Payment & Shipping Terms:

Minimum Order Quantity: 20Pieces
Price: negotiable
Packaging Details: 1PC/BOX, 10 boxes/ Carton,
Delivery Time: 1week after get payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500Pieces per Day
Contact Now
Detailed Product Description
Fiber Count: 4 Dimension(mm): 100*80*29
Material: ABS Weight(kg): 0.064
Feature1: Small Size Feature2: Light Weight

New small size white color ABS material Fiber optic terminal box 4fibers with SC adapters for FTTH use

New product Indoor FTTH ABS Fiber optic terminal box 4fibers with SC adapters





Description:





The fiber optic cable terminal box is suitable for direct and branch connection of indoor fiber optic cable, and plays the role of protecting fiber optic connector.



It is suitable for building and villas residence to enter the cable end, fixed and tail fiber welding.





1.  The terminal box is made of the latest technology and is in line with the ISO9000-2000 standard.
2 .  The life span of 2. boxes is more than 20 years.
3.   Optical cable terminal box structure is compact, light weight, mechanical design structure in any operation, replacement, storage and transportation are reliable;
4.   This product has the function of introducing indoor optical cable or leather cable, leading out tail fiber and jumper wire, and has the function of protecting optical fiber.
5.,   has the function of preventing the optical cable terminal from being affected by the environment.
6.    provide the function of optical cable terminal placement and remaining optical fiber storage.
7.,   it has the function of wiring.



Product characteristics:





A, small size, light weight, beautiful appearance;

B, can be installed on the wall, with mechanical protection function;

C, can realize many kinds of optical fiber connection mode.

D can effectively manage optical fiber.

E. Increasing the turnable core, enlarging the space of the disc fiber, making the zones of the fusion zone and the wiring zone more obvious and reducing the line crossing.

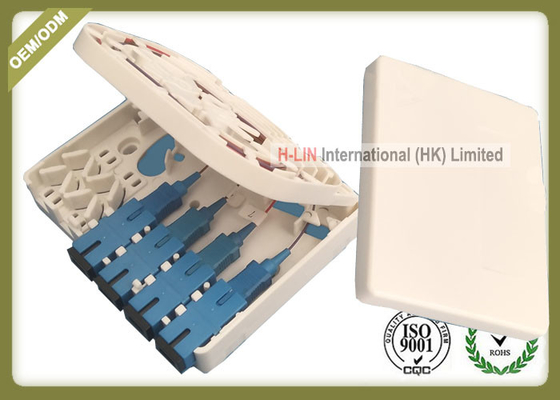

F, adapter type: SC (no ear adapter)







Technical indicators





Optical fiber curvature radius: 40mm

Additional loss of fiber optic disc: less than 0.01dB

Temperature range: - 40 C ~ + 70 C

Lateral pressure resistance: greater than 2000N / 10 cm

Shock resistance: greater than or equal to 20N.m

Protection level: IP65







Specification:





Product model: HLIN-OTB04B-S
Szie(mm)Long×Width×Height 100*80*29 Suitable indoor cable
Material: High quality ABS/PC Net weight(Kg) 0.064
Maximum fusion core number: 4(core) Fiber optic cable inlet / outlet number: 10 Presupposition /4





List of package:





Terminal box body 1set Instruction 1 copy
Heat shrinkable tube L=40 4pcs 3x100 tie 2pcs
M4×25 plastic expansion screws 2sets







Installation procedure:



1:Open the lid and use the plastic expansion screw in the attachment to fix it in the desired position.

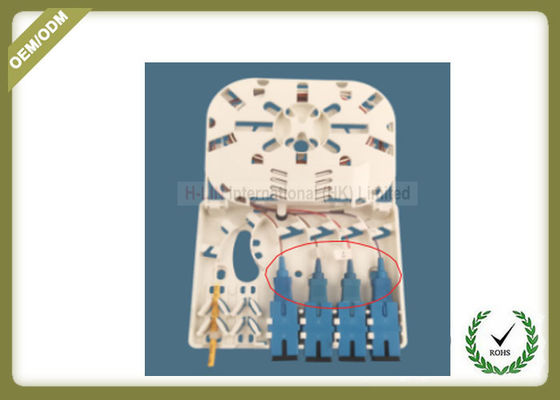

2, load the adapter (ear less adapter).





3. Stripping the cable, removing the outer sheath, the inner sheath, the loosening tube, cleaning and removing the oil filling paste in the cable, leaving the fiber length of 1.1-1.6 m, fixing the cable with a tie, leading the fiber into the core of the disc for reserved winding, and leading the end to the weld groove.





4, access to pigtail, the same will be introduced into the core of the tail fiber winding, the end to the weld.





5  Clsoe the lid and complete the installation.





Small Size Fiber Optic Termination Box SC Adapters White Color For FTTH





Small Size Fiber Optic Termination Box SC Adapters White Color For FTTH
