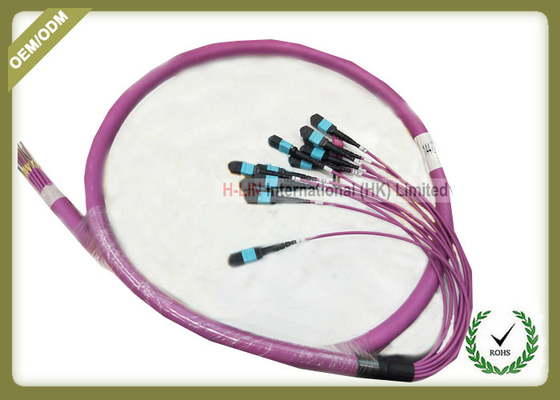

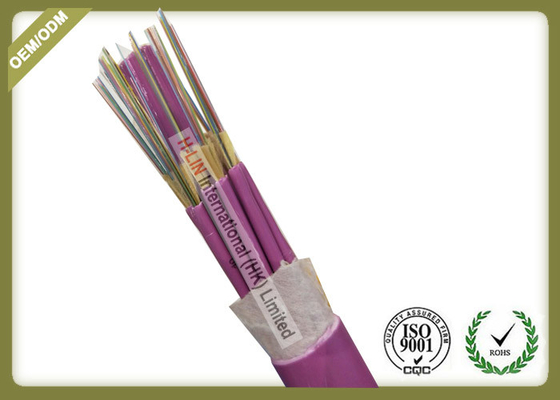

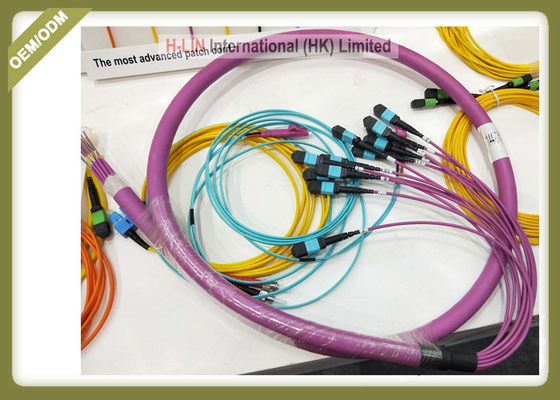

MPO Optical Patch Cord 144core Violet Color For Industrial Robots Intelligent System

China MPO Optical Patch Cord 144core Violet Color For Industrial Robots Intelligent System supplier
MPO Optical Patch Cord 144core Violet Color For Industrial Robots Intelligent System supplier MPO Optical Patch Cord 144core Violet Color For Industrial Robots Intelligent System supplier MPO Optical Patch Cord 144core Violet Color For Industrial Robots Intelligent System supplier

Large Image :  MPO Optical Patch Cord 144core Violet Color For Industrial Robots Intelligent System

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: MPO 144core

Payment & Shipping Terms:

Minimum Order Quantity: 20 Piece/Pieces
Price: negotiable
Packaging Details: 1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Delivery Time: 5days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Day
Contact Now
Detailed Product Description
Fiber Type: Multimode Connector: MPO
Jacket: PVC/LSZH/OFNP Length: 3m,5m ,10m,15or As Requested
Cable Type: Bundle Clour: Violet

High Quality Multicore MPO Patchcord 144core MM Violet Color





Product Description:





Adhere to the high-end line, quality selection is not ambiguous, MPO/MTP fiber connector can be used male-female connector, MTP/MPO multi-core fiber connector, precision multi-core core insert, push-pull locking structure, MPO/MTP fiber connection jumper can be used ribbon cable and micro-circular cable, MPO/MTP fiber connector conforms to IEC 61754, IEC 61755 & GR-1435-CORE, Japan and the United States import MPO/MTP optical fiber connector plugs, plug long life, connect and exchange data stable. Corning 50/125 OM3/OM4 10G 40G 100G imported multi-mode core, stable transmission, easy to weld light loss, MPO/MTP connector parts of plastic parts of new raw materials injection molding, metal parts of copper and stainless steel. High temperature, environmental protection, strong and durable, no deformation, no breakage, easy to fall off. It is more widely applied. The outer skin of optical cable is made of new PVC LSZH plastic material. It has bright luster, high toughness, non-fading, non-cracking and non-deforming. It is environmentally friendly, low smoke and non-toxic. Super 100N







MPO connector also has two methods, with fixed needle male head, and without needle female head, generally not required, the default is the mother head.





According to the connection mode of both ends, the arrangement order of optical fibers has special requirements. The arrangement of optical fibers includes parallel arrangement, cross arrangement, etc. Please confirm the connection mode with the form of drawings.








Specifiaction:





Type SM MM
parameter UPC APC UPC PC
IL ≤0.2dB ≤0.2dB ≤0.3dB 0.3dB
RL ≥50dB ≥60dB ≥50dB ≥35dB
Max attenuation 0.4dB@1310nm 0.4dB@1310nm 3.0dB@850nm 3.0dB@850nm
0.3dB@1550nm 0.3dB@1550nm 1.2dB@1300nm 1.2dB@1300nm
Attenuation SM:1310 nm≤0.35dB/km;1550 nm≤0.25dB/km
MM:850 nm≤3.0dB/km; 1300 nm≤1.0dB/km
Durability ≥1000/Matings
Working operating -30℃~ +70℃





Feature:



MPO OM3 multi-mode 10,000-megabit fiber jumper, compatible with 10G 40G 100G fiber module network card equipment, 100% full test, no defective products, no defective products, eliminate defective products, industry insertion loss is 0.5DB, production control standard insertion loss is 0.3DB, industry tension test standard 70N, production control standard 100N, industry return Wave loss UPC/48-50dB, APC/60dB, production measurement and control standard UPC more than 55dB, APC more than 65dB, new raw materials environmental protection and durability, insertion life more than 1000times, 3D interference PASS, process stability docking more accurate, light attenuation minimum transmission stability and reliability, optical fiber grinding section 400 times mirror inspection, no scratches, no spots, no pollution Dyeing, data transmission more smoothly, high and low temperature working temperature - 45 + 80 degrees, more widely used, ingenious craftsmanship fully meet the international telecommunications IEC - IEEE802.3 standards.





Application:





•Industrial automation and control bus system

•Industrial robots intelligent system and servo system

•Communication exchange system

•Digital multimedia systems

•Medical sensing system

•Power system,ect





MPO/MTP applications, compatibility is extensive, derived from high quality, MPO/MTP 1U 12 core 24 core 2U48 core 96 core wiring rack integrated module perfect fit connection, 10G 40G 100G fiber network card, 10 Gigabit fiber optic equipment seamless compatible transmission smoothly







MPO Optical Patch Cord 144core Violet Color For Industrial Robots Intelligent System
