Cat5e Flat Network Patch Cord With RG45 Connector With White PVC / LSZH Jacket

China Cat5e Flat Network Patch Cord With RG45 Connector With White PVC / LSZH Jacket supplier
Cat5e Flat Network Patch Cord With RG45 Connector With White PVC / LSZH Jacket supplier Cat5e Flat Network Patch Cord With RG45 Connector With White PVC / LSZH Jacket supplier

Large Image :  Cat5e Flat Network Patch Cord With RG45 Connector With White PVC / LSZH Jacket

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/ISO9001/FCC/UL
Model Number: Cat5e Flat patch cord

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: negotiable
Packaging Details: 1.PE packing/Carton. 2. Paper Packing/Carton. 3.Customized
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Insulation: HD-PE Conductor: CCS+CCA/CCA/CCU/BC
Conductor Size: 24AWG Number Of Conductors: ≥ 10
Jacket: PVC/LSZH/RoHs

Network Cat5e RJ45 Flat Patch Cord





Specification



  • Conductor Solid:Cat5e or Cat 6 Patch Cord
  • Conductor stranded :7*0.18mm(24AGW)
  • Conductor Material:.Copper
  • Cores/Pairs:8/4
  • Sheath:5.2±0.1mm PVC/ROHS/LSOH/PVC(UV)/PE
  • Insulation: High-density Polyethylene (HDPE)
  • Enhance connector: two-row RJ45 8P8C gold plating 3U”
  • It can be jelly filled inside.



Industrial Standards:



ISO9001,ULlisted, RoHS compliance,CE verified,ETL approval,



International ISO/IEC 11801; USA ANSI/TIA/EIA-568B







Features:



Mechanical Properties



Insert times ≥1500 times



Contact stability 20mΩ max variation



Pin retentively ≥110N



Elongation:Min. 300%



Tensile strength:Min.1.68Kg/mm2



Ratted Temperature: -20 up to +75°C







Electrical Properties (at 20°C)



Conductor Resistance Max.9.38Ω/100m
Resistance Unbalance Max.2%
Insulation Resistance Max.150Ω/Km
Mutual Capacitance Max.5600pF/100m
Capacitance Unbalance Max.330pF/100m
Impedance 100±15
Spark Test 2000v
Velocity of Propagation 67%

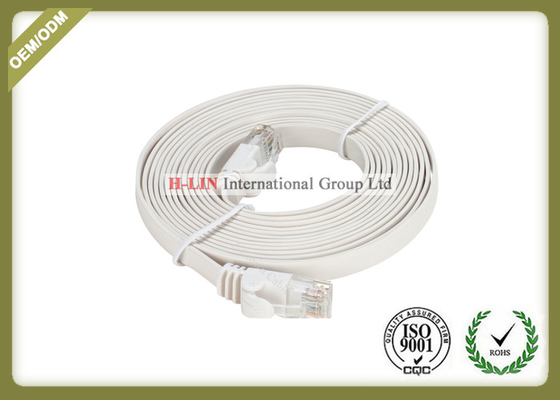

Cat5e Flat Network Patch Cord With RG45 Connector With White PVC / LSZH Jacket

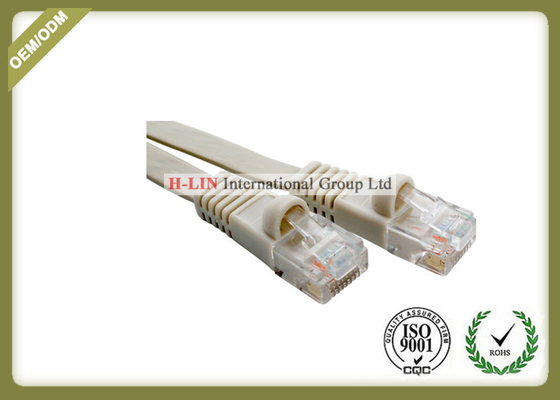

Cat5e Flat Network Patch Cord With RG45 Connector With White PVC / LSZH Jacket



Cat5e Flat Network Patch Cord With RG45 Connector With White PVC / LSZH Jacket



Packaging & Shipping



No. Length Cat5e UTP
PCS/CTN
Cat5e STP
PCS/CTN
Cat6 UTP
PCS/CTN
Cat6 STP
PCS/CTN
CTN Size
L*W*H
(CM)
0 Meter Ft
1 0.5m 1ft 400 300 300 200 40x38x30CM
2 1m 3ft 200 150 150 120 40x38x30CM
3 1.5m 5ft 150 120 120 100 40x38x30CM
4 2m 7ft 120 110 100 80 40x38x30CM
5 3m 10ft 100 80 80 60 40x38x30CM
6 5m 14ft 60 50 50 50 40x38x30CM
7 10m 25ft 40 25 35 25 40x38x30CM
8 15m 50ft 15 20 25 20 40x38x30CM
9 20m 100ft 20 20 15 15 40x38x30CM
10 25m 150ft 15 15 15 15 40x38x30CM





Package:



Cat5e Flat Network Patch Cord With RG45 Connector With White PVC / LSZH Jacket
