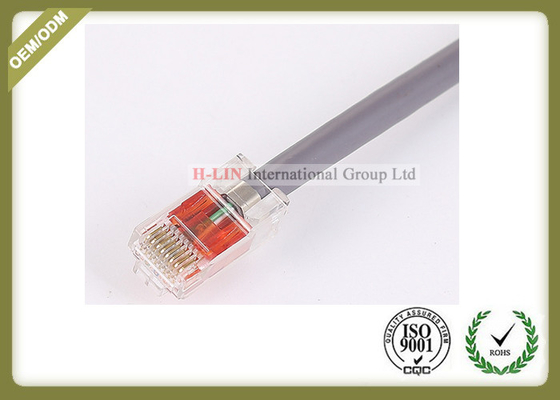

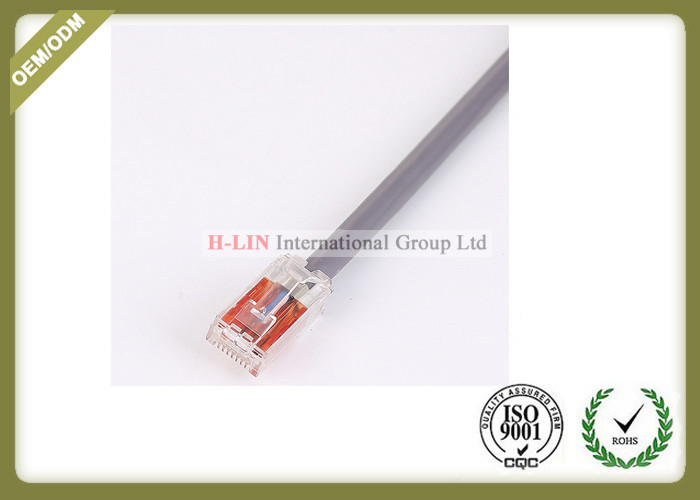

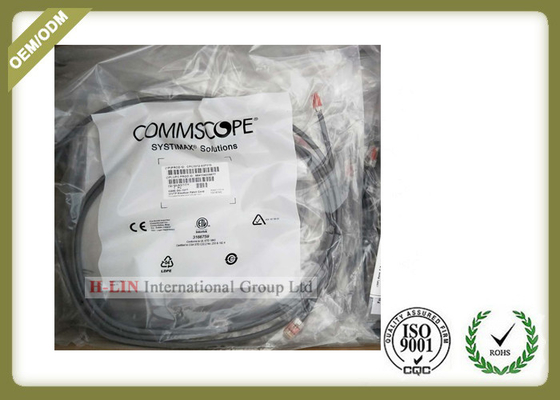

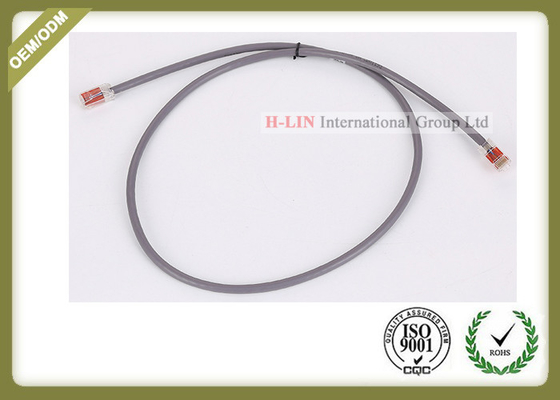

Grey Jacket Cat6 Patch Cable Unshielded Twisted Pair Shield GS8E-DG-10FT

China Grey Jacket Cat6 Patch Cable Unshielded Twisted Pair Shield GS8E-DG-10FT supplier
Grey Jacket Cat6 Patch Cable Unshielded Twisted Pair Shield GS8E-DG-10FT supplier Grey Jacket Cat6 Patch Cable Unshielded Twisted Pair Shield GS8E-DG-10FT supplier Grey Jacket Cat6 Patch Cable Unshielded Twisted Pair Shield GS8E-DG-10FT supplier Grey Jacket Cat6 Patch Cable Unshielded Twisted Pair Shield GS8E-DG-10FT supplier

Large Image :  Grey Jacket Cat6 Patch Cable Unshielded Twisted Pair Shield GS8E-DG-10FT

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/ISO9001/FCC/UL
Model Number: C-Cat6 UTP

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: negotiable
Packaging Details: 1.PE packing/Carton. 2. Paper Packing/Carton. 3.Customized
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Model: GS8E-DG-10FT Conductor: Pure Copper
Connector: RJ45 Jacket Color: Grey
Shield: Unshielded Twisted Pair Length: 3ft/5ft/7ft/10ft/customerized

Commscope Cat6 UTP patchcord with RJ 45 connection pure copper 3ft 5ft 7ft 10ft for option

Description:


Although Category 6 standards were created to ensure a minimum performance, many of today’s twisted-pair cables can barely meet these benchmarks when tested in real-world applications. But SYSTIMAX® GigaSPEED® XL has become the industry-leading Category 6 U/UTP solution in the world because it exceeds all industry standards by as much as six decibels.



Our GigaSPEED XL is so advanced it can support six connection points while still surpassing Category 6 performance criteria. It can also handle network line speeds in excess of 1 gigabit per second. Plus, when combined with GigaSPEED XL components, it can produce a high-performance connectivity solution that’s unmatched by any other. Best of all, we guarantee performance with our 25-year extended product warranty and applications assurance.



  • Available as InstaPATCH Cu preterminated assemblies
  • Compatible with imVision AIM intelligent platform
  • Offered in plenum, non-plenum and low smoke zero halogen (LSZH) versions





Product performance



1, enhanced CFPM design can fully guarantee the excellent performance of the new GS8E jumpers.

2, the design of patented technology reduces the instability of jumper performance to a minimum.

3. The barrier free features make the plug jump easier.

4, the design of patented technology reduces the instability of jumper performance to a minimum.

5, fully meet or exceed the requirements of GigaSPEED XL six standards.

6. Jumper length is between 1 and 30 meters. There are 10 colors to choose from.

Product structure:

1. RJ45 plug adopts soft tail structure to ensure connection between cable and crystal head.

2, wiring mode: 568B-568B, 568A-568B (cross connection), 568A-568A;

3, electrical transmission performance fully meets the requirements of TIA/EIA 568B six standards.

4, RJ45 crystal head inserting times >1000 times;

5, external diameter (mm) 6.50MM, impedance (omega) 100;

Product use:

1, data transmission of structured cabling, transmission of digital and voice and video signals;

2. Support all applications designed for the 6 cabling system.





Specification



Dimensions
Cord Length, maximum 30 m | 100 ft
Cord Length, minimum 1 m | 1 ft
Electrical Specifications
ANSI/TIA Category 6
dc Resistance, maximum 0.30 ohm
Safety Voltage Rating 300 V
Environmental Specifications
Environmental Space Non-plenum
Flammability Rating UL 94 V-0
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Safety Standard Anatel | cETL | ETL
General Specifications
Cable Type U/UTP (unshielded)
Interface, connector A RJ45 plug
Interface, connector B RJ45 plug
Jacket Color Dark gray
Brand GigaSPEED XL® | SYSTIMAX®
Interface Feature, connector A Standard
Interface Feature, connector B Standard
Package Quantity 1
Pairs, quantity 4
Mechanical Specifications
Conductor Type Stranded
Contact Plating Material Precious metals
Material Type Copper alloy | Polycarbonate
Plug Insertion Life, minimum 750 times
Plug Retention Force, minimum 133 N | 30 lbf
Wiring T568B
