1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket

China 1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket supplier
1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket supplier 1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket supplier 1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket supplier

Large Image :  1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE,Rohs
Model Number: FTTH-1core

Payment & Shipping Terms:

Minimum Order Quantity: 1 Roll/Rolls
Price: negotiable
Packaging Details: 1km/reel,2 reels/carton,or Package as per customer request
Delivery Time: 3-5Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Kilometer/Kilometers per Day
Contact Now
Detailed Product Description
Core Number: 1 Jacket Material: PVC/ LSZH/Customized
Mode Type: Single Mode/multimode Fiber: G652B,G652D Or G657A
Diameter: 2.0*5.0mm Self-Supporting Member Material: Steel
Weight: 18kg Color: Black/white/accoring To Requirement
High Light:

fiber drop cable

,

fiber optic drop cable



Outdoor FTTH Singlemode aerial drop cable with Steel wire Strength Member(1core FTTH)



Product Description


FTTH (Fiber to The Home) is a kind of transmission cable used to connect directly to a home user or a business user. With no limits to its bandwidth, wavelength and transmission technology and being suitable for the application of various new services, FTTH cable is the best solution for the connection between the internet backbone to the user’s desktop.

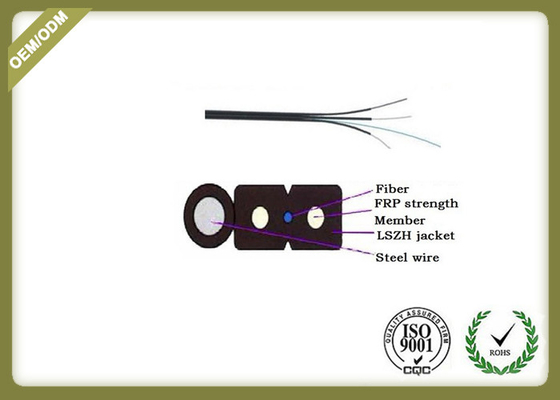

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.



Characteristics



  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
  • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
  • Simple structure, light weight and high practicability.
  • Novel flute design, easily strip and splice, simplify the installation and maintenance.
  • Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.
  • Low smoke, zero halogen and flame retardant sheath.It protect environment,can resist the ultraviolet rays,and prevent dehisce.



Application



  • Used in access network or as access cable from outdoor to indoor in customer premises .
  • Used as access building cable in premises distribution system.
  • Especially used in indoor or outdoor aerial access cabling.



Cable Parameters



Items Specifications
Fiber Count 1
Colored Coating Fiber Dimension 250±15μm
Color Blue
Strength Member Dimension 0.5mm
Material FRP
Self-Supporting Member Dimension 1.2mm
Material Steel
Jacket Dimension 5.0±0.2mm×2.2±0.2mm
Material LSZH
Color Black/White/Customized



Technical Parameters



Fiber Count Cable Diameter
mm
Cable Weight
kg/km
Tensile Strength Crush Resistance Bending Radius
Long/Short Term
N
Long/Short Term
N/100mm
Static/Dynamic
mm
1 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
2 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
4 (2.0±0.2)×(5.5±0.2) 21 60/120 300/1000 15/30
6 (2.0±0.2)×(6.0±0.2) 22 60/120 300/1000 15/30



Product Show

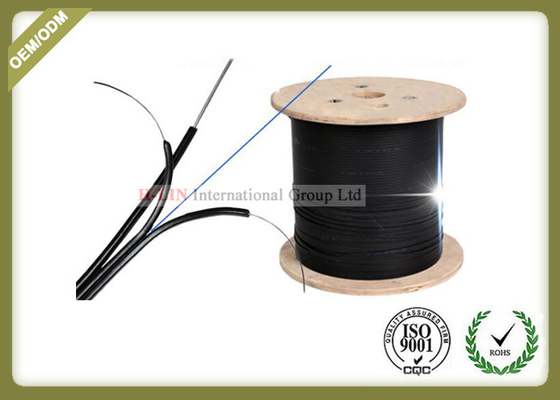

1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket

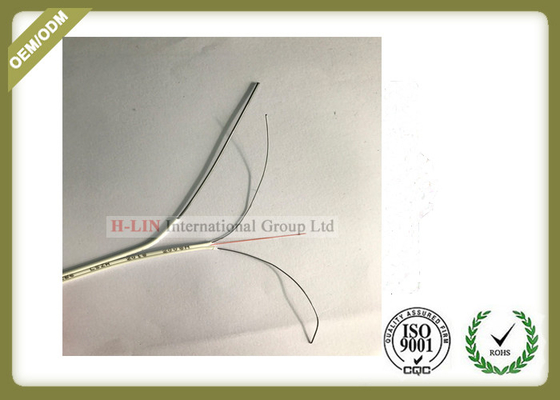

1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket
