MPO - LC Cold - Roll Steel Fiber Optic Distribution Box 50 / 125 OM3 Load With Patch Panel

China MPO - LC Cold - Roll Steel Fiber Optic Distribution Box 50 / 125 OM3 Load With Patch Panel supplier
MPO - LC Cold - Roll Steel Fiber Optic Distribution Box 50 / 125 OM3 Load With Patch Panel supplier MPO - LC Cold - Roll Steel Fiber Optic Distribution Box 50 / 125 OM3 Load With Patch Panel supplier MPO - LC Cold - Roll Steel Fiber Optic Distribution Box 50 / 125 OM3 Load With Patch Panel supplier

Large Image :  MPO - LC Cold - Roll Steel Fiber Optic Distribution Box 50 / 125 OM3 Load With Patch Panel

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-Lin
Certification: CE/FCC/ROHS
Model Number: HL-MPO-Cassete

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: negotiable
Packaging Details: 1pcs a separate box ,
Delivery Time: 1week after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pieces/week
Contact Now
Detailed Product Description
Material: Cold-roll Steel Fiber: 12
Adapter: MPO,LC Fiber Type: OM3
Color: Aqua Application: FTTH FTTB FTTX Network

MPO-LC 50/125 OM3 fiber optic LGX Module Cassete Load with Patch panel





Description of MPO





MPO (Multi-fiber Push On) is collectively called the MT series connector. The core of the MT series is used for the precise connection between the guide holes of the core and the guide pin (also called PIN needle) on the core of the MT series. MPO can have a 2~12 core design, up to 24 cores, and the most commonly used connector is the 8 core and the 12 core. The compact design of MPO makes its core number and small size. It is widely used in the connection applications of FTTX and 40/100G SFP, SFP+ and other transceiver in the high density integrated fiber line environment. H-LIN company, with more than 10 years of production management experience, can provide a variety of switching and non reconnecting MPO jumpers, with a wide variety of MPO, banded and bundled. Through a branch (round or square), a branch of a 2~24 core 0.9 or 2 optical cable can be transferred. The type of connection head is designated by the client, length and other requirements are chosen by the customer. . The products meet the requirements of Telcordia-GR-326, IEC and Rohs.



Description of MPO cassete:



MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.



MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.




Features & Application



Low insertion loss



LAN wiring between different buildings in the enterprise



Good interchangeability and pluggability



Optical link interconnection in optical active devices



a wide variety of MPO practices



The wiring in the communication base and the wiring in the wiring box



High quality inserting core, accurate alignment of PIN needle



Light signal connection in residential area, industrial area room and commercial building



Telcordia GR-326RCORE standard



Building dense wiring system



Meet the requirements of ROHS



Optical fiber communication system, cable television network, telecommunication network.



The drawings can be provided to provide MTP



Metropolitan area network, wide area network, FTTx







Item Specification
Connector type MPO
Fiber SM(PC)or OM3 MM
Operating wavelength 850nm, 1300nm
Test wavelength 850nm, 1300nm
Endface polishing PC
Insertion loss MPO:Typical ≤ 0.40dB,Max ≤ 0.75dB
Return Loss ≥50dB
Suitable fiber type MPO:Ribborn or Bundle type cable
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 500 typical change values are ≤0.20dB
Vertical pull ≥120N (except 0.9mm optical cable)
Working temperature -20℃ to +70℃
Storage temperature -40℃to +85℃

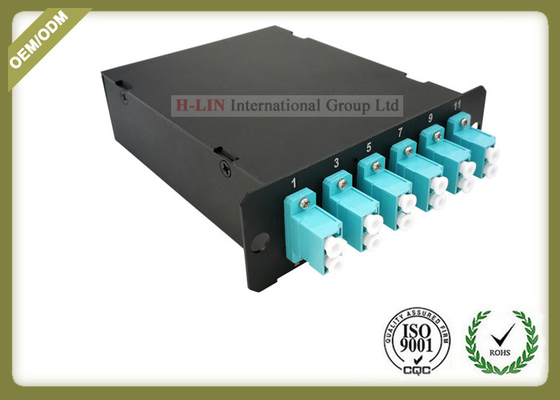

MPO - LC Cold - Roll Steel Fiber Optic Distribution Box 50 / 125 OM3 Load With Patch Panel

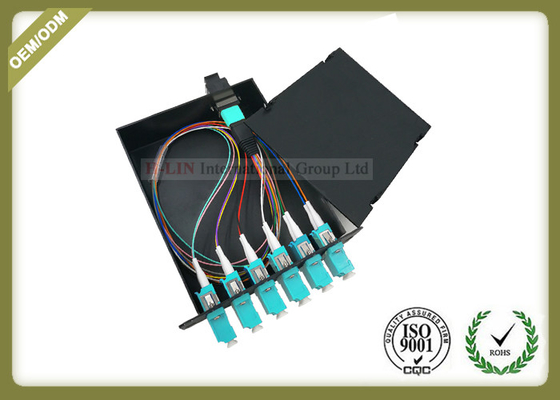

MPO - LC Cold - Roll Steel Fiber Optic Distribution Box 50 / 125 OM3 Load With Patch Panel

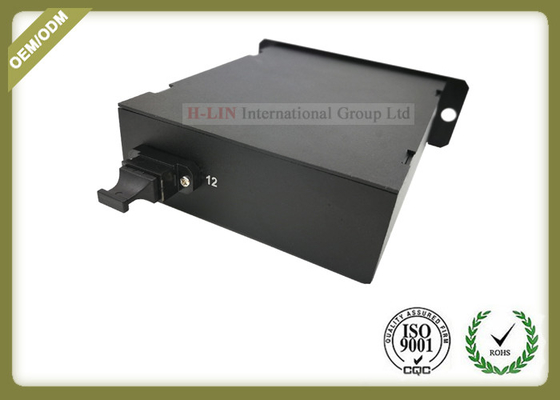

MPO - LC Cold - Roll Steel Fiber Optic Distribution Box 50 / 125 OM3 Load With Patch Panel
