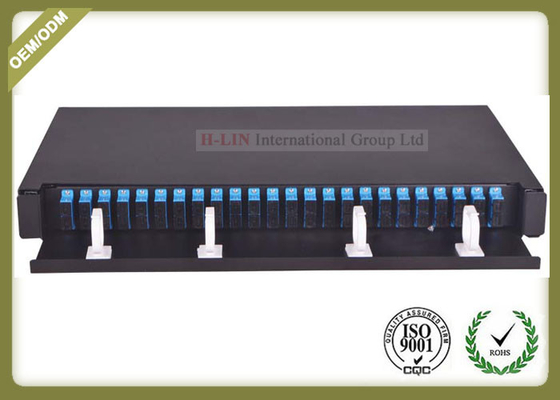

48 Core 1U Type Fiber Optic Patch Panel Slidable ODF For SC Adapter Port

China 48 Core 1U Type Fiber Optic Patch Panel Slidable ODF For SC Adapter Port supplier
48 Core 1U Type Fiber Optic Patch Panel Slidable ODF For SC Adapter Port supplier 48 Core 1U Type Fiber Optic Patch Panel Slidable ODF For SC Adapter Port supplier 48 Core 1U Type Fiber Optic Patch Panel Slidable ODF For SC Adapter Port supplier

Large Image :  48 Core 1U Type Fiber Optic Patch Panel Slidable ODF For SC Adapter Port

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-Lin
Certification: CE/FCC/ROHS
Model Number: HL-ODF=RS48C

Payment & Shipping Terms:

Minimum Order Quantity: 1pieces
Price: negotiable
Packaging Details: 1pcs a separate box , 5pcs a Carton
Delivery Time: 1week after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pieces/week
Contact Now
Detailed Product Description
Material: Cold-roll Steel Or Aluminum Color Painting: Black Or White
Fiber: 48 Weight: 5kg
Size: 480x310x43.5 Application: Telecom, FTTH, CATV, HFC Proje



48 Core 1U Type Fiber Optic Slidable Patch Panel Fiber ODF For SC adapter port







Description:





The optical fiber distribution frame (ODF) is used for the terminal and distribution of the main backbone optical fiber cables in the optical fiber communication system, and the connection, distribution and scheduling of the optical fiber lines can be conveniently realized. With the increasing degree of network integration, ODF, DDF and power distribution unit are presented. It is suitable for the small and medium distribution system of optical fiber to cell, fiber to building, remote module Bureau and wireless base station.



This type optic fiber distribution box is a locker designed for terminating, splicing and inter connecting fiber optic cable. 19” inch structure can be fitted in an existing optic fiber distribution frame to expand the capacity of fibers, inside with two piece of guide ways make it easy to installing and maintaining, the patch panel adopts modularization design, so can support SC, FC and LC.





Features:





1. 1.5mm steel sheet for strong housing

2. Slim 1 Unit Mounting Height

3. Ball bearing slid rails with positive stop

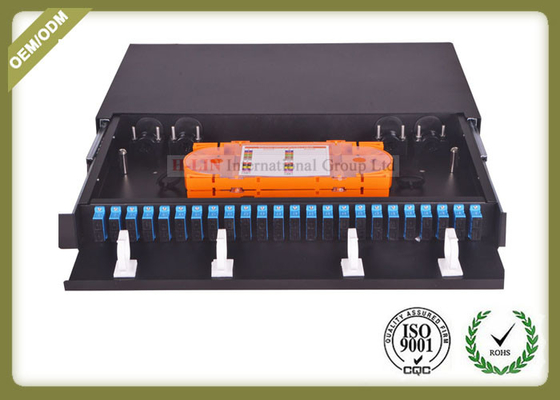

4. Sliding design is easy to work for patching the connectors

5. Hinged front panel is easy to be turned over & be fixed by snap-in locker

6. Front-mounted cable saddles for jumper management

7. Can manage both splices and terminations

8. Preassembled shelves in multiple configurations

9. Can includes adapter panels for up to 72 144SC terminations

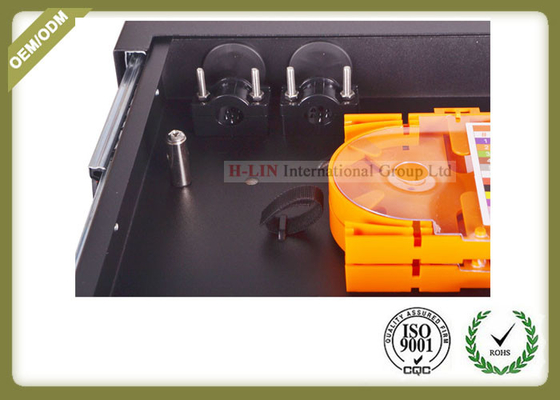

10. High density splice tray contains 24 fiber maximum in one tray

11. Clear plastic cover to protect the fibers.

12. 4 fiber saddles built-in for 900um tight buffered fiber winding & storing.

13. Capable of storing up to 3 meters of 900 μm tight buffered fiber per adapter

14. Snap-in locker design, easy to change adapter panels for various connector patching

15. Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up

16. Accessory kit consists of cable ties, mounting ear screws, and spiral wrap tube



24 port 48 core 1U fixed fiber wiring frame, this type is full with LC/UPC single mode 0.9 fiber tails, sheet metal thickness is: 1.0~1.2, this type of product can be customized according to customer requirements, non quality reasons do not accept return goods, specific relatives can contact online customer service or call us telephone for pre order consultation, true We look forward to your call. We will help you complete the order with the best quality service and the most professional technical support.



Application:



1, Telecommunications subscriber loop



2, Fiber to the home (FTTH)



3, LAN/ WAN



4, CATV







Product Name Sliding drawer 48core ODF
Fiber Type SC(FC,ST,LC for option)
Type rack mount
Application FTTH ,Date center
Fiber core 48 1U
Size 480x310x43.5
Weight 5kg



48 Core 1U Type Fiber Optic Patch Panel Slidable ODF For SC Adapter Port
