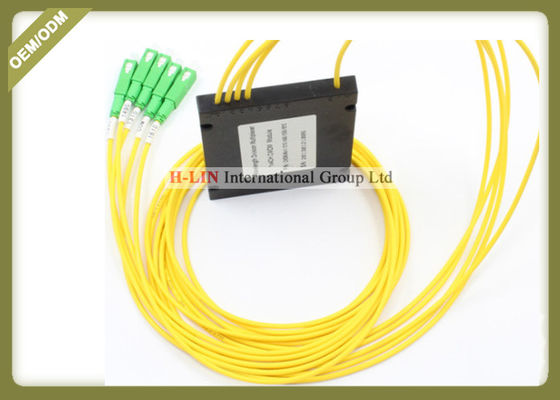

1610nm Wavelength Division Multiplexer 4 Channel Fiber Optic CWDM With SC APC Connector

China 1610nm Wavelength Division Multiplexer 4 Channel Fiber Optic CWDM With SC APC Connector supplier
1610nm Wavelength Division Multiplexer 4 Channel Fiber Optic CWDM With SC APC Connector supplier 1610nm Wavelength Division Multiplexer 4 Channel Fiber Optic CWDM With SC APC Connector supplier

Large Image :  1610nm Wavelength Division Multiplexer 4 Channel Fiber Optic CWDM With SC APC Connector

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: HL-1*4 PLC Steel tube

Payment & Shipping Terms:

Minimum Order Quantity: 2 Piece/Pieces
Price: negotiable
Packaging Details: 1pcs per plastic bag,1pcs per paper bag
Delivery Time: 3~5 working days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Splitter Packing: Stainless Steel Tube Tube Type: Φ0.9mm,
Connector: SC/APC Operating Temperature (℃): -40~85
Length: 1~2meter Fiber Type: G657A

Module 1270-1610nm Wavelength Division Multiplexer 4 Channel Fiber Optic CWDM with SC APC connector



ABS Package 1 to 4 Channel CWDM Module with 1270~1610nm Wavelength





Description:



1X4CWDM (Coarse Wavelength Division Multiplexing) is one of the four channel coarse wavelength division multiplexers in multichannel wavelength division multiplexers. The four channel CWDM has a common terminal (Common) and four output terminals. The wavelength of the four output ends can be customized according to the actual needs of the customer. It is selected from each interval of 20nm in the bandwidth window of the 1270~1610nm, and a total of four of the 18 wavelengths can be selected. The company has its own broadband light source, so it can test any wavelength in 1270~1610nm. The four channel coarse wavelength division multiplexer usually uses ABS box package, and the CWDM device is encapsulated in the ABS black box. The way of out fiber can be 0.9mm loose casing, 2.0mm loose casing and 3.0mm loose casing, which is custom-made by the customer. The three way of fiber discharge is to wear the corresponding wavelength mark ring on each optical cable for use. Of course, if CWDM adds a connector, this is also entirely specified by the customer. Compared with DWDM devices, CWDM has the characteristics of low cost, low power consumption, small volume and flexible networking mode, which makes the CWDM system widely used. We can provide a variety of custom-made CWDM. The devices of our company have been tested at a minimum of 24 hours and low temperature cycles and the corresponding drop test. The products meet the GR-1221-CORE and GR-1209-CORE related specifications, and the product has a very good stability.





Features


Good working bandwidth

Optical fiber communication system.

Low loss

Optical instruments

High channel isolation




Application


Optical amplifier

High stability and high reliability

Transmission and fiber laser

Optical path free process

System monitoring procedures



Parameters Indicators unit
Output port wavelength Customerized:1270~1610 nm
Transmission channel wavelength Customerized:1270~1610 nm
Reflection channel wavelength Customerized:1270~1610 nm
IL Transmission channel <0.60 dB
Reflection channel <0.60 dB
Insertion loss Thermal Stability Transmission channel ≤0.30 dB
Reflection channel ≤0.30 dB
Isolation Transmission channel ≥40 dB
Reflection channel ≥30 dB
RL >50 dB
Temperature sensitivity <0.005 dB/℃
Polarization dependent loss <0.10 dB
Polarization mode despension <0.10 Ps
Directionality ≥50 dB
Power handling 300 mW
working temperature -20~+70 °C
Storage temperature -40~+85 °C
Fiber SMF-28e
Fiber type 250um/900um/2.0mm/3.0mm
Package dimensions 1x4 Normal:100x80x10 (ABS black box packaged) mm



All parameters aboved are for CWDM only,without connectors.



Other wavelength can be customerzied



Order Information:



Configuration Channel No. Channel Pigtail Type Fiber length Dimensio(mm) Connector
M=Mux D=Demux 04=4 Channel
08=8 Channel
16=16 Channel

N=N Channel
……
27=1270nm
47=1470nm
49=1490nm
……
61=1610nm
SS=special…
0=250um
1=900um
2=2.0mm
3=3.0mm
1=1m
2=1.5m
3=others
1=L100 x W80 xH10
2=L120xW80xH18
3=19 1U Rack
0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=other







Package:





1610nm Wavelength Division Multiplexer 4 Channel Fiber Optic CWDM With SC APC Connector
