Payment & Shipping Terms:
|Number Of Core:||1/2/4||Strength Member Material:||Steel Wire|
|Jacket Material:||LSZH Or PVC||Sheath Color:||Black/white/customized|
|Fiber Type:||SM||Application:||Indoor Wiring/building Introduction|

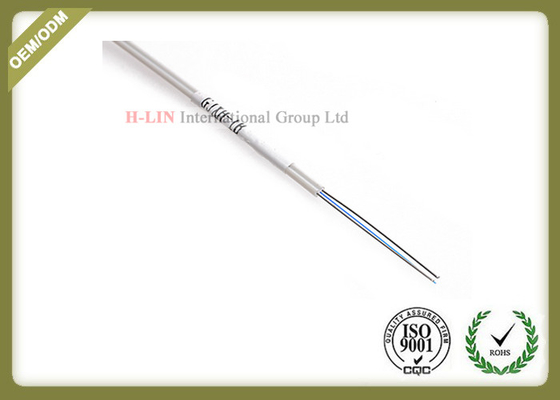

1 core Steel Wire Indoor GJXH FTTH Fiber Optic Cable
GJXH Fiber Optic Cable is one of the most useful types of the fiber cables. This type of fiber cable has been widely used as accessing cable in a building. Consequently, the GJXH Fiber Optic Cable is also used in indoor cabling particularly for FTTH. Additionally, GJXH Fiber Optic Cable has a simple structure. Most of the technicians like GJXH Fiber Optic Cable due to its lightness and that make it portable everywhere. Also, the GJXH Fiber Optic Cable is highly recommended by professional technicians due to its simplicity to install.

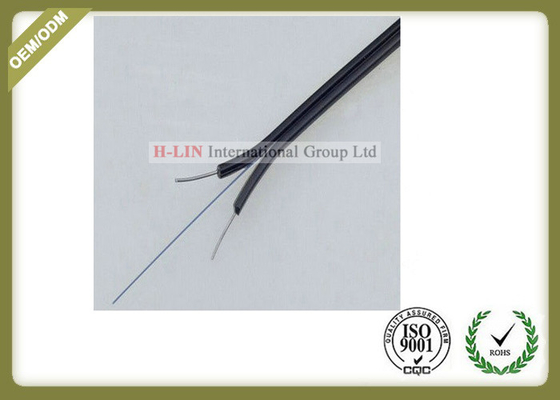

The optical fiber unit is positioned in the central. Two parallel fiber reinforced steel wire are placed at the two sides. Then, the cable is completed with a black(white...) color LSZH or PVC sheath.
1. Simple structure, lightweight and high tensile strength
2. Special groove design, easily strip and splice, simplified installation and maintenance
3. Two parallel steel wires strength members ensure tensile strength
4. Crush resistance and flexibility
5. Low smoke zero halogen and flame retardant sheath, environment-friendly and good security(PVC is also can be made)
The installation way of GJXH Fiber Optic Cable is considered to be indoor and therefore, it makes the cable most suitable to be used for local communication. Nevertheless, GJXH Fiber Optic Cable is the best known cable to efficiently access building cables. On top of that, the GJXH Fiber Optic Cable is the most suitable cable for the digital signal transmission. In reality, the GJXH Fiber Optic Cable has changed the real face of the fiber cable industry completed.
|Strength member||Material||Steel Wire|
|Operating Temperature Range(℃)||—40~+70|
|Tensile Strength Short/Long Term(N)||200/100|
|Crush Resistance Short/Long Term(N/100mm)||1000/500|
*The color arrangement of fiber is specified in the color identification table
*Other structure and fiber count are also available according to customer requirements
Used for indoor wiring
The end user with cable directly
Building into the cable
Structure of GJXH
