3.0 * 2.0mm Diameter FTTH Fiber Optic Cable , Fiber Optic Drop Cable With LSZH Jacket

China 3.0 * 2.0mm Diameter FTTH Fiber Optic Cable , Fiber Optic Drop Cable With LSZH Jacket supplier
3.0 * 2.0mm Diameter FTTH Fiber Optic Cable , Fiber Optic Drop Cable With LSZH Jacket supplier 3.0 * 2.0mm Diameter FTTH Fiber Optic Cable , Fiber Optic Drop Cable With LSZH Jacket supplier

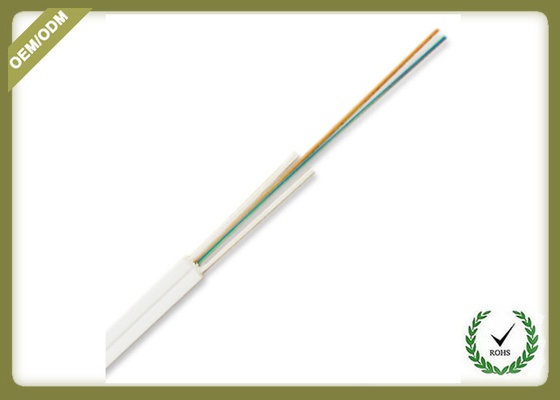

Large Image :  3.0 * 2.0mm Diameter FTTH Fiber Optic Cable , Fiber Optic Drop Cable With LSZH Jacket

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE,Rohs
Model Number: FTTH-GJXFH(1)

Payment & Shipping Terms:

Minimum Order Quantity: 2km
Price: negotiable
Packaging Details: 1km/reel,or 2km a reel,
Delivery Time: 3-5Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Kilometer/Kilometers per Day
Contact Now
Detailed Product Description
Core Number: 2 Jacket: PVC Or LSZH
Mode: Single Mode Fiber: G652B,G652D Or G657A
Steel Messenger: FRP Or Steel Wire Certification: CE/ISO/ROHS
Diameter: 3.0*2.0mm Temperature: -20 Degree-+ 70 Degree

Indoor 2core fiber optic drop cable with messenger steel wire or FRP strength member





Description



The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.then the cable is completed with white LSZH sheath





Characteristics



1 · Small bending radius, flexible performance can meet the requirement of FTTH

2·  Adopt the fiber core excellent than ITU G.657 standard

3  Groove design of 8 type, easy to rip, install and maintain

3· Strength member at both side use as metal or FRP,outer jacket is PVC or LSZH

4· Small diameter, light weight and high practicability;

5: Fiber cores can be 1~12core,as client's request





Product Description


FTTH (Fiber to The Home) is a kind of transmission cable used to connect directly to a home user or a business user. With no limits to its bandwidth, wavelength and transmission technology and being suitable for the application of various new services, FTTH cable is the best solution for the connection between the internet backbone to the user’s desktop.


Purchasing Risk



Many domestic small factories modified electric-wires equipment to produce FTTH cable. They used unqualified fibers which is with very cheap price 3USD/KM to imitate G657 bend-resistant fiber, waste electric-wires and rubber slippers smashed as pvc raw material for the LSZH outer sheath. Those inferior cables will cause many problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack of the cable jacket in several months, etc.







Application:



No weak current space, no extra space, non suspended ceiling area, from wire distribution cabinet to floor termination box,FTTH , reconstruction of old buildings







Product production:



A-level optical fiber is fast and stable, with long transmission distance, uniform thickness and good flexibility of optical fiber. New sheath material, smooth appearance, flame retardant, anti-corrosion, new LSZH material, using FRP material reinforcement, corrosion resistance, high strength.





Super flexural optical fibers provide greater broadband and enhance network transmission characteristics. Easy to achieve 100M/S







Specification:



Fiber count

Cable Diameter

(mm)

Cable Weight (kg/km)

Tensile (N)

Long/ Short term

Crush (N/100mm)

Long/ Short term

Min. Bend Radius (mm)

Dynamic/ Static

1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
2 (2.0±0.2)×(3.0±0.2) 8.5 30/60 300/1000 15/30
4 (2.0±0.2)×(3.8±0.2) 9 30/60 300/1000 15/30
6 (2.0±0.2)×(3.8±0.2) 9.5 30/60 300/1000 15/30
8 (2.0±0.2)×(4.8±0.2) 13 30/60 300/1000 15/30
12 (2.0±0.2)×(5.8±0.2) 16 40/80 400/1200 15/30

Note: Range of temperature: -30~+70°C

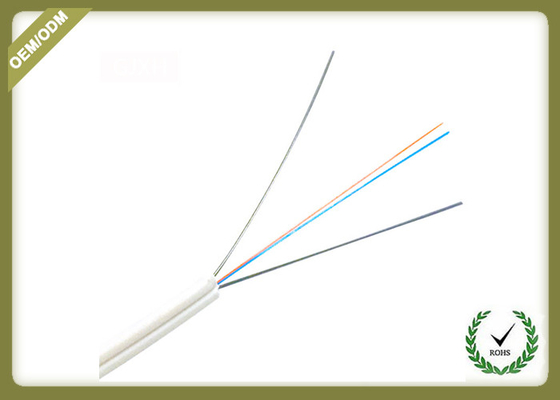

Cable construction details





3.0 * 2.0mm Diameter FTTH Fiber Optic Cable , Fiber Optic Drop Cable With LSZH Jacket








Packing:




3.0 * 2.0mm Diameter FTTH Fiber Optic Cable , Fiber Optic Drop Cable With LSZH Jacket
